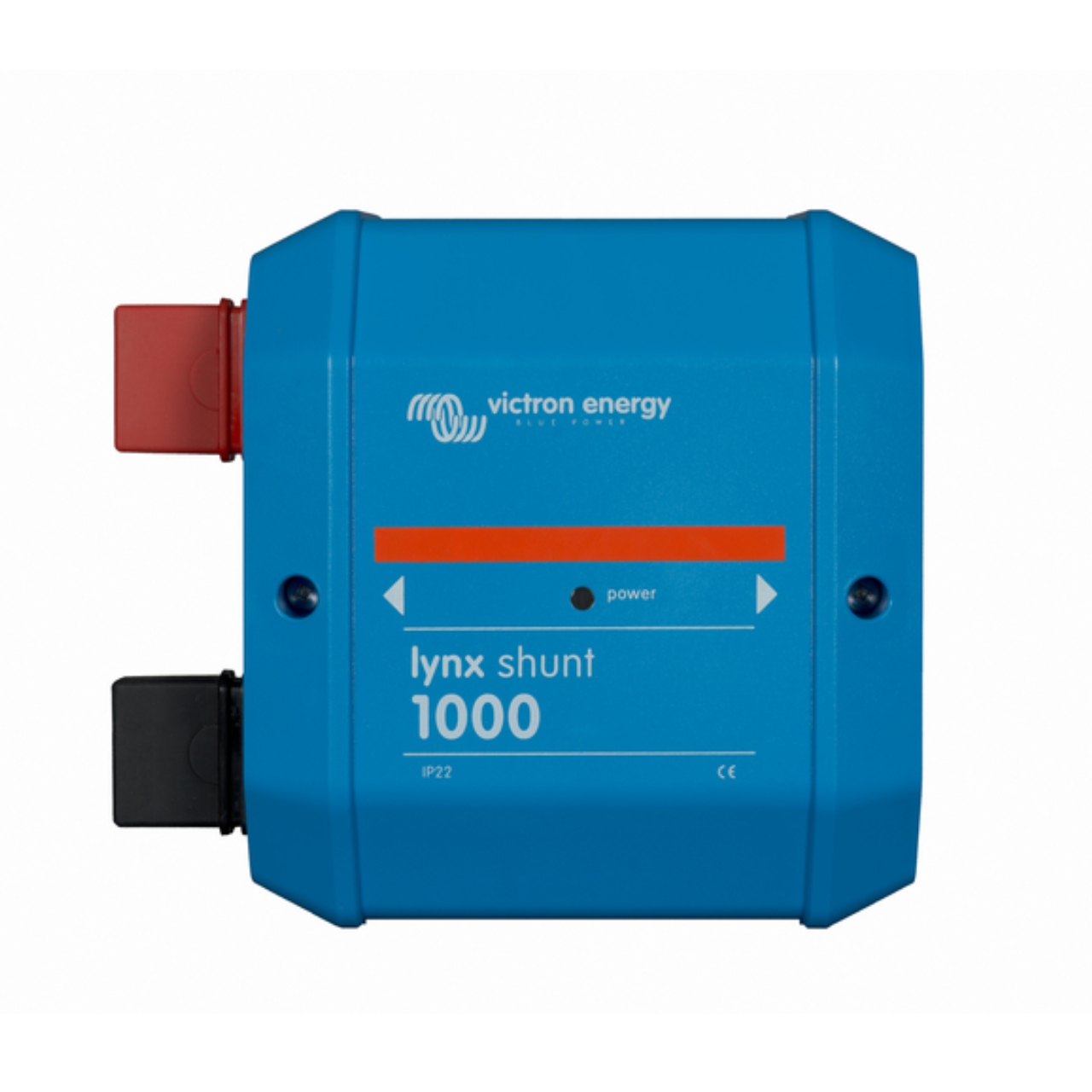

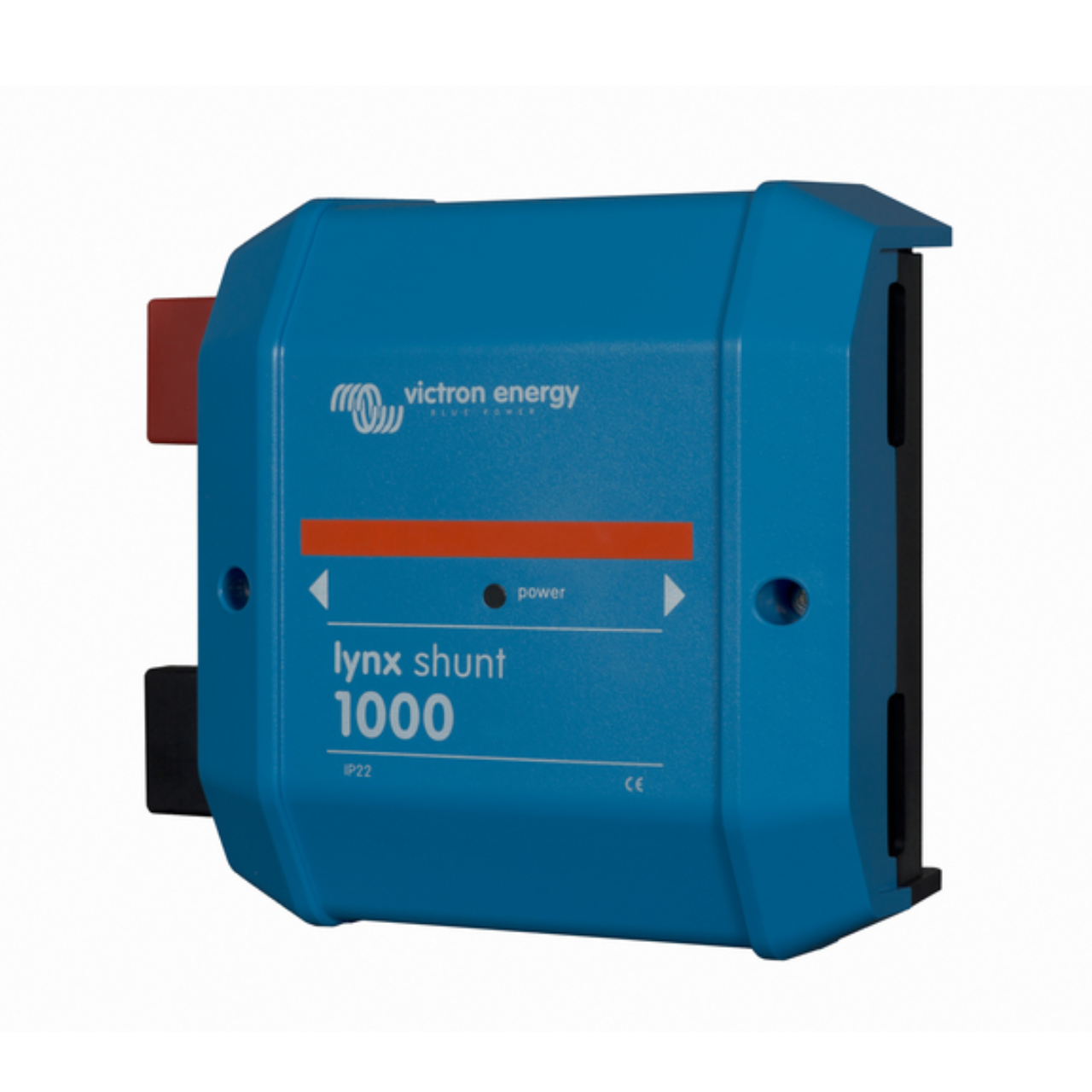

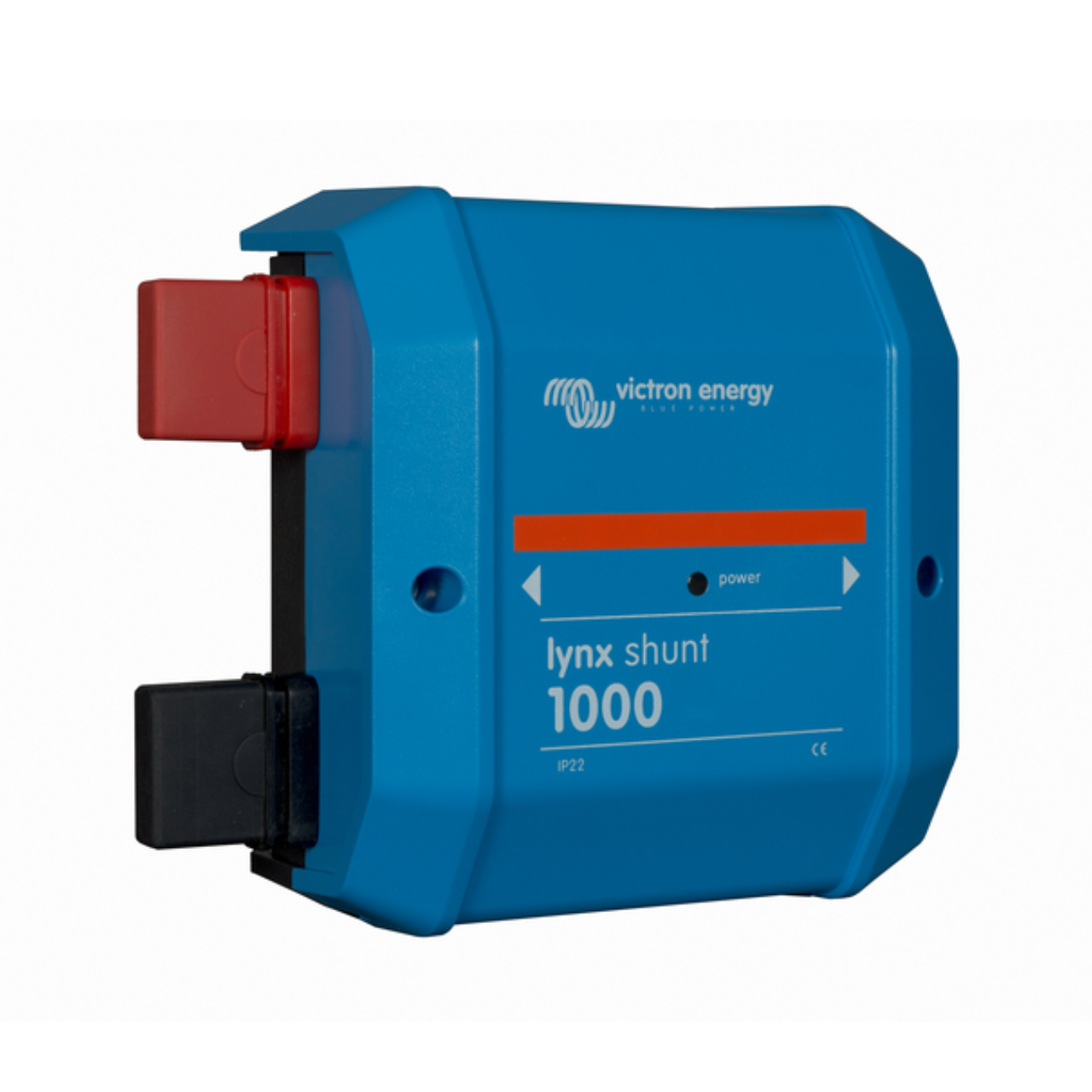

The Lynx Shunt VE.Can is an intelligent 1000A shunt with location for a fuse (not included), the built-in battery monitor accurately monitors the state of charge of your battery. Use a GX device (e.g. Cerbo GX) for reading out the information. Part of the modular Lynx distribution system.

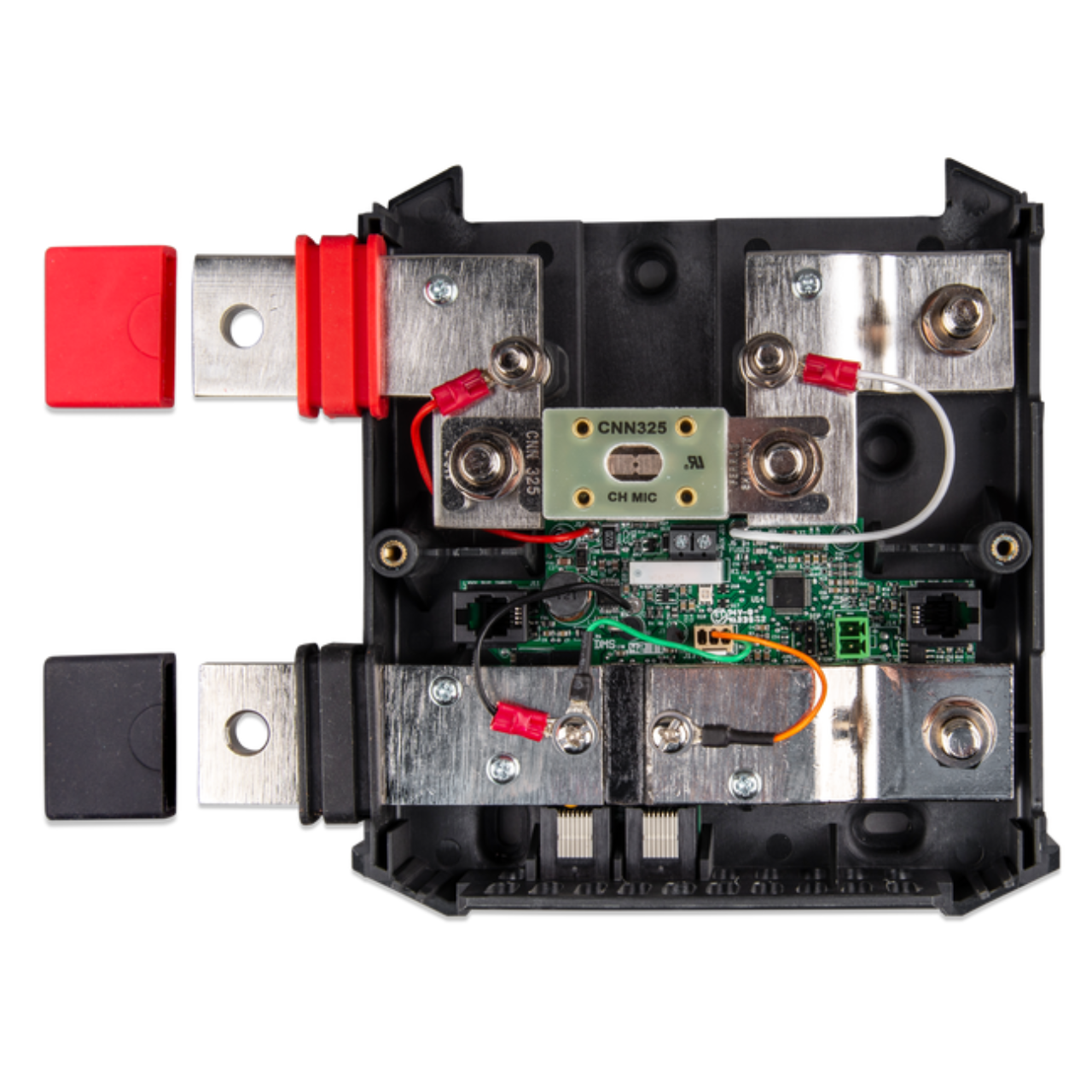

This unit now has M10 connection posts. Earlier models contained M8 posts. New M10 model also now includes Fuse Dummy Busbar for use when omitting optional CNN-type 325A/80V fuse, available separately. Other size fuses are available via special order. Call for details. The use of fuse or dummy busbar is highly recommended. (Use of this product without proper fusing may void warranty and create a safety hazard).
Victron Energy is one of the top manufacturers of renewable energy systems, and enjoys an unrivalled reputation for technical innovation, reliability and quality. They have served the off-grid, industrial and vehicle markets as well as both the commercial and leisure marine sectors for over 45 years.
Rated Nominal Current: 1000A
Operating Voltage Range: 9-70Vdc
M10 Connection Posts with nut and lock washer
Power Consumption 60mA@12V, 33mA@24V, 20mA@48V
Reverse polarity protection: NO
Five year limited warranty.
Unit Weight – 3 lb
Enclosure dimensions – 7.5″ H x 7″ W x 3.15″ D
