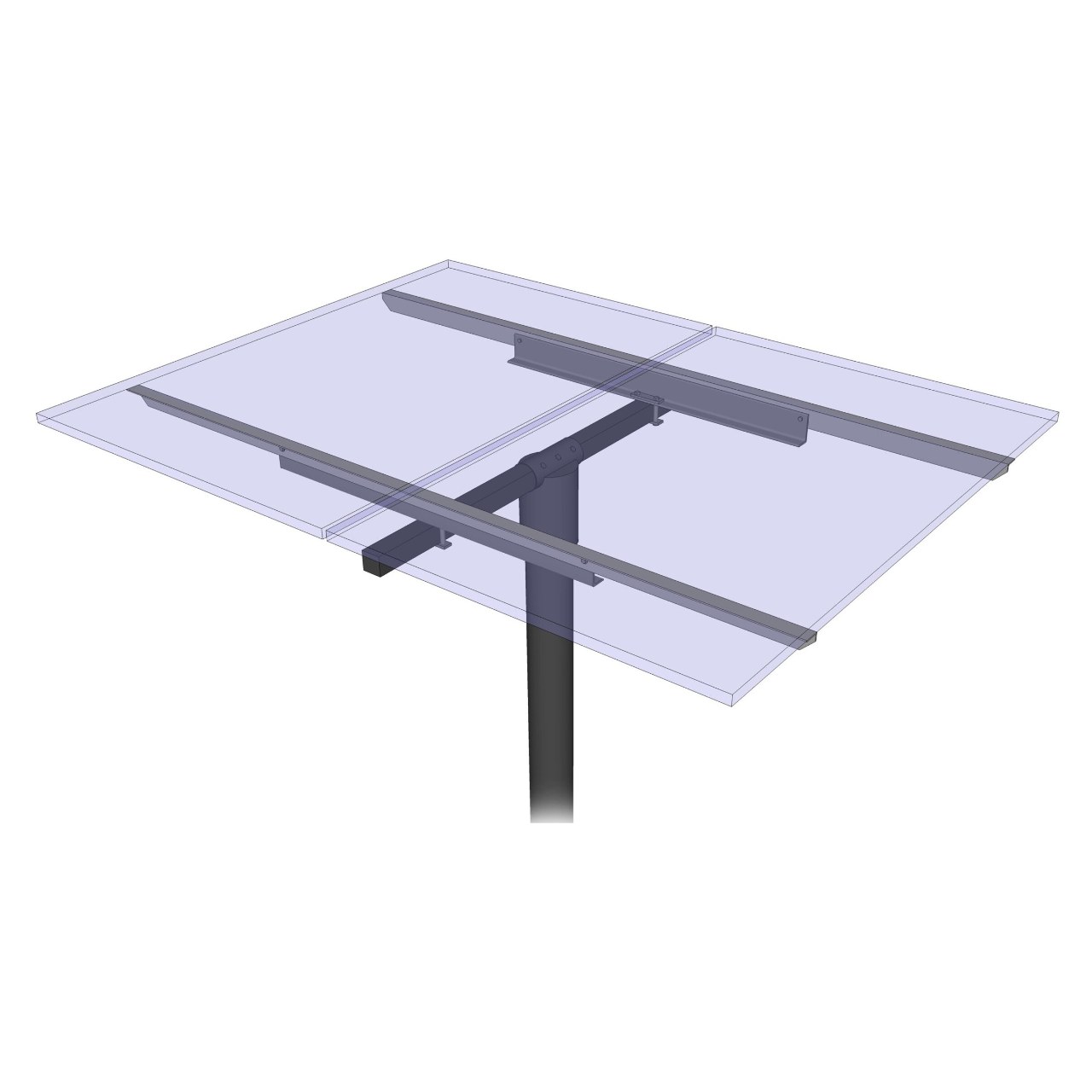

The General Specialties UPM-4X-D Universal Post Mount is the heavy-duty “D” version of the UPM-4X, designed for larger 72-cell solar modules measuring approximately 77 in. long x 39 in. wide.
The UPM-4X-D is designed to accommodate two modules of this size.
The mount features a heavy-duty frame designed to hold large solar modules securely while allowing the array angle to be adjusted for seasonal sun angles.
Designed for Two Large Solar Modules: Accommodates two large 72-cell solar modules.
Large-Module Compatibility: Designed for modules measuring approximately 77 in. long x 39 in. wide.
Seasonally Adjustable: Allows the array tilt to be changed for seasonal sun angles.
Stainless Steel Module Hardware Included: Stainless steel nuts and bolts are supplied for attaching compatible solar modules.
Heavy-Duty Assembly Hardware: Includes Grade 5 and Grade 8 hardware for mount assembly.
Made in the USA: Manufactured in the United States by General Specialties.
Model: UPM-4X-D
Module Capacity: 2 Large 72-Cell Solar Modules
Approximate Module Size: 77 in. x 39 in.
Required Vertical Base Pipe: 4 in. Schedule 40 or Schedule 80 Pipe
Vertical base pipe is not included and must be obtained locally.
Contact Backwoods Solar for assistance with proper pipe sizing, module compatibility, and system configuration before installation.
Detailed illustrated assembly instructions are available online. General Specialties product and installation videos are also available online.
Warranty: 10-Year Warranty
