TriStar 60 Charge Control
Regular price
$293.00
Ready to work out of the box!
Need us to pre-program a product before shipping? Ask about our programming service.
Got questions?
Feel free to get in touch
Ask an expert!
Three Stage, PWM, charge controller for 12, 24, and 48 volt systems

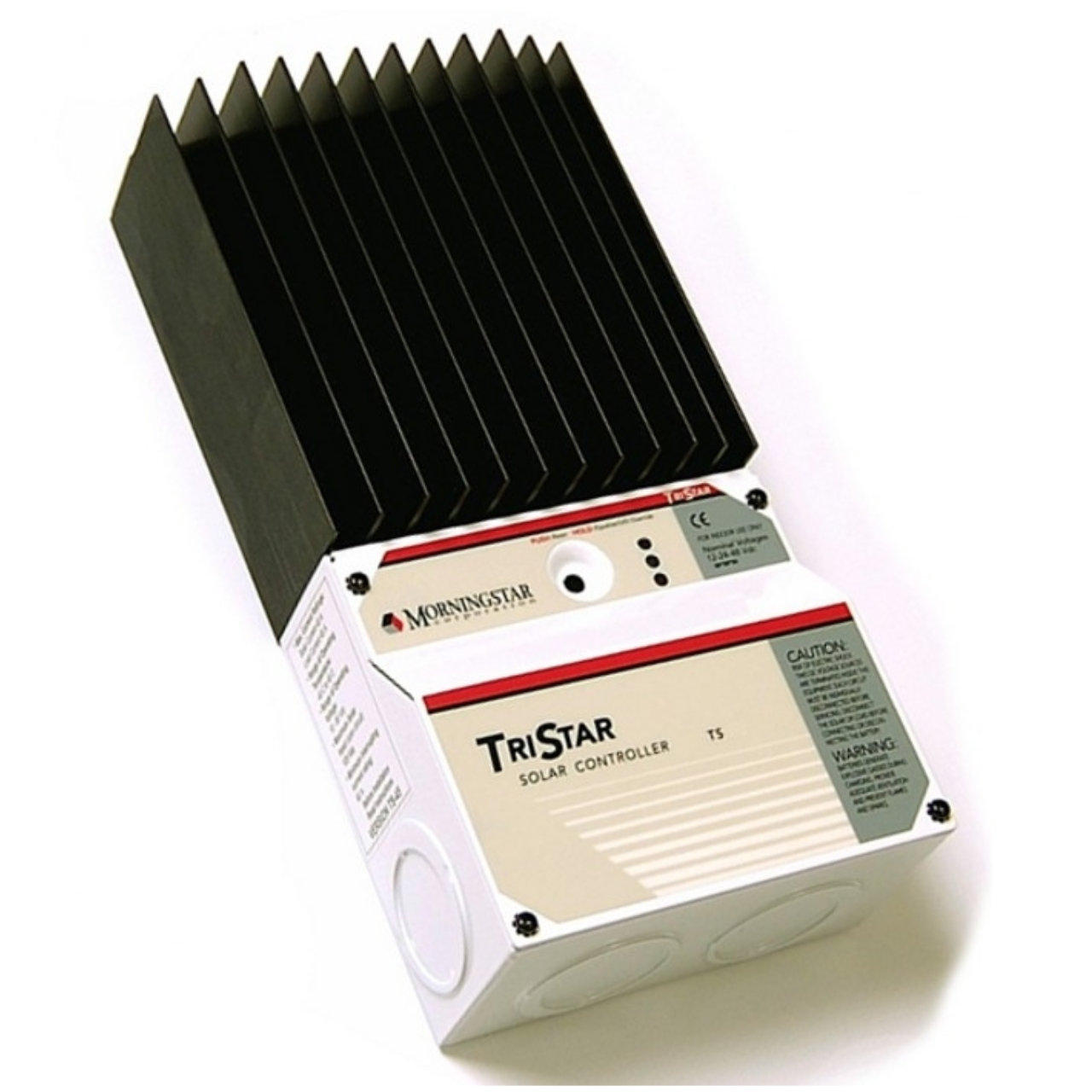

Morningstar’s TriStar Controller is a three-stage controller that provides reliable solar battery charging, load control, or diversion regulation. The controller operates in one of these modes at a time and two or more controllers may be used to provide multiple functions. The Controller is UL listed and has a 5 year warranty.
10.3" x 5.0" x 2.8"
3.5 lbs
Key Features and Benefits
- Large heat sink and conservative design enables operating at full ratings to 45°C. No need to de-rate.
- RS-232 port provides optional connection to a personal computer for custom settings, data logging, and remote monitoring and control.
- DIP switch provides quick configuration setup, and custom settings via RS-232.
- Fully protected against reverse polarity, short circuit, overcurrent, high temperature, and overvoltage.
- Terminals accept up to 2 gauge wire.
- Connecting optional battery sense wires and remote temperature sensor will improve control accuracy. Constant voltage series PWM algorithm increases battery capacity and life.

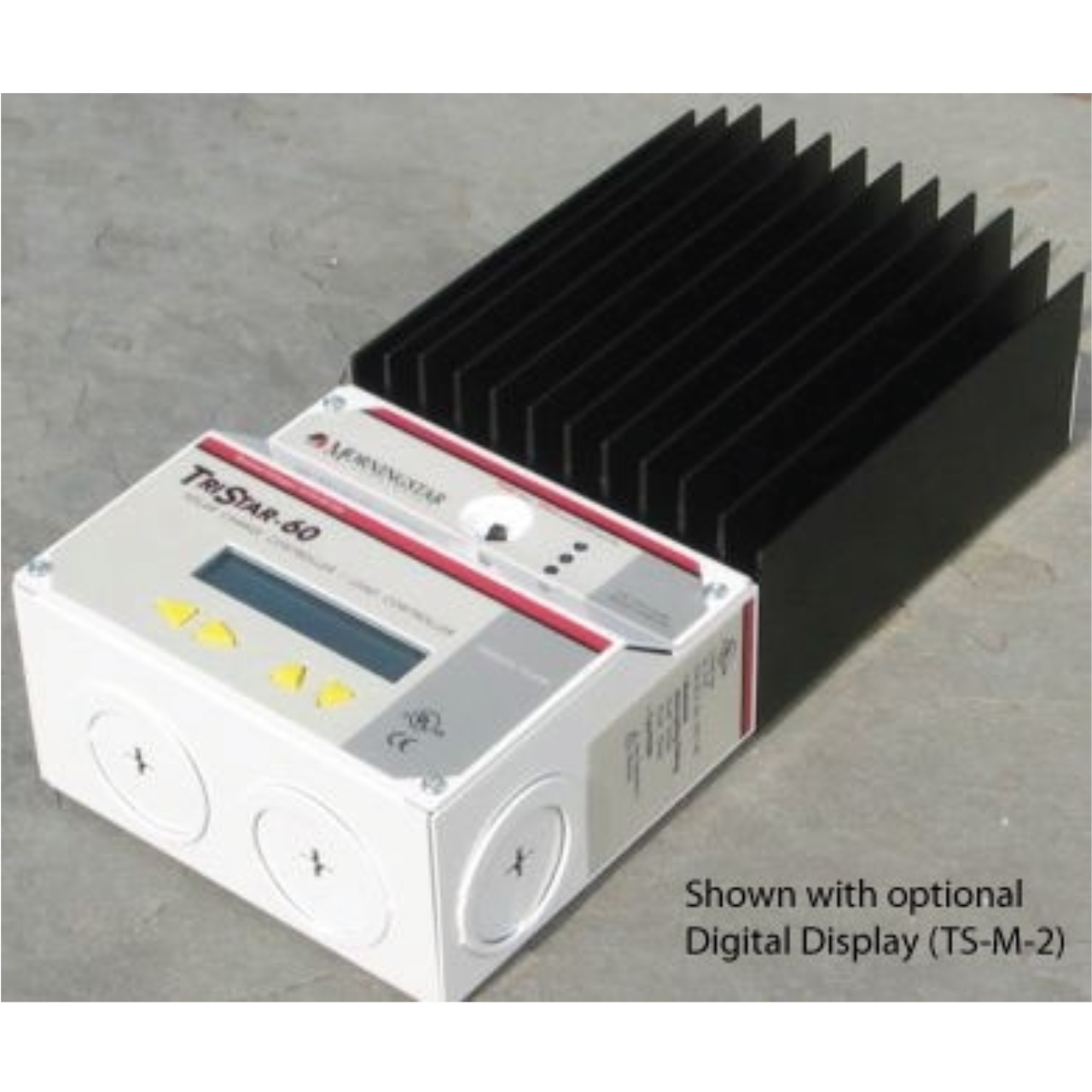

- 3 LED’s to indicate status, faults and alarms. Optional meter displays extensive system and controller information, automatic self-test and reset capabilities. Meter connection via RJ-11 phone jack.
- Pushbutton provides manual reset and stop/start battery equalization or load disconnect.
