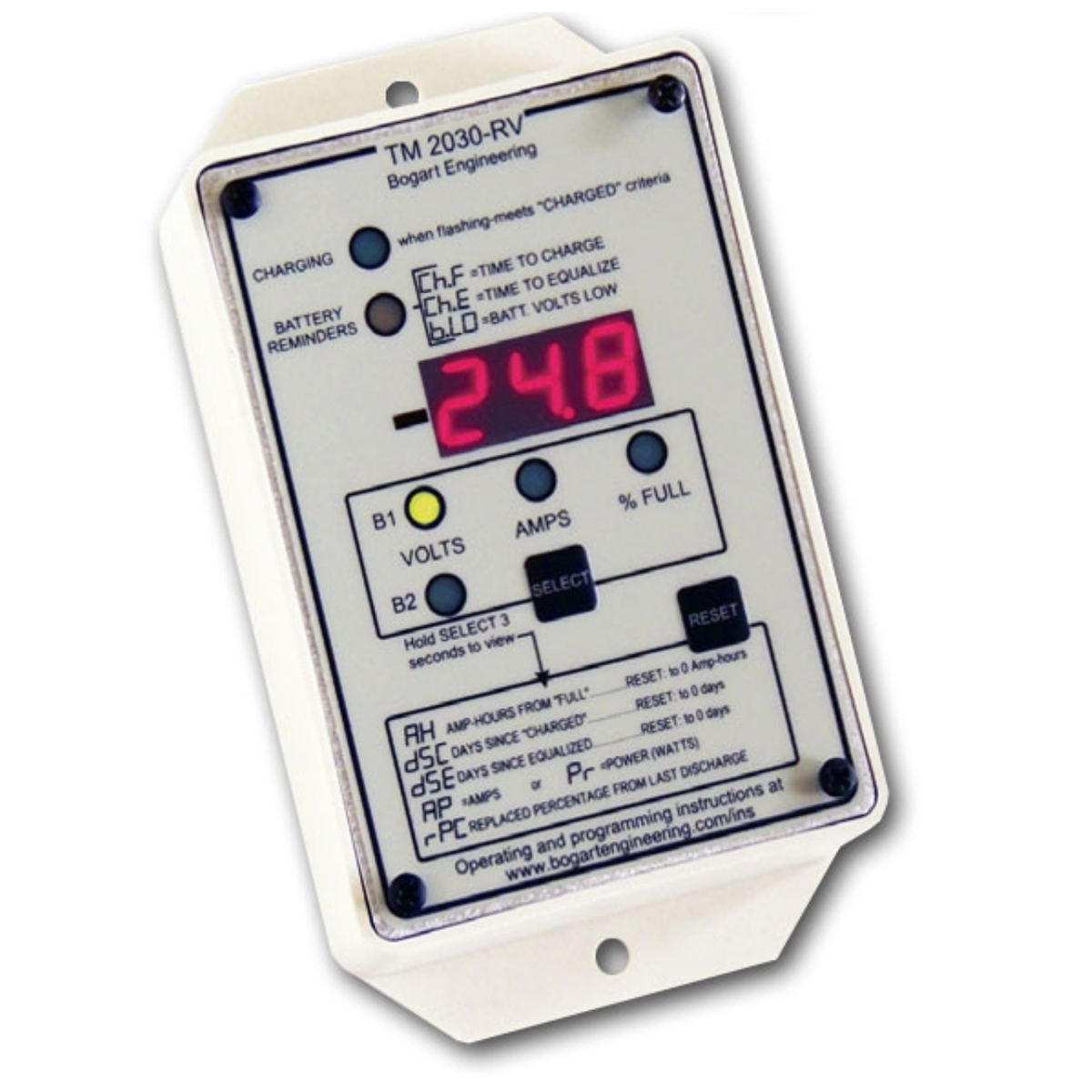

Trimetric 2030-RV with Wi-Fi Unit

Keep an eye on your batteries from your smartphone, tablet, laptop, or desktop. The Trimetric 2030-RV is available with a Wi-Fi module that provides wireless access to battery information, solar charging data, and configuration parameters using Wi-Fi technology.

Backwoods Solar recommends using Wi-Fi Access Point (AP) mode for communication. Station mode requires programming that most users may find difficult and can result in data loss or loss of functionality.

• Connects to the TM-2030 battery monitor and the SC-2030, if installed
• Longer range than Bluetooth-type devices
• No special app or software needed
• Use any Wi-Fi-equipped device and your favorite browser to access battery information and edit configuration parameters

The Tri-Metric 2030-RV keeps a running total of power going into or out of your battery and displays the present level of charge. Referred to as a "net meter," the Tri-Metric is one of the most comprehensive displays a battery management system can utilize.

The meter head mounts anywhere in the vehicle or trailer for easy checking. Small wires run from the meter to a shunt near the battery. Note: These small wires should not run parallel to any AC wiring.

This RV version of the Trimetric has all the same functionality as the A version, but in a smaller package with its own mounting enclosure included.

The Tri-Metric Meter Reads:

• VOLTS: The Tri-Metric can monitor two battery banks, with voltage being the only parameter read on the second bank. Accurate to 1/10 volt. For 12-, 24-, or 48-volt systems.
• AMPS or WATTS: Displays the rate of energy going into or out of your batteries so you can monitor your charging system and energy consumption.
• AMP-HOURS: Displays your battery's state of charge in amp-hours.
• % FULL: Provides a quick indication of battery state of charge.

Advanced Functions

The Tri-Metric also provides several advanced monitoring functions, including:

• Flashing alarm to remind you when the battery needs charging or equalizing
• Days elapsed since the last full charge
• Amp-hours cycled since the last full charge
• Total amp-hours cycled since the battery was new
• Lowest and highest voltage recorded since reset
• Daily data logging for the previous five days, including maximum battery voltage and minimum charging amps to help verify proper charging levels

Visit Bogart Engineering for more details.

If installing the meter where there is no "power panel," consider the Trimetric Wiring Kit, which includes a 500A shunt, 2/0 lug with wrench, shunt cable, and 25 feet of 4-conductor tri-wire. Sold separately.

Dimensions:
Meter: 5 1/4" x 3 1/8" x 1 3/8"
Wi-Fi Module: 4" x 2 3/8" x 1"

Weight: 1 lb.
Warranty: One year
