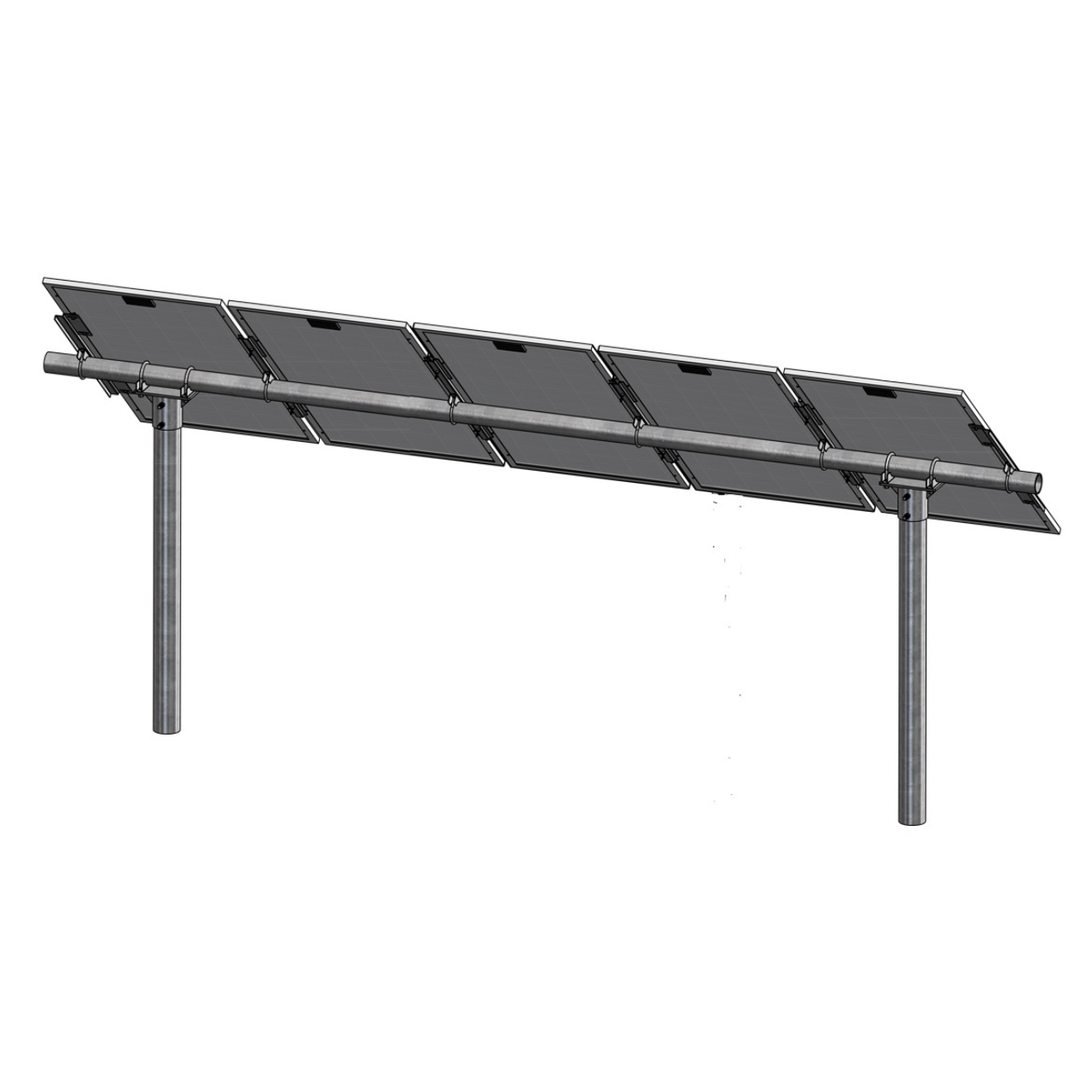

Tamarack Top of Pole Mount for 5 modules 38"-72", 2 Posts

Tamarack Top of Pole Mount for 5 modules 38"-72", on 2 posts, in portrait orientation. This product ships directly from the Manufacturer. A short lead time may apply. Call for details. This popular PGRM Mount is designed for mounting five solar modules in portrait orientation on two posts. Engineered for tilt angles ranging from 10° to 60° and allows easy seasonal adjustability. Clamp attachment uses the lip on the back of module frame and accommodates frame thickness between 1.18-inches and 2-inches. See data sheet for more information. Heavy duty construction, suitable for wind speed up to 150MPH and snow load up 100PSF. Simple one-person installation and tilt angle adjustments. Requires locally sourced 4? schedule 40 steel pipe (4.5? OD) for the vertical poles, and 3? schedule 40 steel pipe (3.5? OD) for horizontal beam. Currently ships UPS in three boxes. Box 1: 36 x 8 x 8 at 43lbs.  Box 2: 10 x 9 x 7 at 13lbs. Box 3: 10 x 9 x 7 at 13lbs. 10 year warranty by Tamarack.
