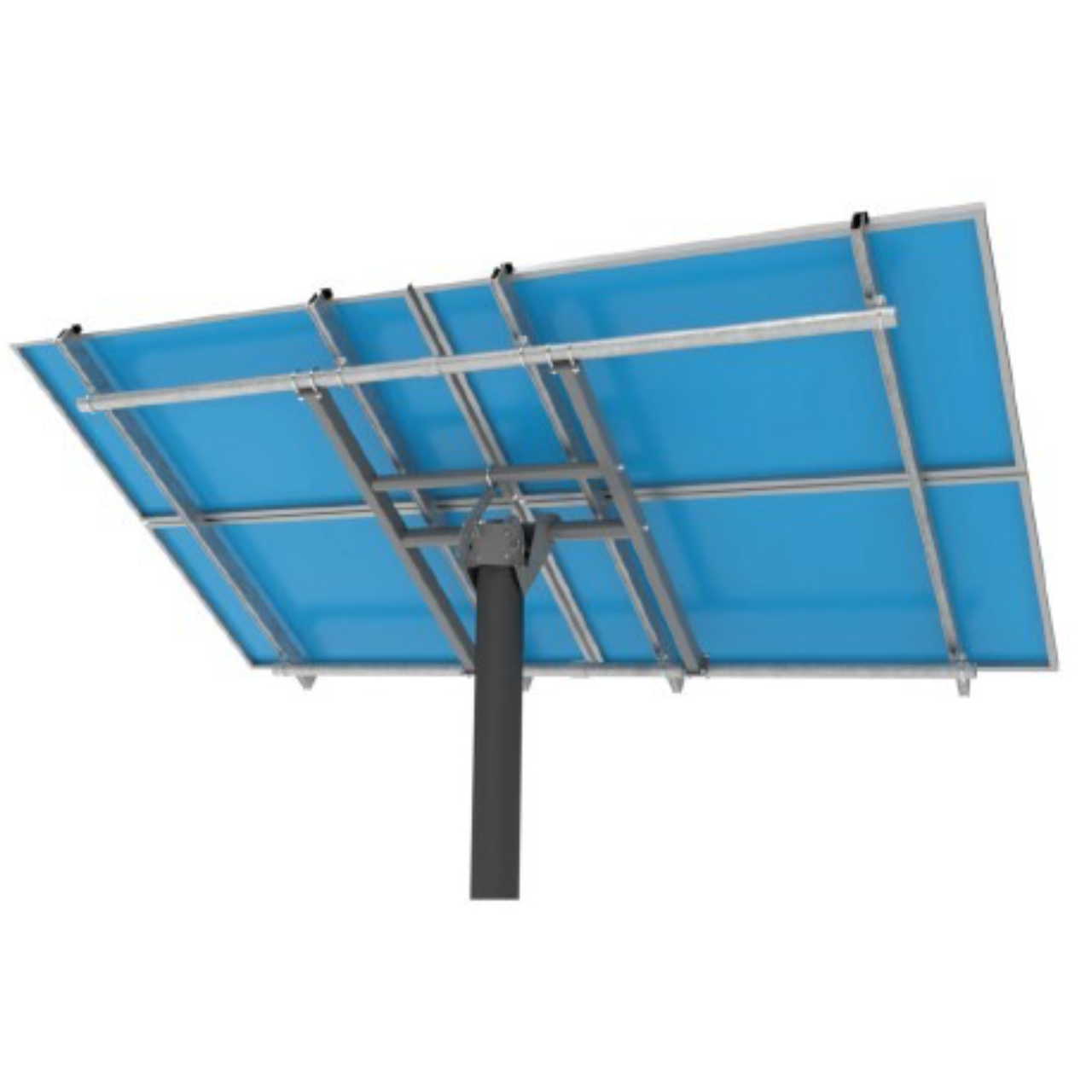

Tamarack Top of Pole Mount, 4 modules up to 45.5" Wide. Landscape Orientation.
Tamarack Solar Products TTPA series mounts are for installing modules on top of a pole in landscape orientation. The TPPA-4-93 is to for four modules up to 45.5 inches wide with frames 30 to 40 mm deep, installing on top of a 6" diameter schedule 40 or schedule 80 steel post (purchased locally). The TTPA-4 additionally requires 2 sections of schedule-40 pipe (purchased locally or order Pipe Kits).
Mounts are engineered as-is for 160 mph winds and 200 psf snow load.Tilt angle: 10 to 60 degrees Ships in four boxes: 17 x 15 x 9 at 27lbs; 37 x 6 x 6 at 43lbs; 63 x 8 x 5 at 75lbs; 95 x 8 x 5 at 36 lbs. 3 year warranty on finish/10 year warranty on workmanship Ships via UPS
