Tamarack Top of Pole Mount for 4 modules 38"-72"

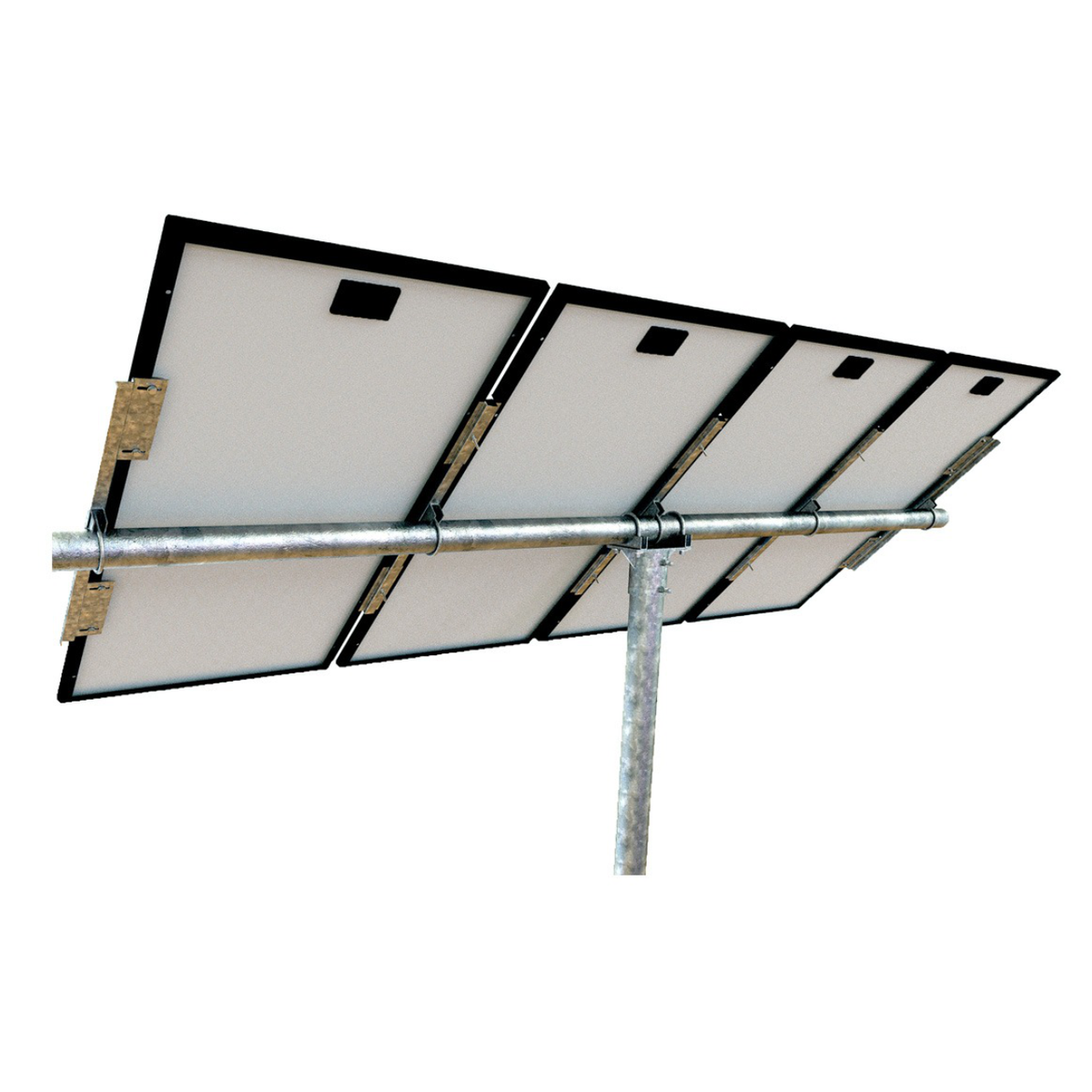

Tamarack Top of Pole Mount for 4 modules 38"-72" long, on one post, in portrait orientation. This product ships directly from the Manufacturer. A short lead time may apply. Call for details. This popular PGRM Mount is designed for mounting four solar modules per mount, on a single post, in portrait orientation. Engineered for tilt angles ranging from 10° to 60° and allows easy seasonal adjustability. Clamp attachment uses the lip on the back of module frame and accommodates frame thickness between 1.18-inches and 2-inches. See data sheet for more information. Heavy duty construction, suitable for wind speed up to 150MPH and snow load up to 20PSF on a single pole (100PSF snow load with additional support pole). Simple one-person installation and tilt angle adjustments. Requires locally sourced 4? schedule 40 steel pipe (4.5? OD) for the vertical pole, and 3? schedule 40 steel pipe (3.5? OD) for horizontal beam. Currently ships UPS in two boxes. Box 1: 37 x 7 x 7 at 36lbs.  Box 2: 10 x 9 x 7 at 13lbs. 10 year warranty by Tamarack.
