Tamarack, Side of Pole 90"

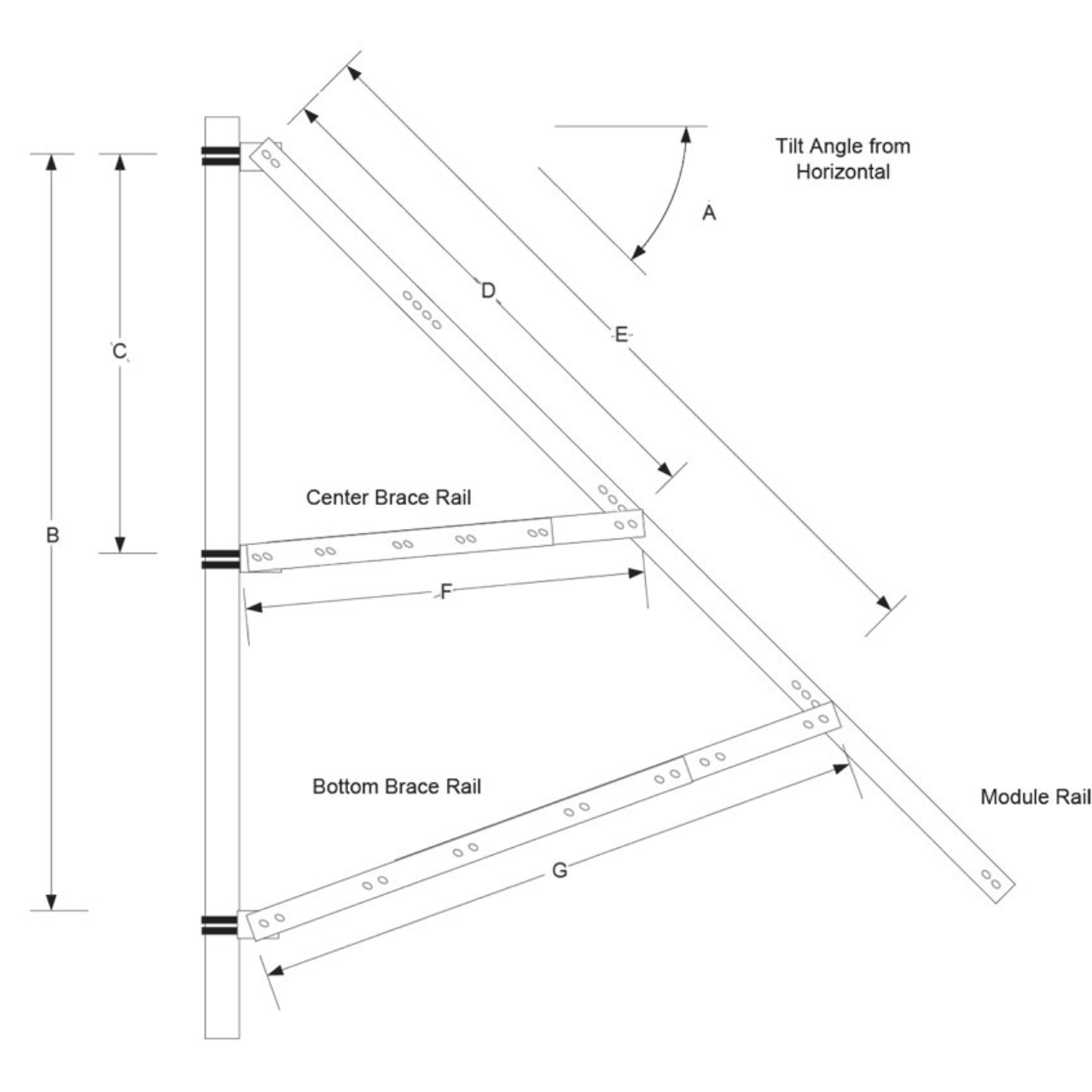

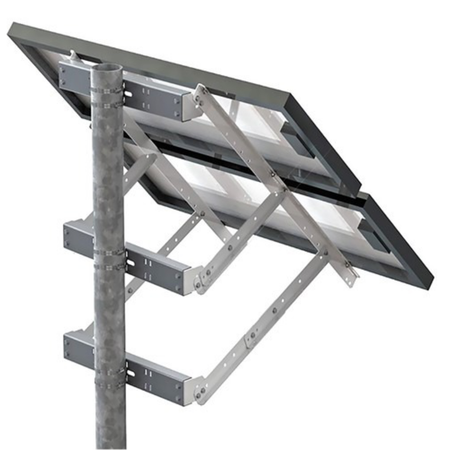

Tamarack Solar, UNI-SP/03X, Side of Pole Mount with 90" Rails. This product ships directly from the Manufacturer. A short lead time may apply. The Side of Pole Mount is a simple and universal pole mounting solution for photovoltaic modules. The UNI-SP/03X model is designed for mounting two large PV modules in landscape orientation, with a maximum combined module span of 89-inches. These mounts can be installed on a 4-inch Schedule 40 pipe with provided band clamps, or a 4-inch to 6-1/2-inch OD pole with user-supplied U-bolts, lag bolts (flat surfaces), or on a 25G ROHN tower frame. User-adjustable angle settings from 40 to 66 degrees. • Fits 4" schedule 40 pole. Adapts to larger 6" poles, Rohn 25-series towers, or flat surfaces with additional fasteners • Maximum total module surface area is 50 square feet • Fit modules with center-to-center mounting hole spacing of 29.2  inches to 41.2 inches • Manufactured using heavy-duty corrosion-resistant 5000 series aluminum • Wind exposure B or C (up to 97MPH depending on module square footage and configuration) 10-year warranty on structure and 3-year warranty on finishes. Shipping weight- 29 lbs Shipping dimensions - 93 x 5 x 3 inches
