Surface Mount Waterproof Breaker
Waterproof DC circuit breaker, 12V – 48V DC. Ignition protected: S.A.E. J1625, J1171, UL1500. Comes in 120amp, 200amp and 300amp models. Replaces our old T-Class Fuses. All SMB models will take up to 2/0 wire size. Not for use with 4/0 cabling.

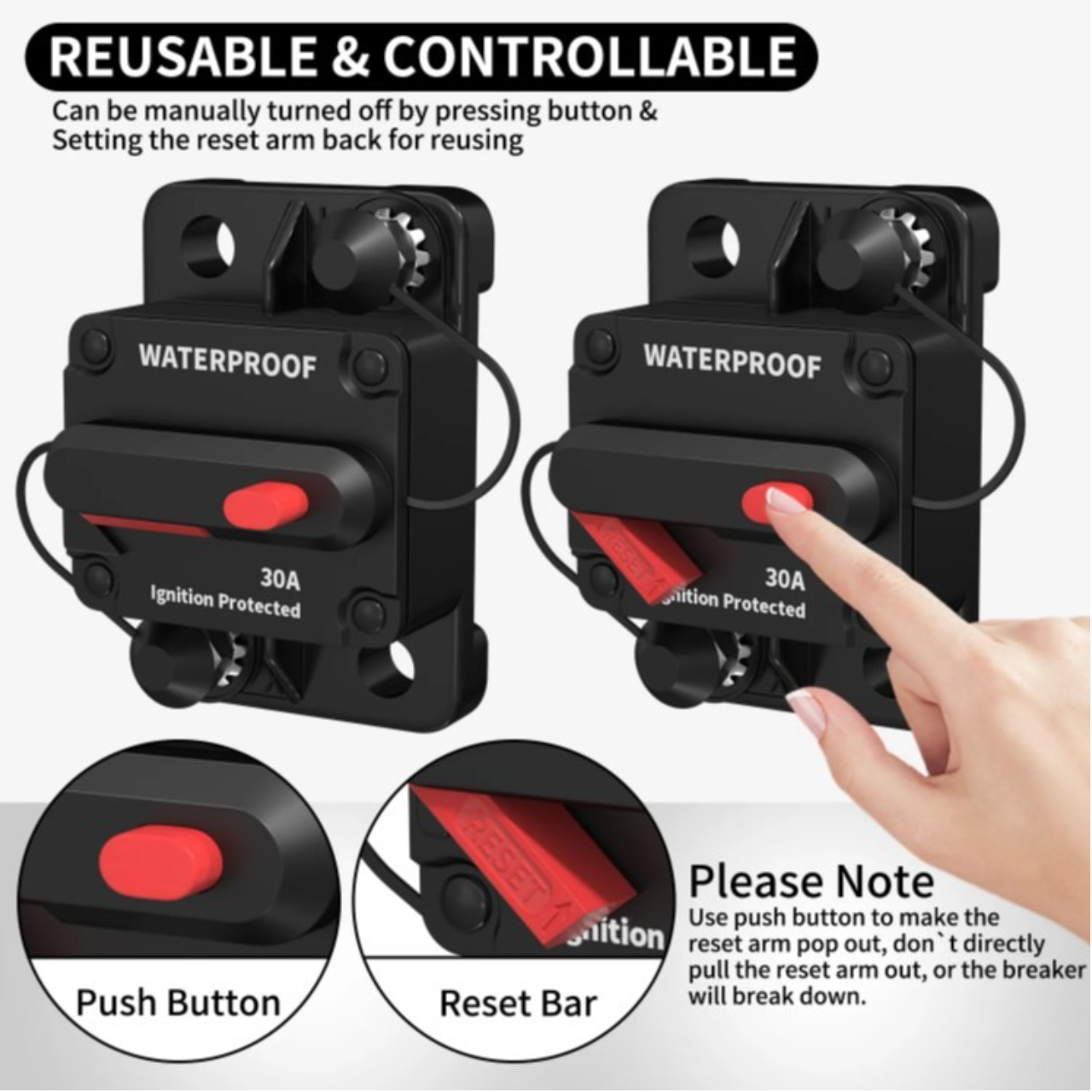

This in-line circuit breaker is designed with a push button and reset bar making it ideal for use as a kill switch as well as a breaker.
Typically used in trucks, buses, RVs, caravans, winches, tractors, and ATVs. In addition, since it is waterproof, it can also be used as a marine circuit breaker for boats, yachts, etc.
| Product Size | 2.91 x 1.93 x 1.73 inches/73.8mm (L) x 48.1mm (W) x 44mm (H) |
| Rated Voltage | 12-48VDC Maximum |
| Rated Current | 120A / 200A / 300A |
| Operating Temperature: | -40℃ to 100℃ |
| Circuit Breaker Type | Standard |
| Mounting Type | Surface Mount |
Item is 2.9” x 1.9” x 1.9” and weighs less than 1 pound.
| Variant | Quantity | Price | Total |
|---|---|---|---|
120
S-MN-SMB-120
|
|
||
|
200
S-MN-SMB-200
|
|
||
|
300
S-MN-SMB-300
|
|
