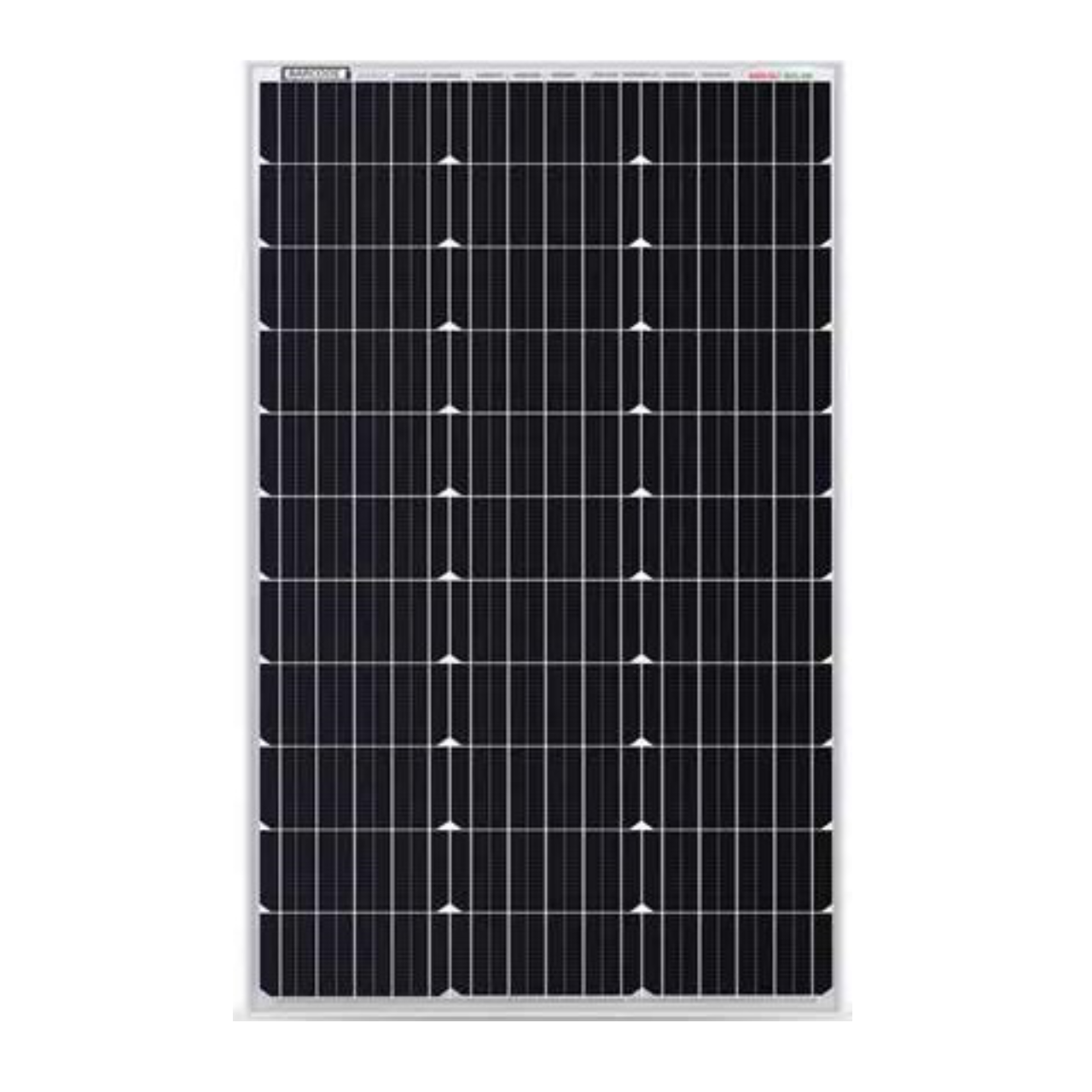

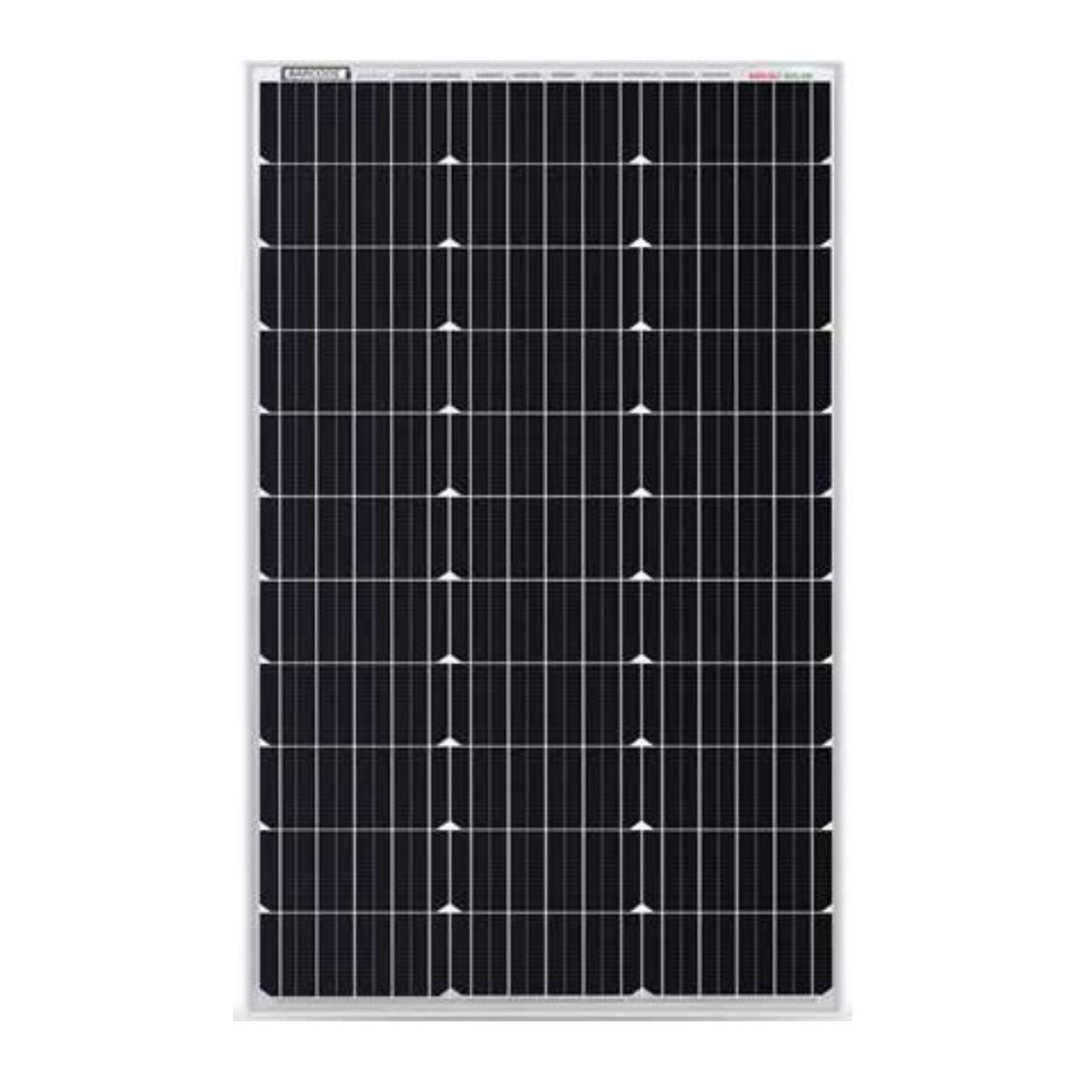

Sonali Solar 100W Module - 12V - 33-Cell Monocrystalline

The Sonali Solar 100W Module is our 100-watt, 12V PV module offering. This 33-cell monocrystalline solar module is designed for a variety of applications.

Use modules in parallel for 12V systems or in series for 24V systems with a PWM charge controller. Applications include solar gate openers, solar-direct water irrigation systems, remote off-grid power systems with or without an inverter, and many other uses.

A junction box with positive and negative 24", 4.02 mm² cable leads (slightly larger than 12 AWG) and MC4 connectors is included. We also offer termination options to suit your installation needs.

The module features a clear anodized aluminum frame for years of trouble-free performance.

Specifications

• Maximum Power: 100 watts
• Vmp: 17.9 volts
• Imp: 5.72 amps
• Voc: 21.6 volts
• Isc: 6.24 amps
• Junction Box: Positive and negative 24", 4.02 mm² cable leads (slightly larger than 12 AWG) with MC4 connectors
• Dimensions: 42.28" x 19.45" x 1.4"
• Weight: 13.4 lbs.
• Listings: UL, ETL, and IEC
• Shipping: Ships via UPS Ground

Warranty

• Product Warranty: 5 years
• Power Warranty: 10 years at 90% rated power
