Square D

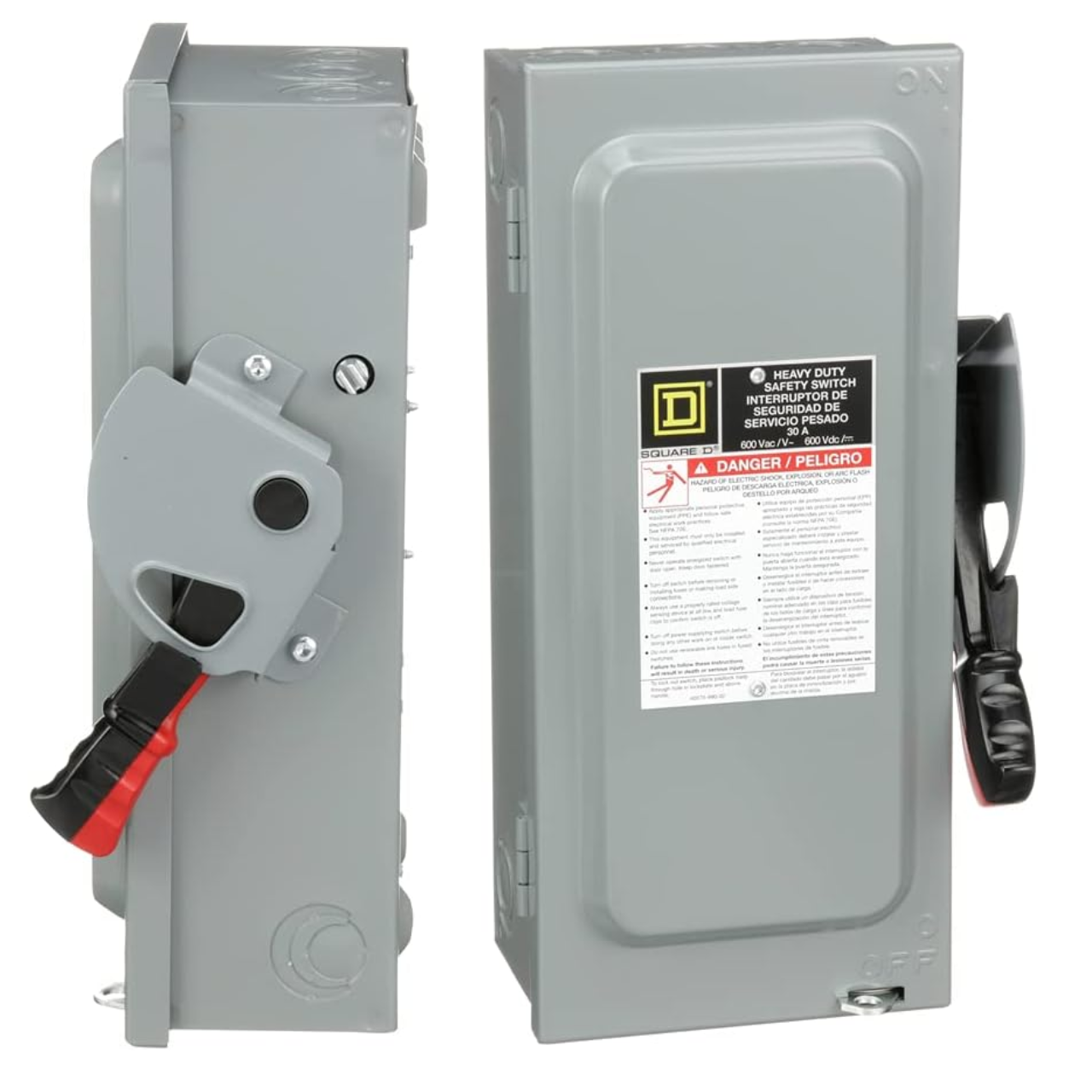

Square-D 600VDC 30A 3-Pole Disconnect

SKU: O-DC30A-DISCO
$244.00
Only 2 left
Low inventory - Hurry up!
Ready to work out of the box!

Need us to pre-program a product before shipping? Ask about our programming service.

Got questions?

Feel free to get in touch

Ask an expert!

Email (208) 263-4290

Square-D 600VDC 30A 3-Pole Disconnect Heavy Duty Non-Fusible 600V 30A 3-wire(s) Safety Switch with terminal lugs will accommodate wire size #14 to #6 awg. Nema 1 enclosure. UL and CSA approvals. For use as a High Voltage Solar array input disconnect in conjunction with high voltage KLKD fuses, specifically when using Victron or Schneider high voltage charge controllers.
  • Line Rated Current - 30 A
  • Product certifications - UL listed
  • NEMA degree of protection - NEMA 1 Enclosure
  • Short-circuit current - 200 kA maximum
  • Device mounting - Surface
  • Number of poles - 3
  • Electrical connection - Lugs
  • Series name - Heavy duty
  • System Voltage - 600 V AC/DC
  • AWG gauge AWG 14...AWG 6 (copper)
9"W x 16"L x 4"D 8 lbs. Shipping Weight
