SQ Flex CU202 Multi Purpose Interface

SQ Flex CU202 Multi Purpose Interface

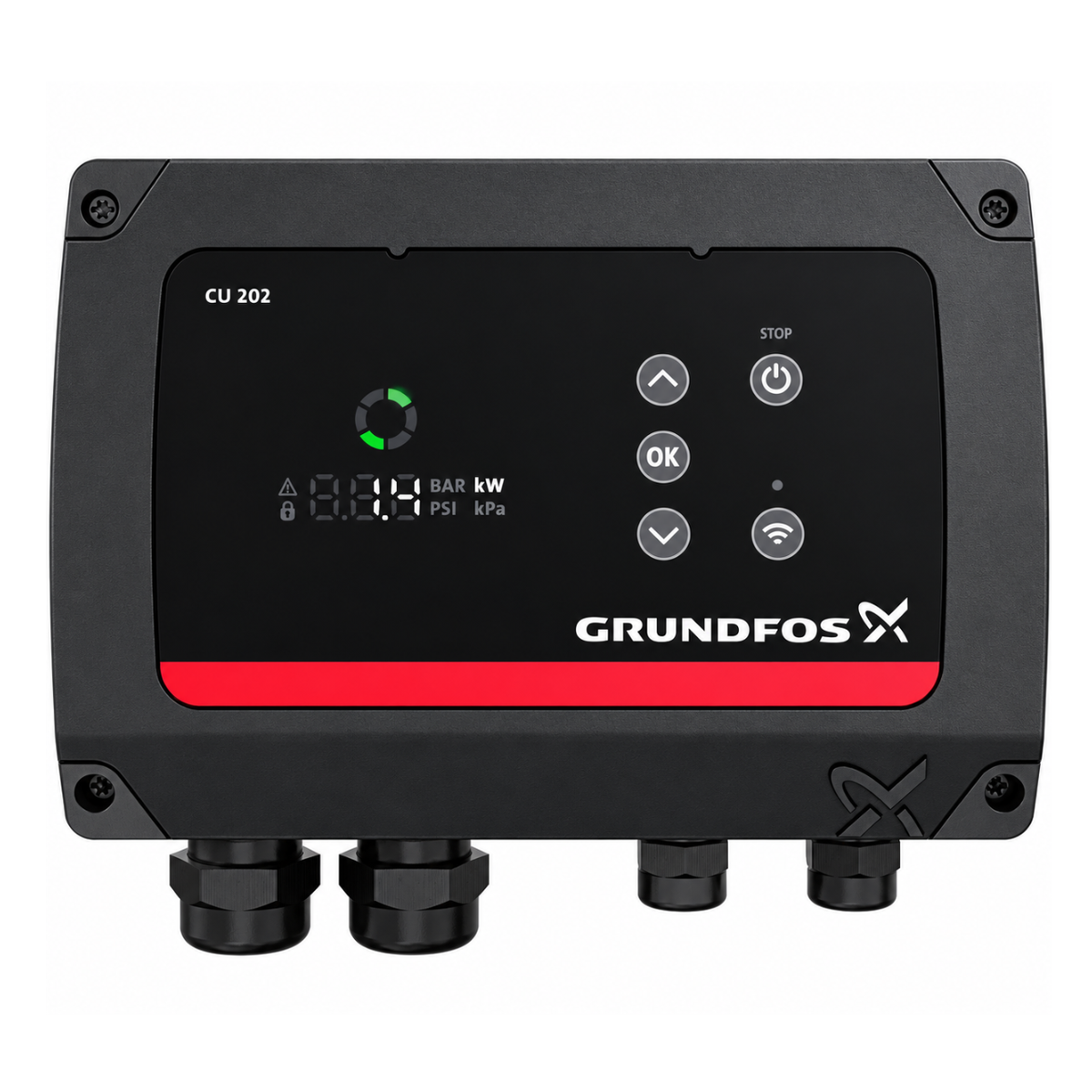

The Grundfos CU 202 is a control and monitoring unit designed for use with Grundfos SQFlex submersible pumps. It provides pump control, system status, alarm monitoring, and expanded setup options for solar-powered, off-grid, and remote water pumping systems.

The CU 202 comes preconfigured for tank-filling applications and can automatically start and stop the pump when used with a float switch or level sensor. Communication with the SQFlex pump takes place through the existing pump power cable, eliminating the need for a separate communication cable.

Built-in Bluetooth connectivity allows setup, monitoring, and troubleshooting through the Grundfos GO app.

Features

• Designed for Grundfos SQFlex pumps
• Automatic tank-filling control
• Manual and automatic pump operation
• Bluetooth connectivity with Grundfos GO
• Pump status, alarms, and warning indication
• Adjustable maximum pump speed
• Configurable inputs and outputs
• Built-in real-time clock for scheduled operation
• Power-line communication with the SQFlex pump
• RS-485 / GENIbus communication capability
• Supports integration with compatible remote monitoring systems

Specifications

• DC Input: 30–300 VDC
• AC Input: 90–240 VAC
• Maximum Current: 12.5 A
• Maximum Power Consumption: 25 W
• Maximum Recommended Backup Fuse: 16 A
• Maximum Cable Length to Pump: 984 ft. (300 m)
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)

Applications

Ideal for:

• Solar water pumping
• Water storage and cistern filling
• Livestock watering
• Irrigation systems
• Remote homes and cabins
• Off-grid water systems

Compatibility

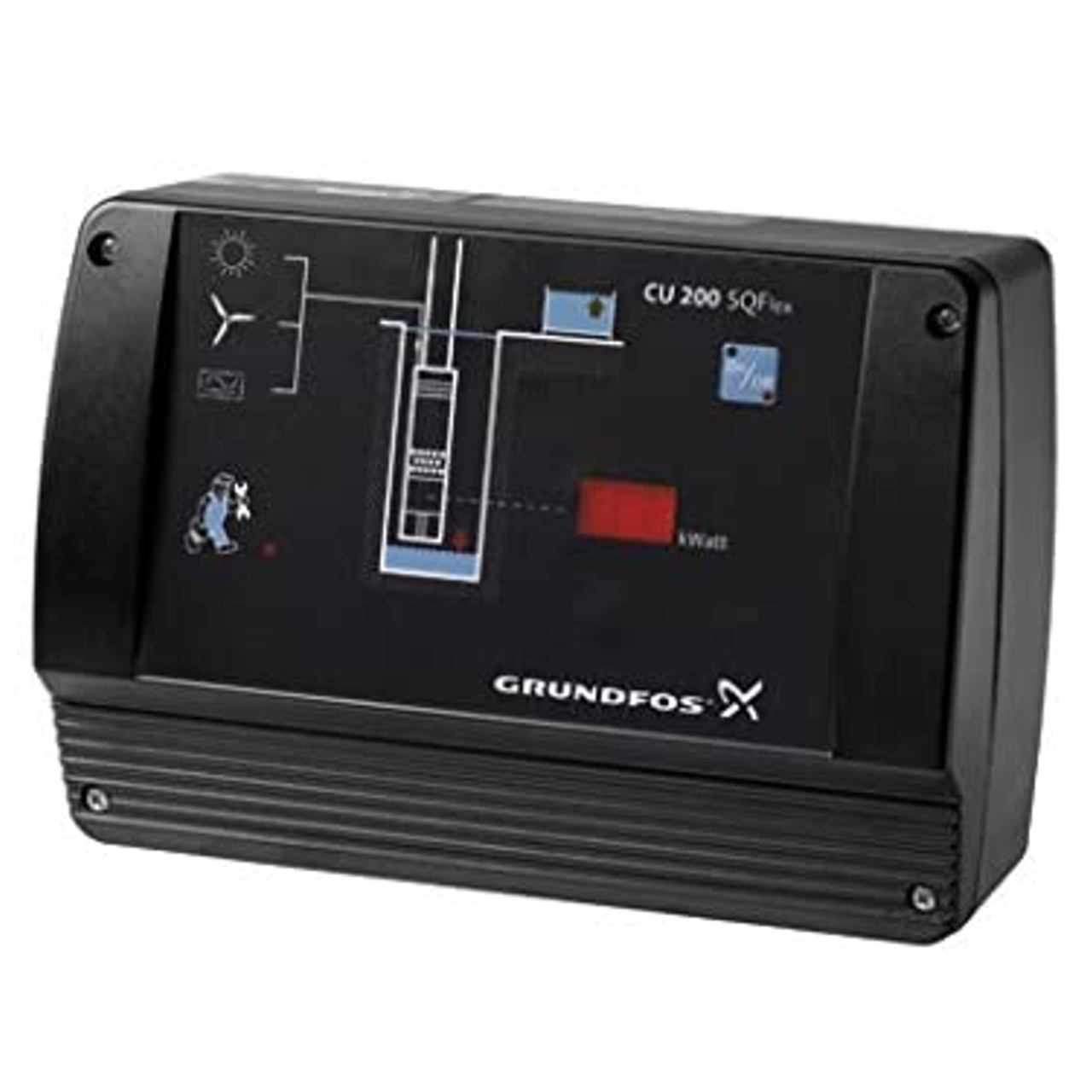

The Grundfos CU 202 is designed specifically for Grundfos SQFlex pumps and is the newer-generation control option replacing the older CU 200 platform.

Grundfos Part Number: 92799798
