General Specialties S-SOP-K Side-of-Pole Mount for 1 Medium Solar Module

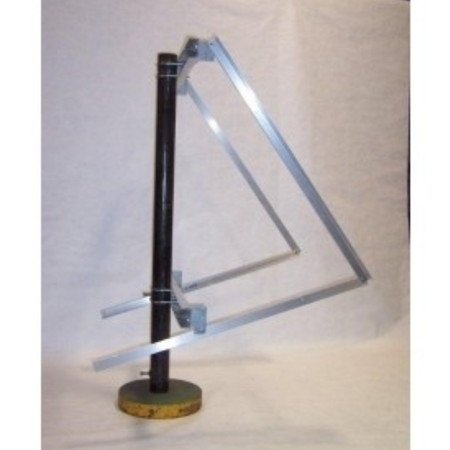

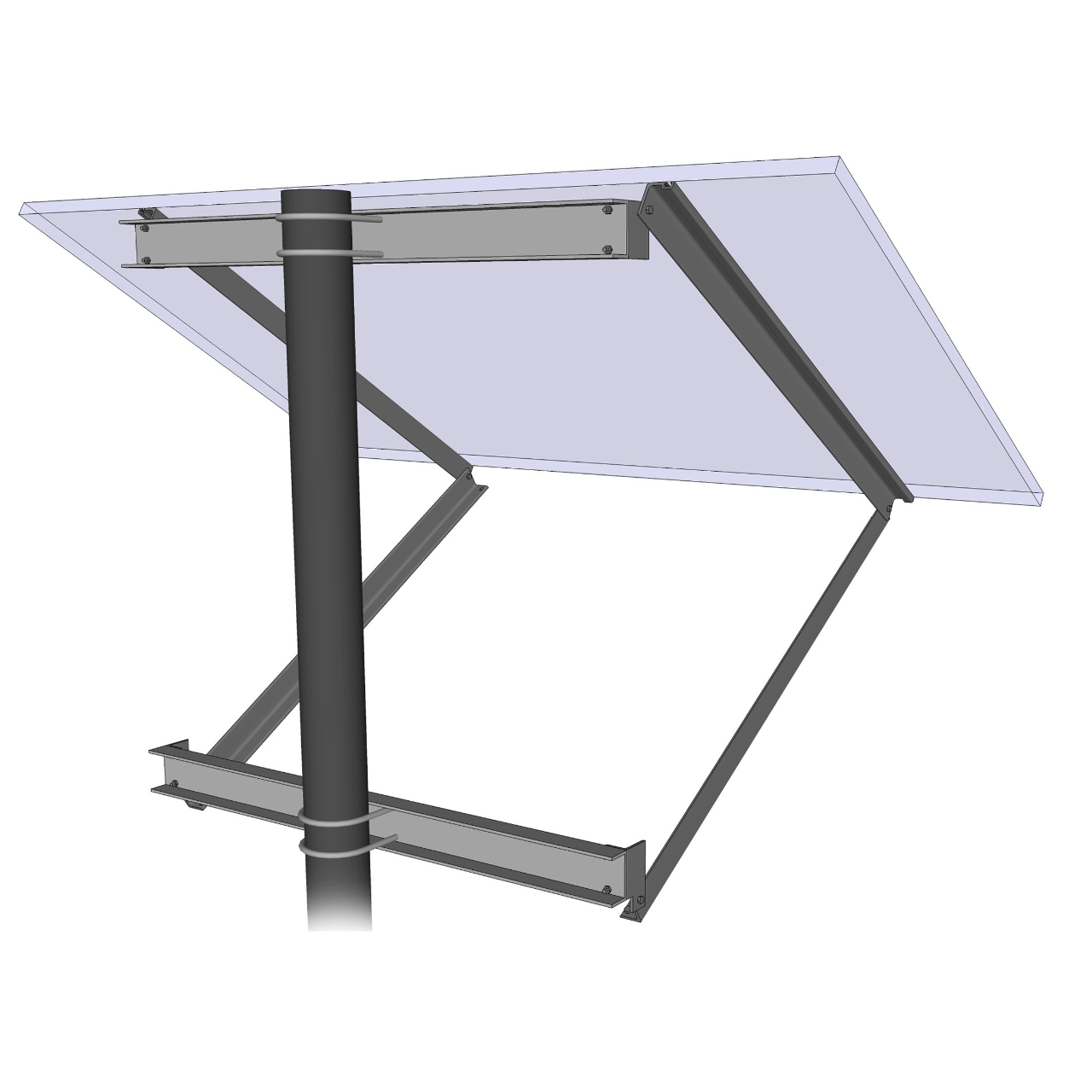

The General Specialties S-SOP-K Side-of-Pole Mount is designed to support one medium-size solar module on a vertical pole.

This Model K mount fits one Panel Size A or similarly sized module and provides an adjustable tilt range from 20° to 90°. The self-aligning channel cross pieces help simplify installation while creating a strong, stable connection to the mounting pipe.

Mounting pipe is not included.

Features

• Fits One Medium-Size Solar Module: Designed for one Panel Size A or similarly sized photovoltaic module.

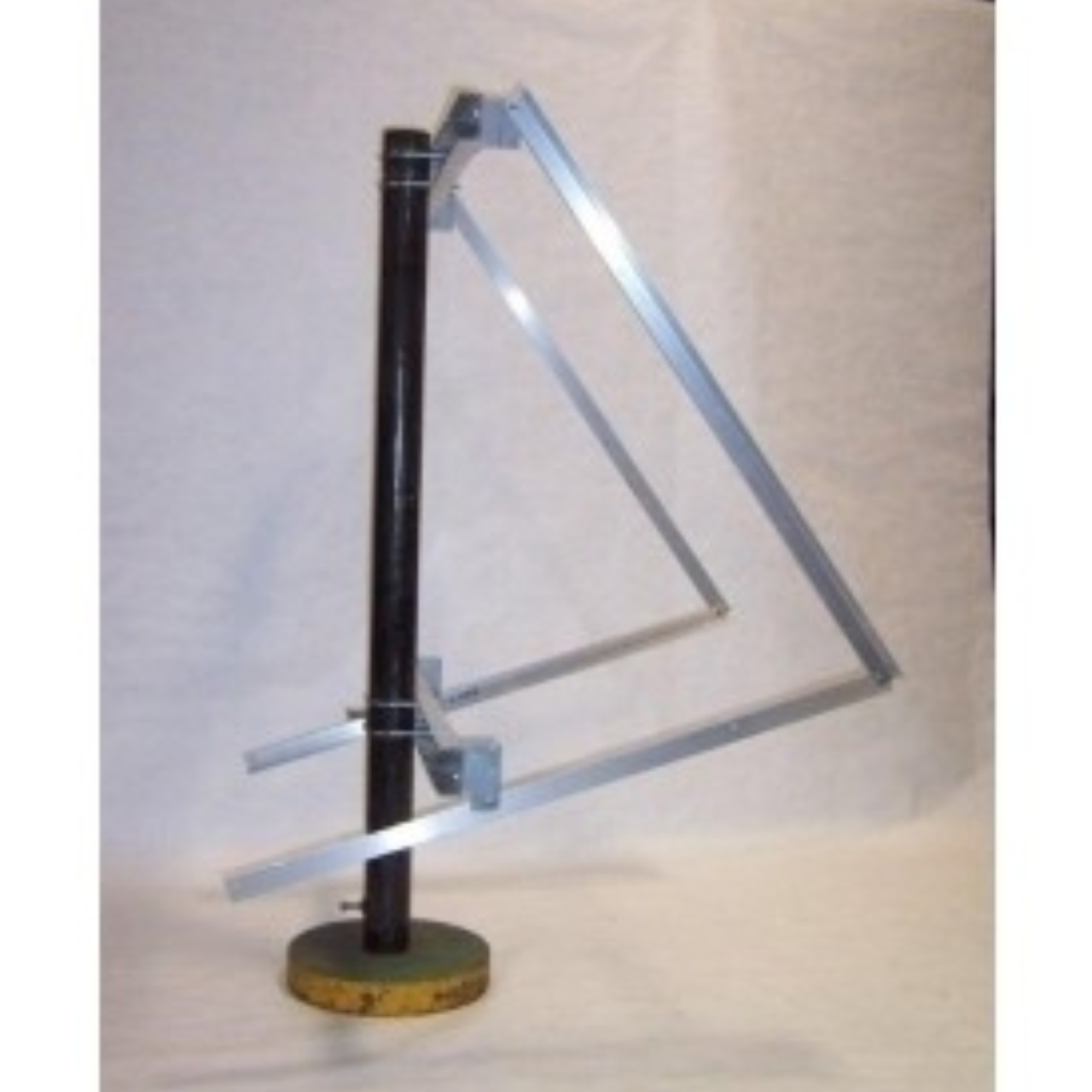

• Adjustable Tilt: Module inclination can be adjusted from 20° to 90° by changing the brace attachment point.

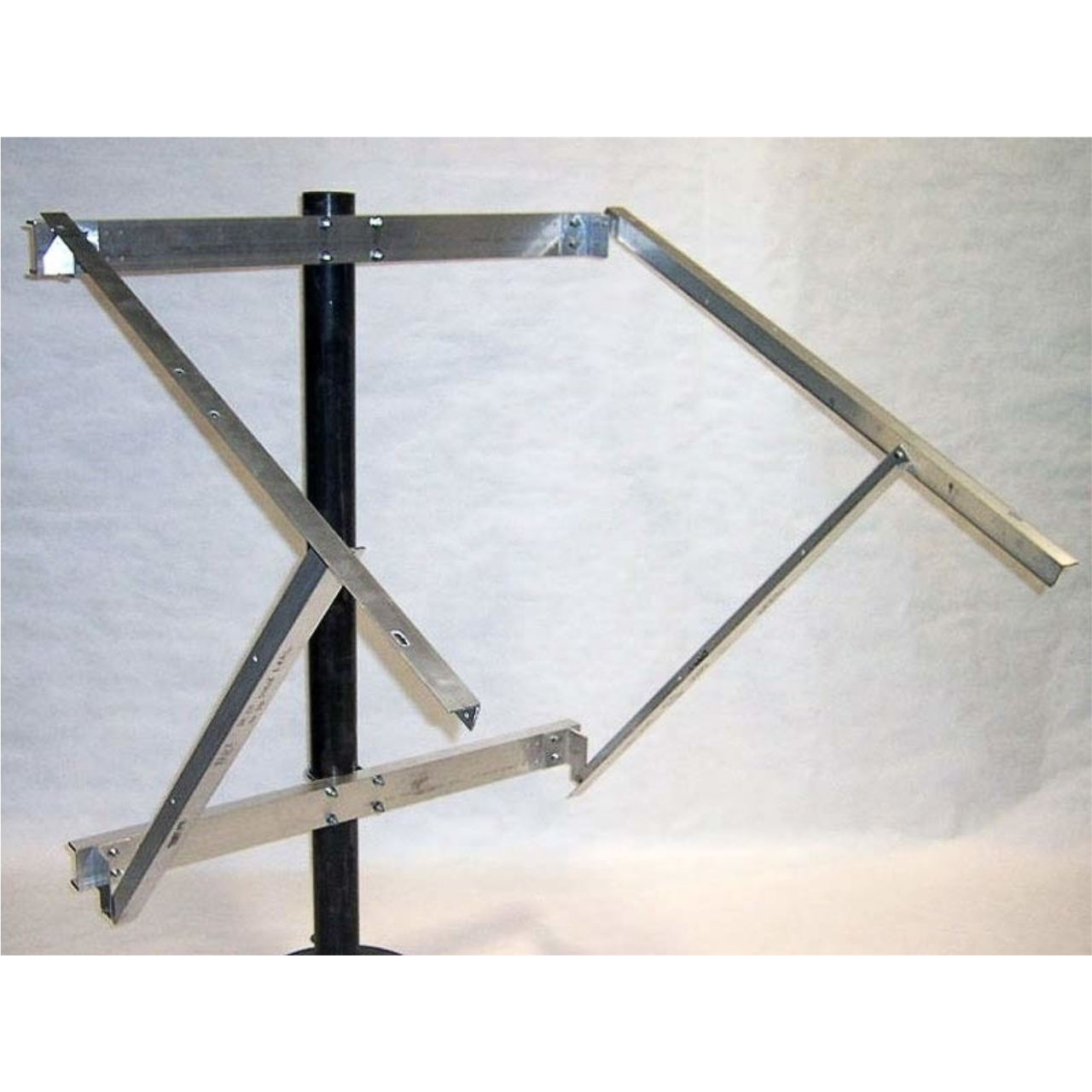

• Self-Aligning Cross Pieces: Channel cross pieces align to the pipe to simplify installation and create a strong mounting foundation.
• Flexible Brace Positioning: Braces can be installed forward of the module or behind it to accommodate different site layouts.
• Standard 3 in Pipe Compatibility: Designed for 3 in Schedule 40 or Schedule 80 pipe.
• 4 in Pipe Option Available: A version for 4 in Schedule 40 or Schedule 80 pipe can be special ordered.
• Made in the USA: Manufactured in the United States by General Specialties.

Specifications

Model: S-SOP-K
Module Capacity: 1 Medium-Size Solar Module
Maximum Array Surface Area: 11 sq. ft.
Rail Length: 36 in
Brace Length: 36 in
Tilt Range: 20° to 90°
Standard Pole Size: 3 in Schedule 40/80 Pipe
Optional Pole Size: 4 in Schedule 40/80 Pipe, Special Order

Installation Notes

Pipe is not included.

The cross pieces are designed to remain fixed once installed, while module tilt is adjusted using the brace attachment points. This allows seasonal or site-specific angle changes without repositioning the main mounting hardware.
