General Specialties S-SOP-X Side-of-Pole Mount for 1 Large 60-Cell Solar Module

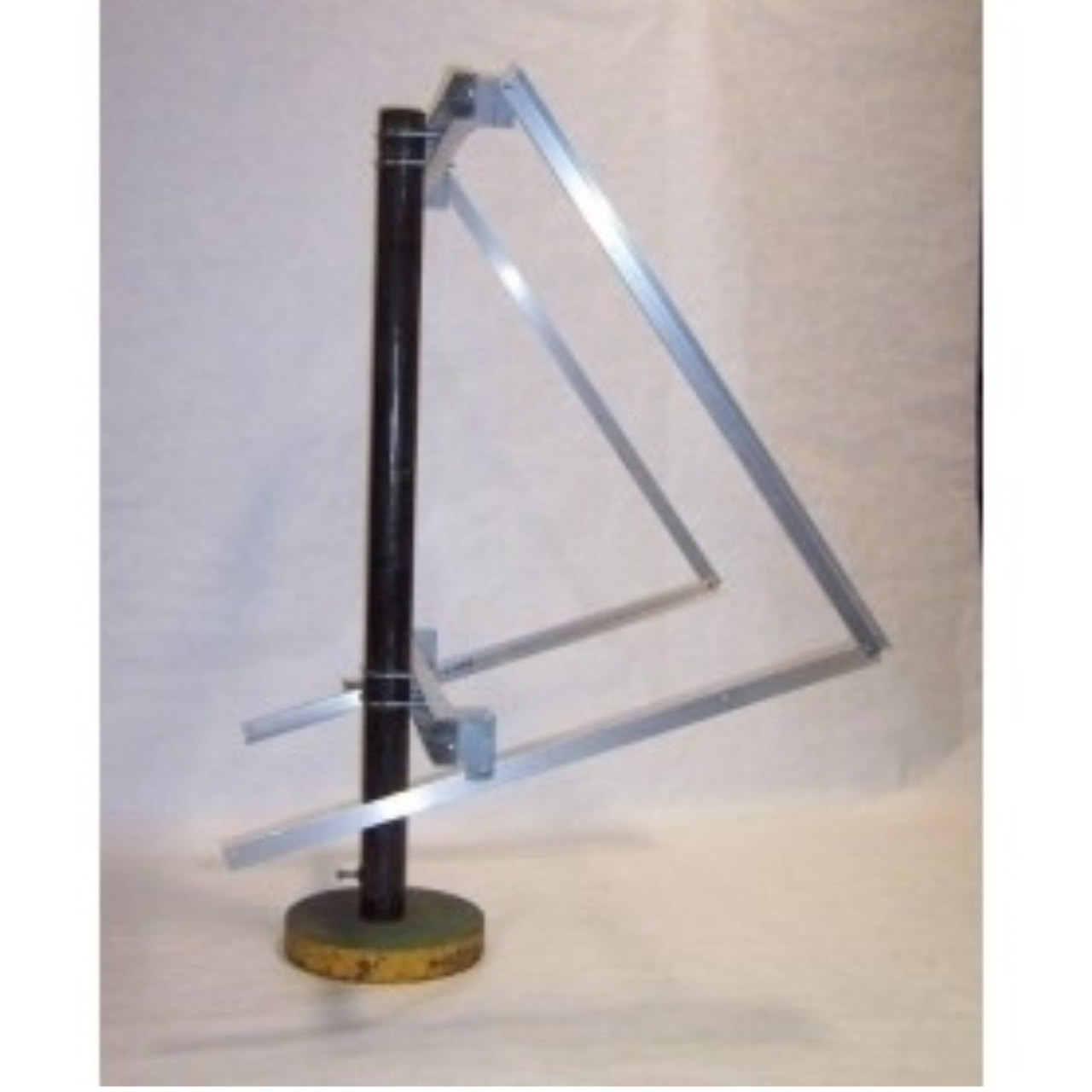

The General Specialties S-SOP-X Side-of-Pole Mount is designed to support one large 60-cell solar module on a vertical pole.

The mount features 44 in rails and braces, with an adjustable tilt range from 20° to 90°. Self-aligning channel crosspieces help simplify installation while providing a strong, stable connection to the mounting pipe.

Mounting pipe is not included.

Features

• Fits One Large 60-Cell Solar Module: Designed for one larger-format photovoltaic module.
• Adjustable Tilt: Module inclination can be adjusted from 20° to 90° by changing the brace attachment point.
• Self-Aligning Crosspieces: Channel crosspieces align to the pipe to reduce installation time and provide a strong mounting foundation.
• Flexible Brace Positioning: Braces can be installed either forward of the module or behind it to accommodate different site layouts.
• Standard 3 in Pipe Compatibility: Designed for 3 in Schedule 40 or Schedule 80 pipe.
• 4 in Pipe Option Available: A version for 4 in Schedule 40 or Schedule 80 pipe can be special ordered.
• Made in the USA: Manufactured in the United States by General Specialties.

Specifications

Model: S-SOP-X
Module Capacity: 1 Large 60-Cell Solar Module
Maximum Array Surface Area: 22 sq. ft.
Rail Length: 44 in
Brace Length: 44 in
Tilt Range: 20° to 90°
Standard Pole Size: 3 in Schedule 40/80 Pipe
Optional Pole Size: 4 in Schedule 40/80 Pipe, Special Order

Installation Notes

Pipe is not included.

The crosspieces are designed to remain fixed once installed, while the module tilt is adjusted using the brace attachment points. This allows seasonal or site-specific angle changes without repositioning the main mounting hardware.
