Victron Energy SmartSolar MPPT 150/85-Tr VE.Can Charge Controller

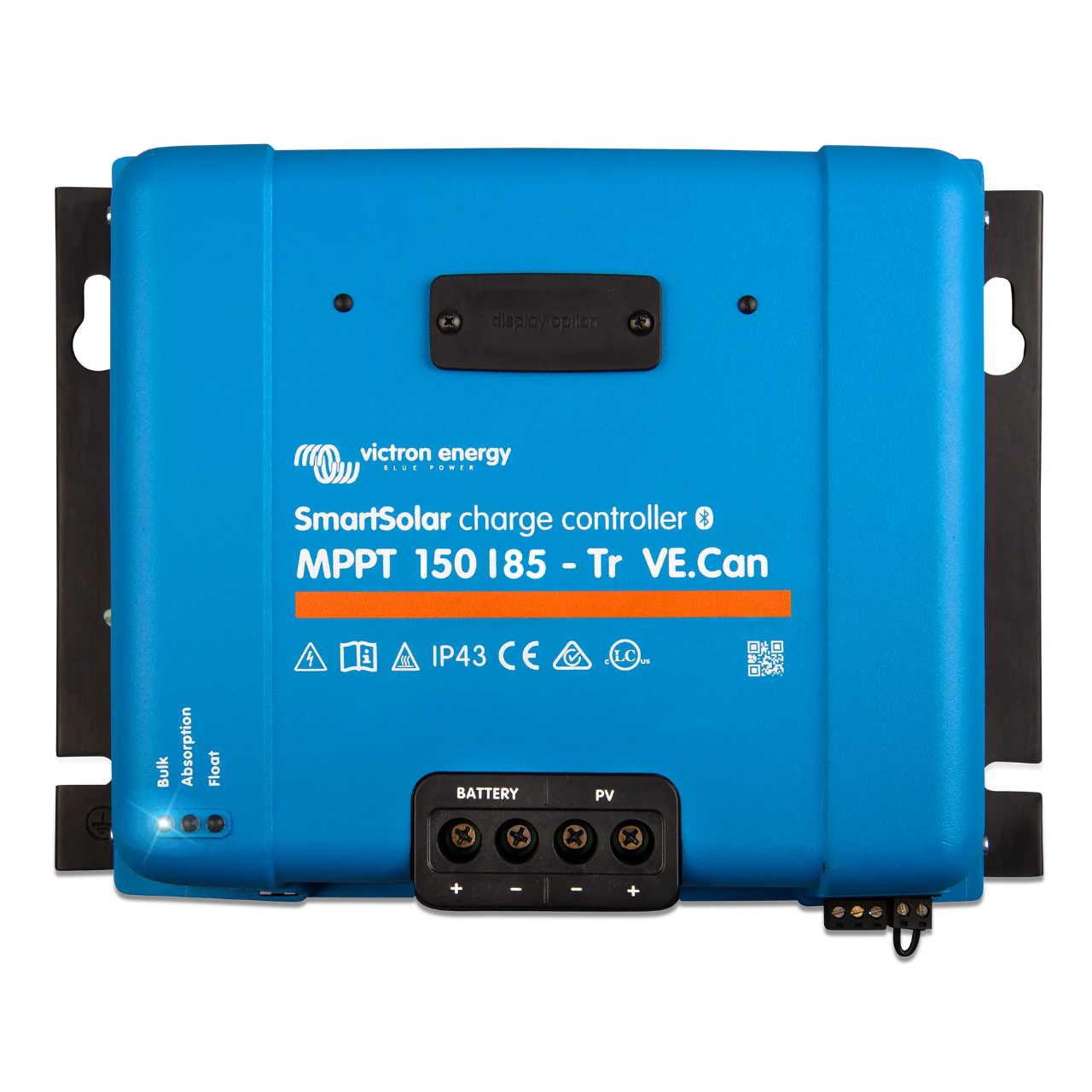

Photos indicate SmartSolar MPPT 150/100-TR VE.Can model which is identical form factor and wiring as SmartSolar MPPT 150/85-Tr VE.Can Charge Controller.
The Victron SmartSolar MPPT150/85-Tr VECan charge controller is a powerful MPPT solar charge controller with many advanced features and remote monitoring capabilities in a compact enclosure for off-grid, grid-tie battery back-up, marine or RV use. Bluetooth wireless monitoring and control is a standard feature (no dongle needed) on the SmartSolar MPPT charger. SmartSolar MPPT chargers include the VE.Direct communication port for a hard-wired connection to a computer, smartphone or tablet. Other features include multi-stage adaptive charging, including bulk, absorb, float and EQ (when appropriate), Ultrafast Maximum Power Point Tracking for more efficient solar harvest, maximum efficiency of 98%, extensive electronics protection, temperature compensation, ease of install and proven Victron reliability.
Victron Energy is one of the top manufacturers of renewable energy systems, and enjoys an unrivalled reputation for technical innovation, reliability and quality. They have served the off-grid, industrial and vehicle markets as well as both the commercial and leisure marine sectors for over 45 years.
SmartSolar MPPT Charge Controllers are UL listed.
- Battery Voltage: 12/24/48VDC (Auto Select)
- Rated Charging Current: 85A
- Nominal PV Input Power: 1200W @ 12VDC / 2400W @ 24VDC / 4900W @ 48VDC
- Max. PV Open Circuit voltage: 150VDC
- Internal Temperature Sensor/ optional external battery voltage and temperature sensing via bluetooth available
- Protection from output short circuit, battery and PV reverse polarity, over temperature.
- Accepts up to AWG2 wire on PV input and Battery Output.
The SmartSolar MPPT 150/85 charge controller is loaded with features:
- Multi-stage adaptive charging includes Bulk, Absorb, Float and EQ
- Lightweight and compact for ease of installation.
- Bluetooth enabled, no dongle needed
- VE.Can bus for multiple data connections with other hardware and/or GX displays, monitors and controls.
- VE.Direct for remote monitoring (with optional equipment)
- Warranty: SmartSolar MPPT Solar Chargers are backed by a five year limited warranty.
