SmartShunt 1000A/50mV

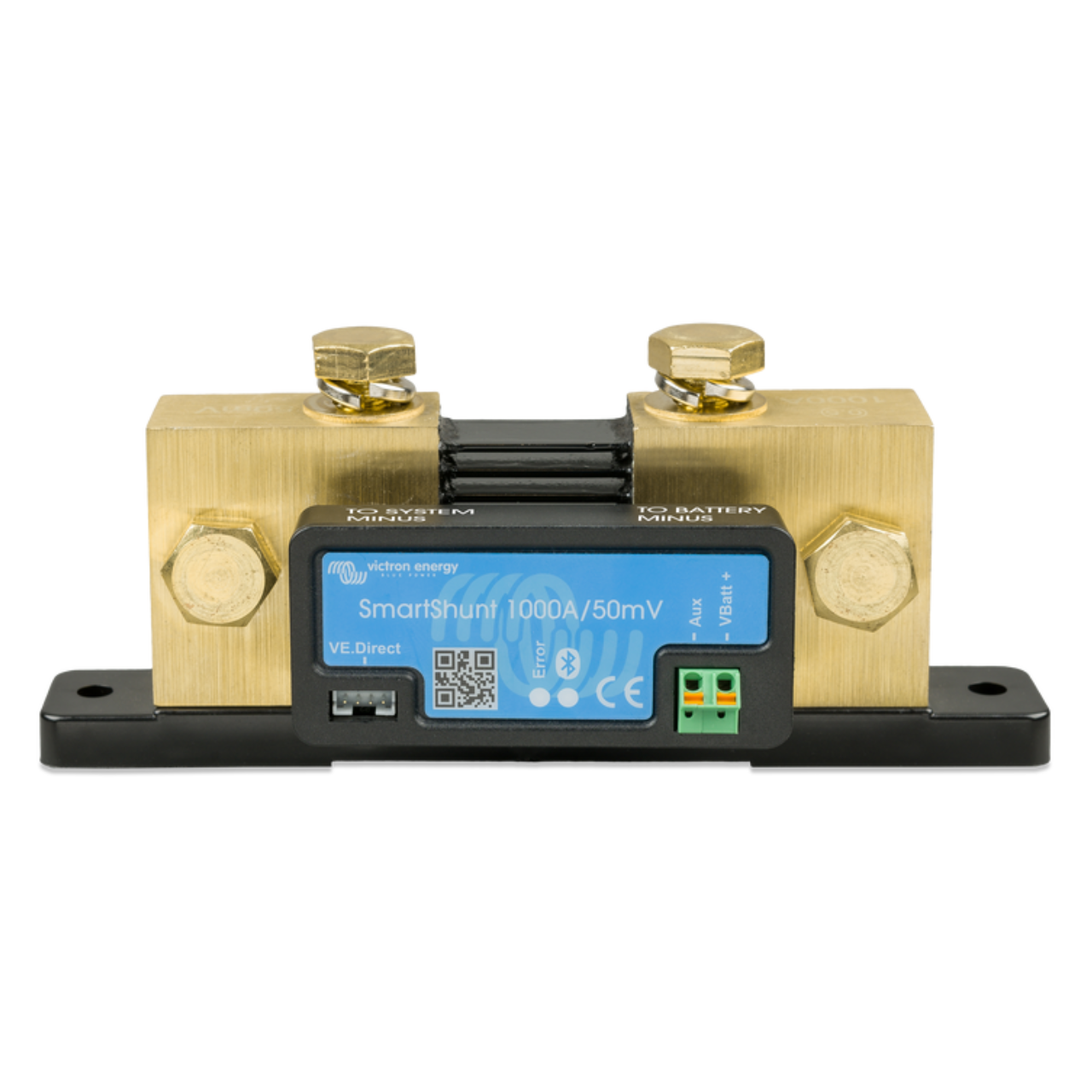

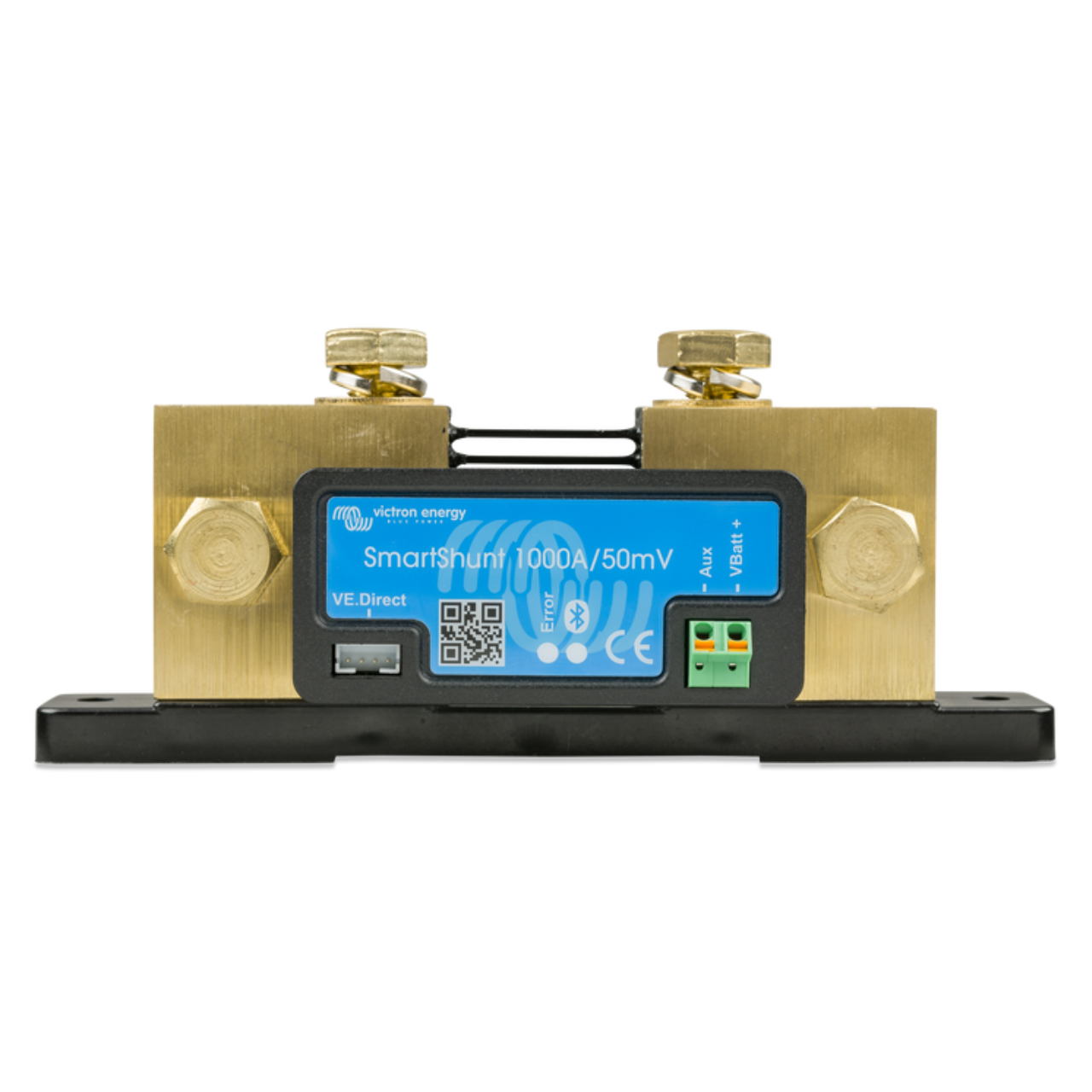

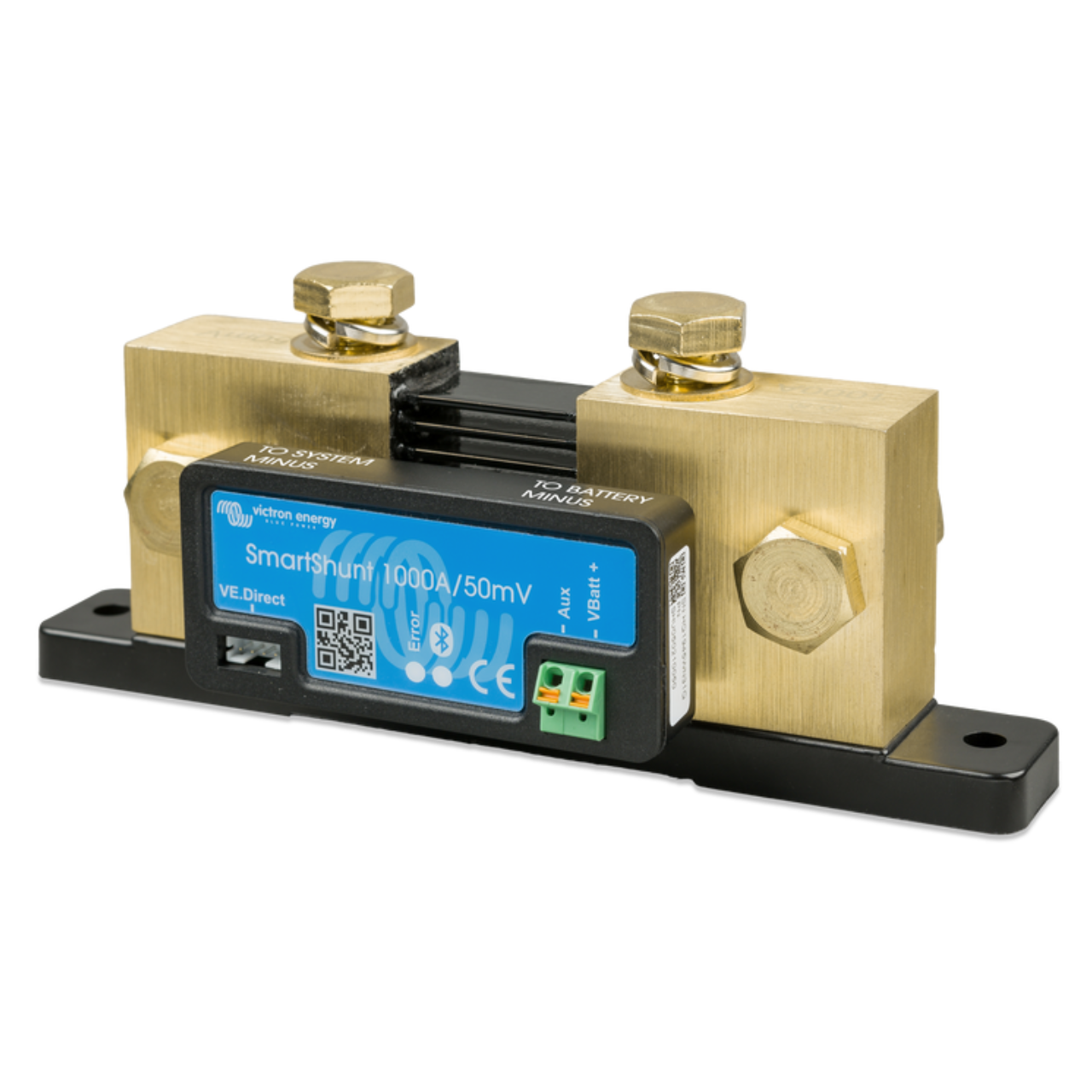

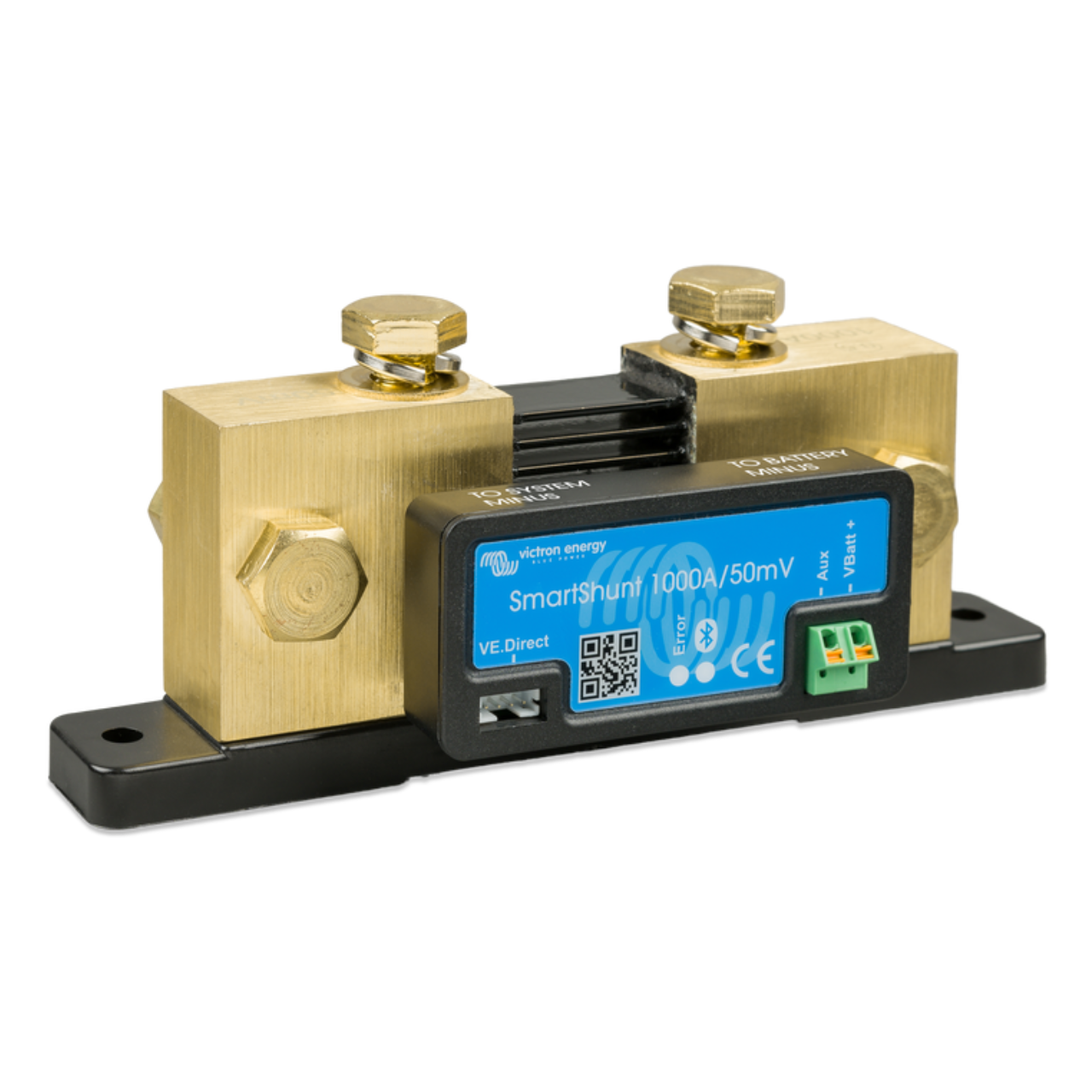

Victron Energy SmartShunt 1000A/50mV The Victron Energy SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more. Alternatively, the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable. The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted. The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used to monitor a second battery, for midpoint monitoring, or to connect a temperature sensor

Victron Energy is one of the top manufacturers of renewable energy systems, and enjoys an unrivalled reputation for technical innovation, reliability and quality. They have served the off-grid, industrial and vehicle markets as well as both the commercial and leisure marine sectors for over 45 years.

Differences compared to BMV712 Battery Monitor - No programmable visual and audible alarm. - No programmable relay

Supply voltage range 6.5 - 70 VDC Current draw < 1mA Input voltage range, auxiliary battery 6.5 - 70 VDC Battery capacity (Ah) 1 - 9999 Ah Operating temperature range -40 +50°C (-40 - 120°F) Temperature measurement range -20 +50°C (-4 -120°F) Five year limited warranty.

Product Weight -  1 Lbs PRoduct dimensions - 1.8"H x 4.73"W x 2.13"D
