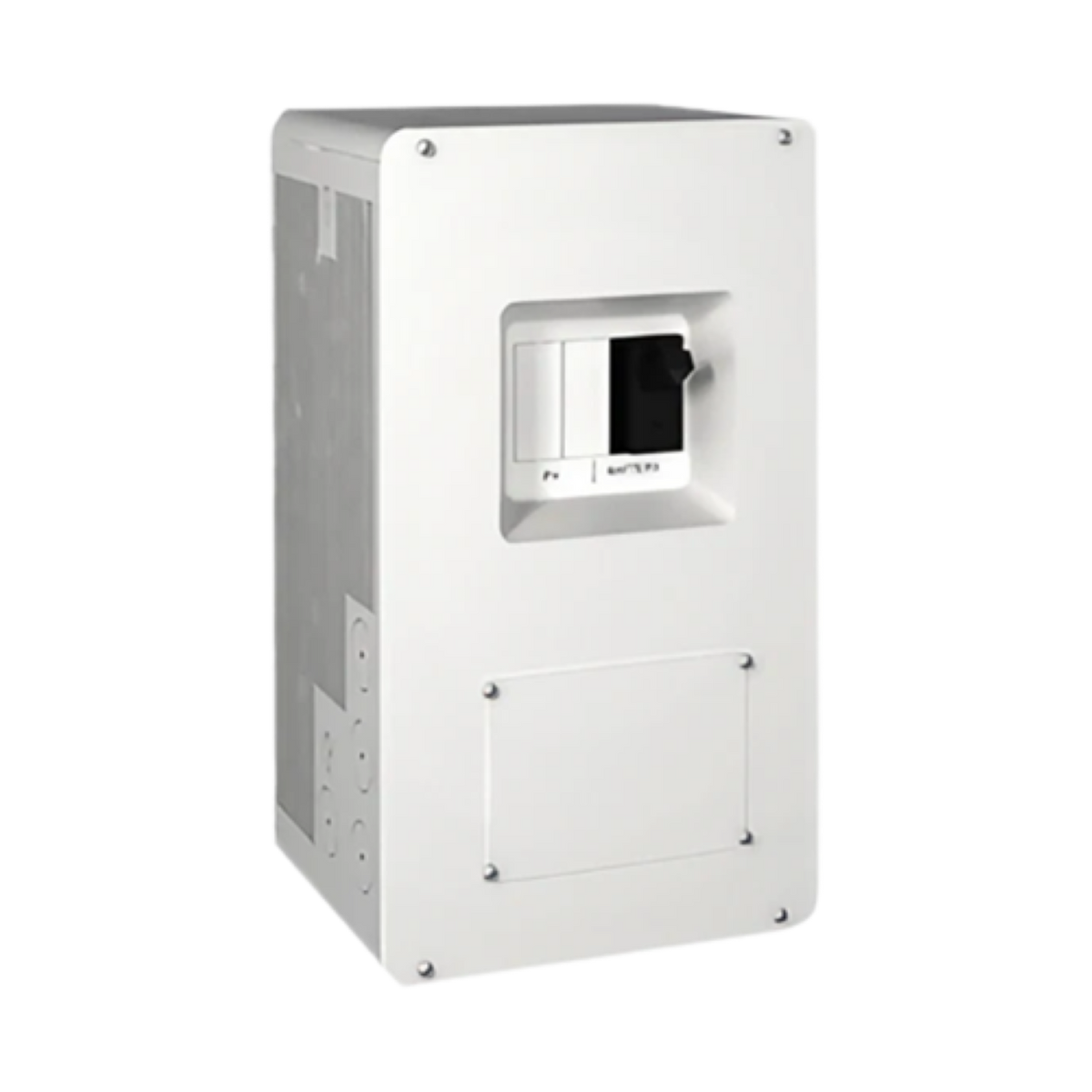

Schneider Conext SW DC Breaker Distribution Panel

The Schneider Conext SW DC Breaker Distribution Panel is designed to simplify the integration of Conext SW inverter/chargers with compatible solar charge controllers, battery banks, and load centers.

Pre-wired and labeled from the factory, the panel helps reduce installation time, labor, and overall system complexity. It includes a pre-installed 250A DC breaker, positive and negative copper bus bars, and additional breaker positions for integrating multiple DC power sources.

Features

• Pre-Wired and Labeled: Designed for faster installation and simplified system integration.
• 250A DC Breaker Included: Comes with a pre-installed 250A DC breaker.
• Integrated Bus Bars: Includes pre-installed positive and negative copper bus bars.
• Additional Breaker Positions: Provides expansion space for up to two additional DC breakers.
• Expandable Capacity: Additional DC and AC breaker positions support future system expansion.
• MPPT Controller Integration: Side keyholes allow for convenient integration of a compatible Conext MPPT 60 Solar Charge Controller.
• Wall-Mount Design: Designed for straightforward wall-mounted installation.
• Supports Inverter Stacking: Additional Conext SW inverter/chargers can be added using the compatible Conext SW Inverter/Charger Stacking Kit.

What's Included

• 1 × Distribution Panel Box
• 1 × Distribution Panel Cover
• 1 × 250A DC Breaker, pre-installed
• 1 × Positive Copper Bus Bar, pre-installed
• 1 × Negative Copper Bus Bar, pre-installed
• 1 × Mounting Bracket

Specifications

DC Breaker: 250A, Pre-Installed
Expansion Capacity: Two Additional DC Breaker Positions
Dimensions: 16.57 H × 9.45 W × 7.87 D in
Weight: 20 lb

Certifications

Listings: UL and CSA

Warranty

Warranty: Two-Year Limited Warranty, Non-Extendable

Warranty coverage is subject to applicable state and local laws or regulations that may modify certain warranty provisions.
