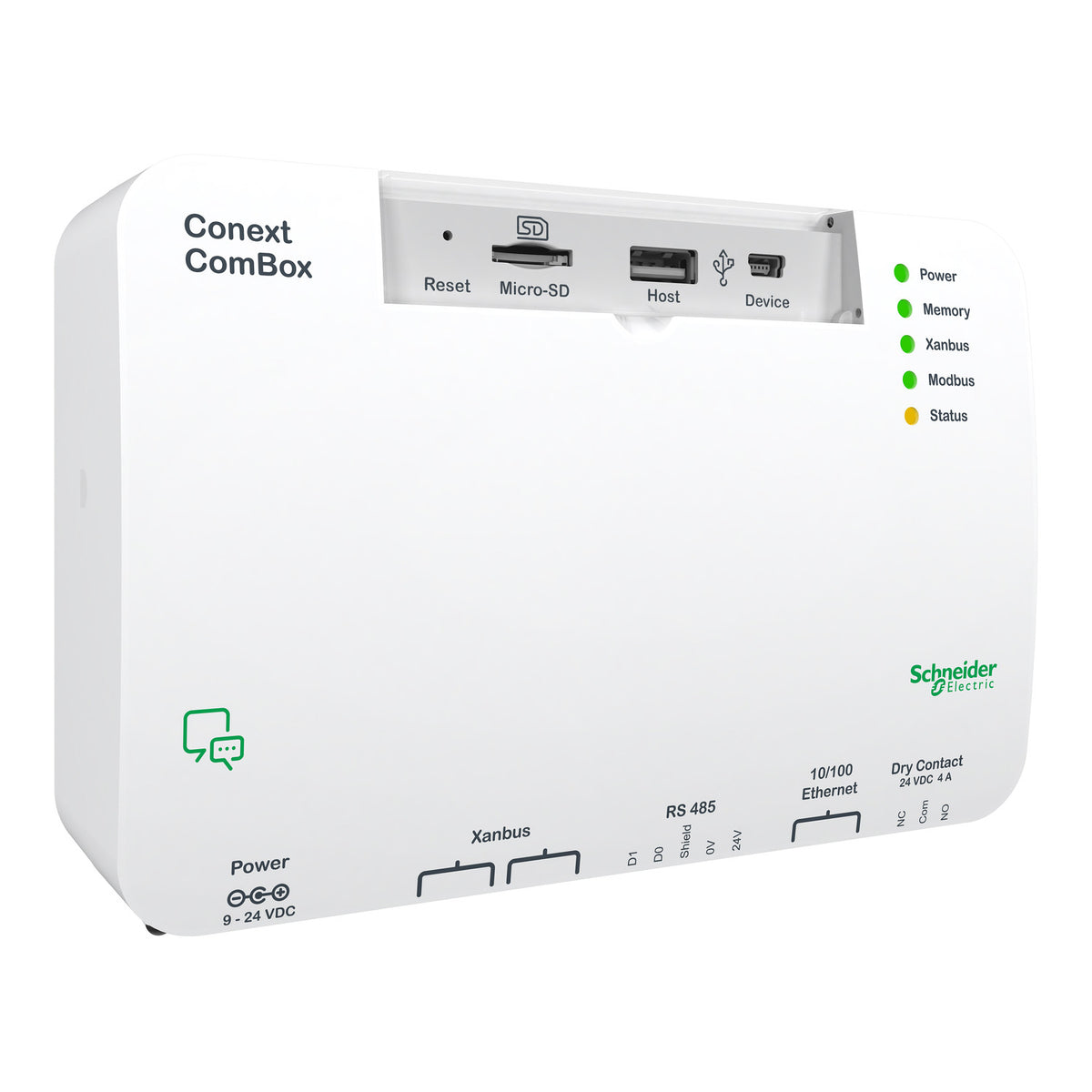

Schneider Conext ComBox for SW and XW+ Systems

The Schneider Conext ComBox is a comprehensive monitoring and configuration interface for compatible Schneider Conext systems. Acting as a central system manager, the ComBox communicates over the Xanbus network to monitor and control connected Conext devices.

Compatible devices include XW+ and SW inverters, XW MPPT 60 and 80 charge controllers, the Schneider Automatic Generator Start (AGS) module, Battery Monitor Kit (BMK), and System Control Panel (SCP).

While many configuration and monitoring functions overlap with those available through the SCP, the ComBox also adds Ethernet and serial communication options for local and remote system access.

Unlike the SCP, the ComBox does not have a built-in display. A local computer or compatible connected device is required to provide the graphical user interface.

Features

• Xanbus System Communication: Monitors and communicates with compatible Schneider Conext devices connected to the Xanbus network.
• Ethernet Connectivity: Provides network access for local and remote system monitoring.
• Serial Modbus Port: Supports communication with compatible computers and third-party devices.
• Remote Monitoring Capability: Compatible monitoring software can be used for local or remote system access. High-speed internet is required at the installation site for remote monitoring.
• Non-Volatile Memory: Preserves configuration settings during power or network interruptions.
• Firmware Storage and Upgrades: Can serve as the pathway for firmware updates to compatible devices on the Xanbus network.
• MicroSD Card Slot: Provides additional storage capacity for system data.
• Data Logging: Logged system data can be accessed through the web-based user interface.
• Programmable Dry Contact Relay: Rated for up to 24V DC and 4A maximum.

Specifications

Dimensions: 4.5 H × 6.7 W × 2.1 D in
Weight: 0.5 lb
Relay Rating: 24V DC / 4A max.
Communications: Xanbus, Ethernet, Serial Modbus
Storage Expansion: MicroSD Card Slot

Certifications

Approvals: CE and RCM

Warranty

Standard Warranty: One-Year Schneider Electric Limited Warranty
Extended Warranty: Extendable to two years with product registration
