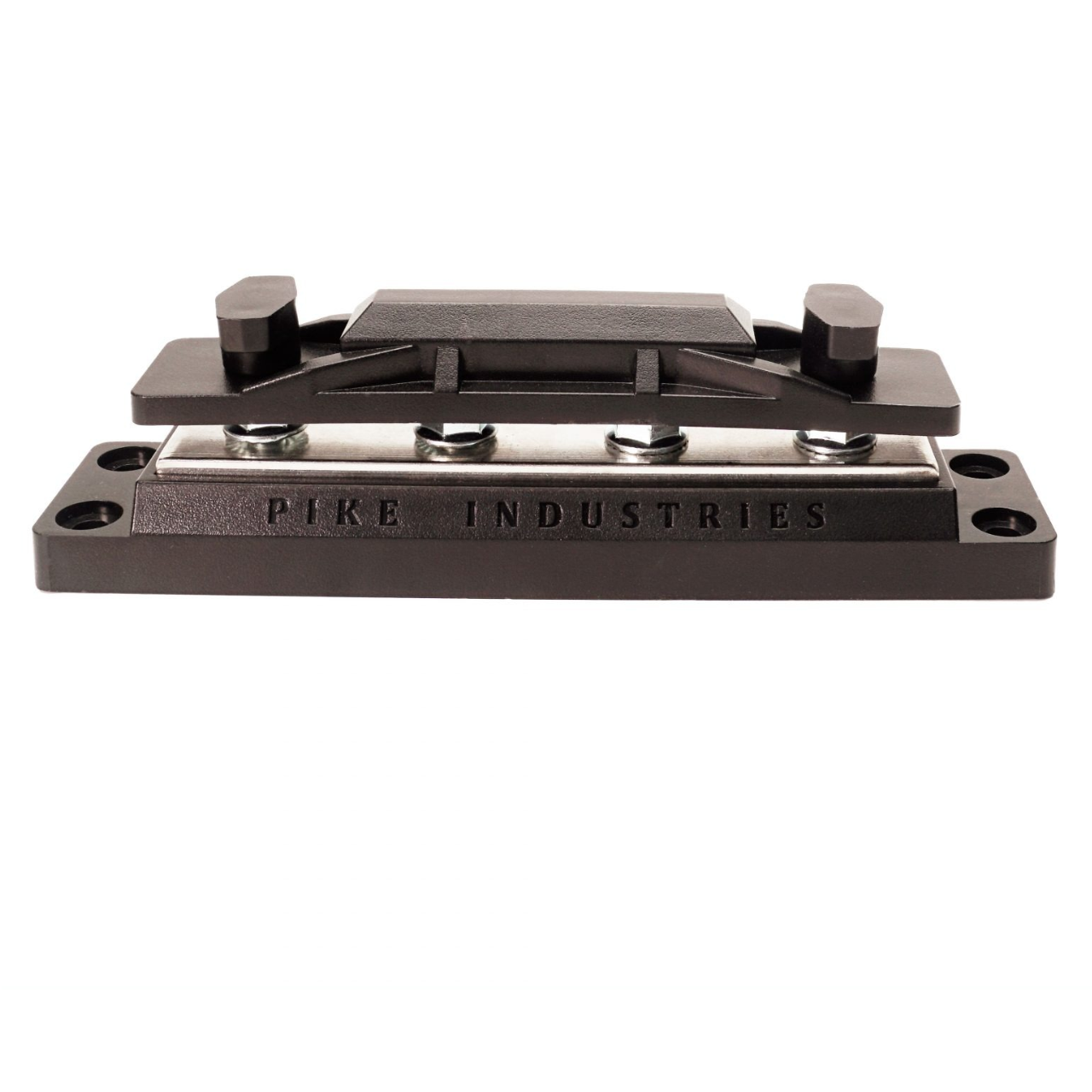

Pike Industries 400A BusBar – Four 5/16″ Zinc Studs (Black only)

SKU: B-BUS-4/400-BLK
$60.00
In stock
Color
Ready to work out of the box!

Need us to pre-program a product before shipping? Ask about our programming service.

Got questions?

Feel free to get in touch

Ask an expert!

Email (208) 263-4290

Assembled in Idaho
Pike Industries 400 Amp Solid Copper Busbar 4 Stud (5/16″ Zinc, Black Only) Common Bus, Terminal Block

Solid copper BusBar for RV, boat & Marine, home, and automotive use in 12-48 volt DC applications. 400 Amp rated, continuous duty cycle, designed to meet increased ampacity requirements when fed by multiple sources through a common busbar, (solar, battery, generator, etc..) Fully rebuildable injection molded ABS Insulator is designed for maximum stability with a wide 4 hole mounting base, (mounting screws included), and impact resistance. High quality materials used for studs, flange nuts, and mounting fasteners. Standard duty models use Grade 5 or higher zinc plated steel fasteners.

Specifications:

  • 6V-48VDC Nominal Voltage
  • Number of Terminal Studs – 4
  • Terminal Type – 5/15″ Stud
  • Continuous Current Rating – 400A DC
  • Base Material – injection molded ABS
  • Bus Material – Solid Copper, (CDA110/UNS C11000) Zinc-plated to ASTM B545-13 Standard
  • Assembled in Idaho, USA
