Quattro 48/5000/70-100/100 120V VE.Bus (UL)

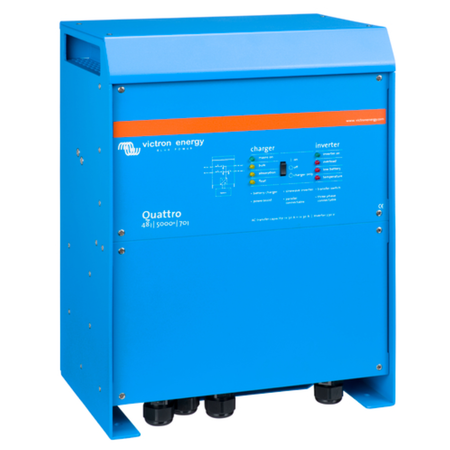

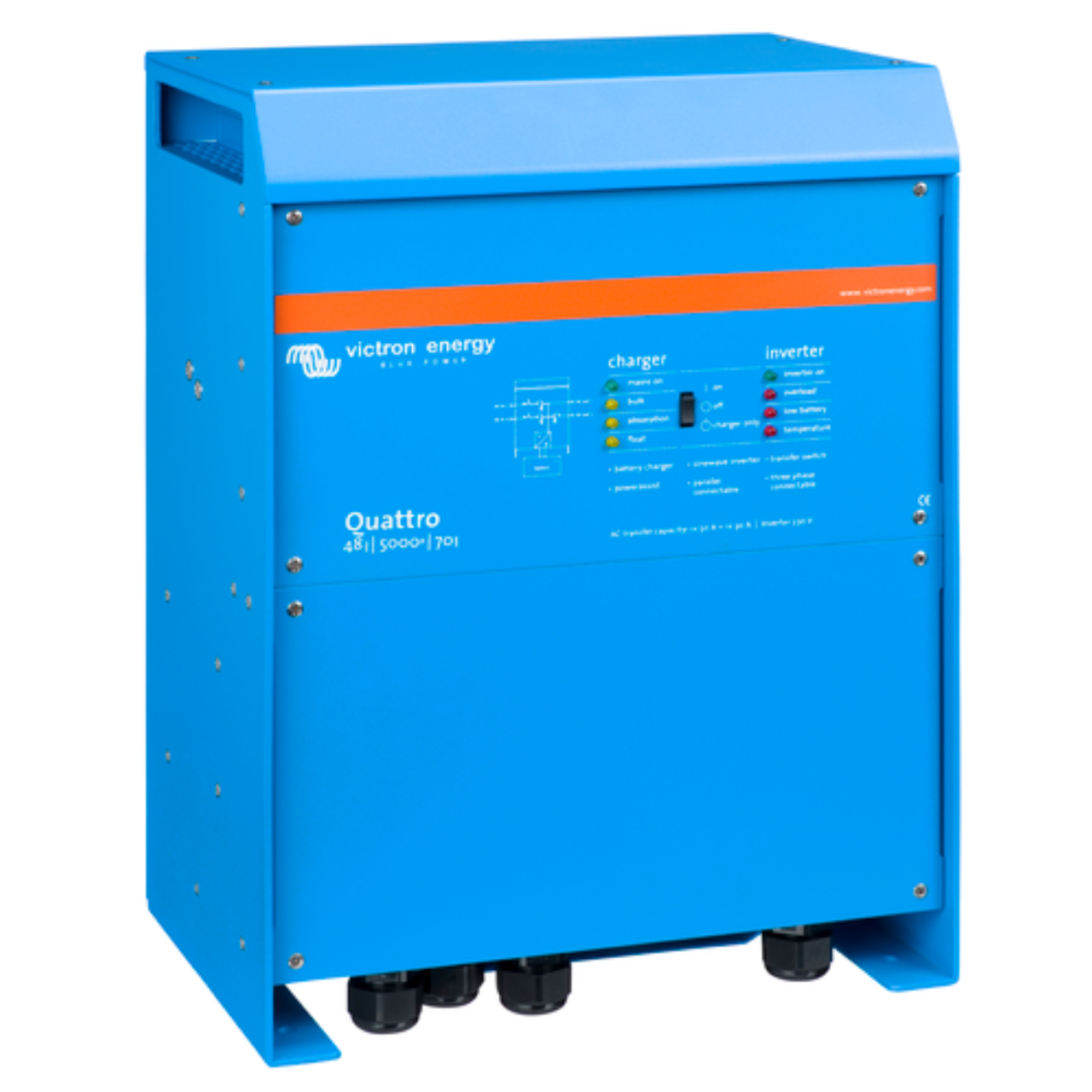

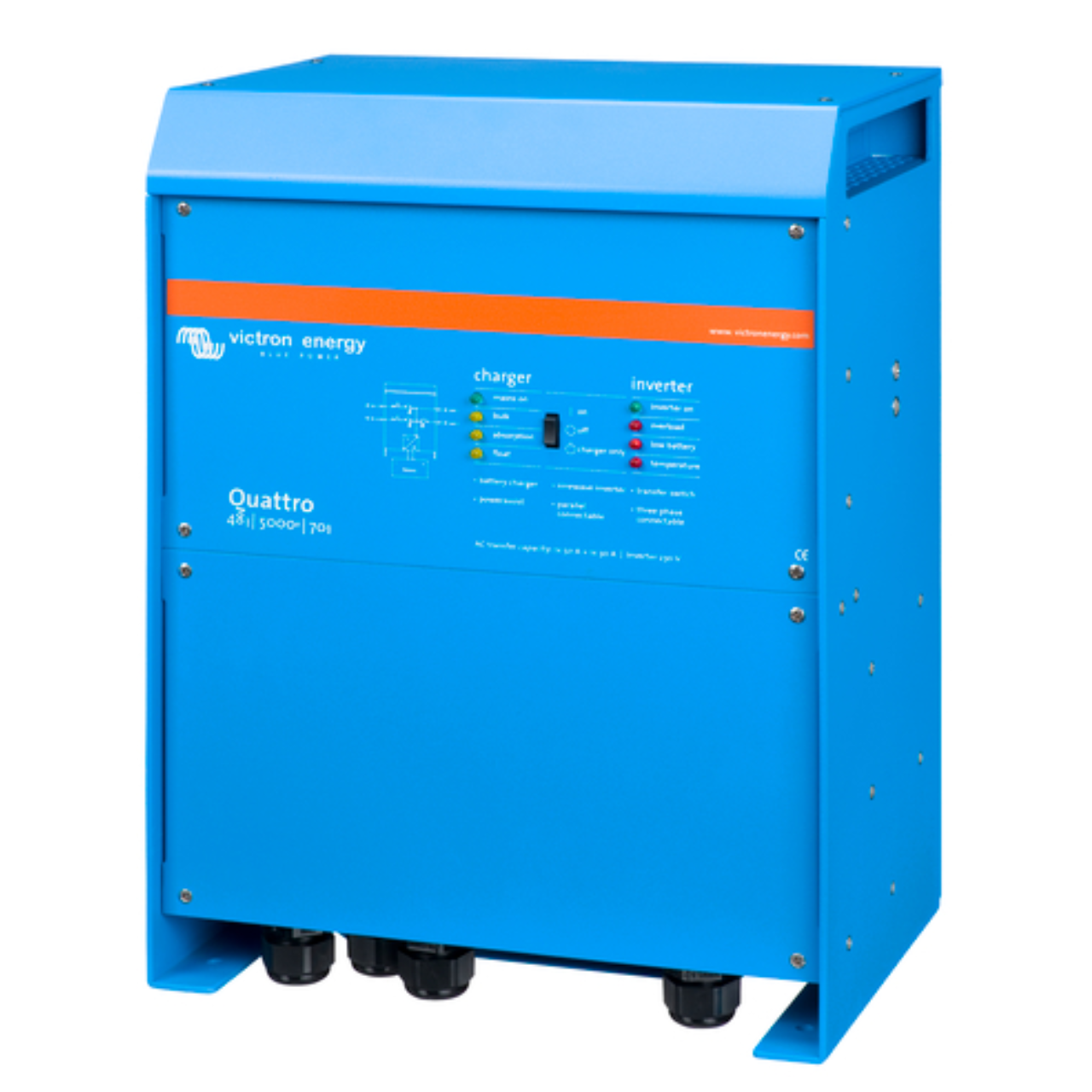

Victron Energy Quattro 48/5000/70-100/100 120V VE.Bus (UL) Pure Sine Wave Inverter/Charger This product ships directly from the Manufacturer. A short lead time may apply. Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation. The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output. The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery. Up to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities. When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Quattro and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Quattro to auto starting a backup generator and more…

Victron Energy is one of the top manufacturers of renewable energy systems, and enjoys an unrivalled reputation for technical innovation, reliability and quality. They have served the off-grid, industrial and vehicle markets as well as both the commercial and leisure marine sectors for over 45 years.

The Quattro Series of inverter/chargers is IEC listed. This unit is UL listed.

• Nominal 48VDC Input (38-66V)
• Nominal 120VAC +/- 2% output voltage
• Nominal 5kW Continuous Output Power
• 70A Battery Charger
• VE.Bus for remote monitoring, parallel, split-phase and three-phase operation.

The Quattro Series Inverter/Charger is loaded with features:

• Dual AC inputs and two AC outputs
• Pure sine wave: Power all your sensitive electronics without worry. The pure sine wave inverter and power factor corrected charger provide clean, reliable inverter power with low total harmonic distortion (THD) of less than 2%.
• Remote monitoring and control
• Available optional extra large AC access via a power center for convenient and clean installs.
• Parallel operation of up to 6 inverters for up to 60kVA of power output.
• Nearly instantaneous transfer relay means uninterrupted power for sensitive electronics.
• Warranty: The Quatrro Series Inverter/Charger is backed by a five year limited warranty.

Unit Weight- 66 lb  /  Shipping Weight 74 lb Dimensions- 13" x 17.5" x 9.6"
