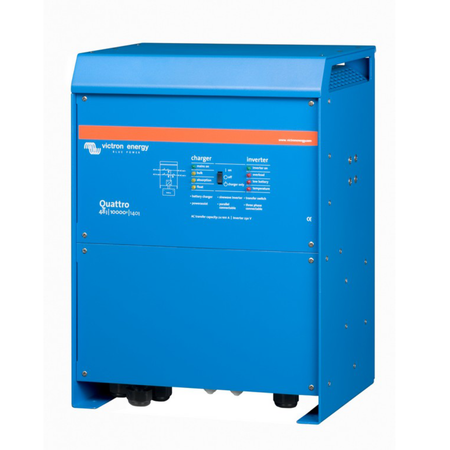

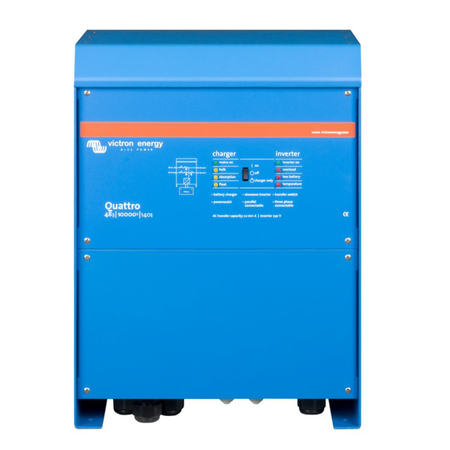

Victron Energy Quattro 48/10000/140-100/100 120V VE.Bus Pure Sine Wave Inverter/Charger (UL-1741)

The Victron Energy Quattro 48/10000/140-100/100 combines a true sine wave inverter, an adaptive battery charger, and automatic AC source switching in a single system. Unlike the MultiPlus, the Quattro can accept two independent AC inputs and automatically connect to the active source.

Advanced features include adaptive charging, PowerAssist technology, dual AC inputs, dual AC outputs, parallel operation for increased power, and split-phase and three-phase system capability.

When paired with a compatible GX device, such as the Cerbo GX, the Quattro can be monitored and controlled locally or remotely through Victron Energy’s VRM platform. Users can access system information and controls from a phone, tablet, laptop, or desktop computer. Remote functions can include system monitoring, inverter settings, and automatic backup generator control.

Victron Energy is one of the leading manufacturers of renewable energy systems and has earned an outstanding reputation for technical innovation, reliability, and quality. The company has served the off-grid, industrial, vehicle, commercial marine, and recreational marine markets for more than 45 years.

This unit is Intertek/ETL listed and certified to the UL 1741 standard.

Additional Features

• Pure sine wave inverter

• Adaptive battery charging technology

• Dual AC inputs with automatic source selection

• Dual AC outputs

• PowerAssist technology

• Power factor corrected charger

• Split-phase and three-phase capability

• VE.Bus communication for remote monitoring and control

• Compatible with GX devices and Victron VRM monitoring

• Low total harmonic distortion of less than 2%

• Parallel operation of up to six units

• Up to 60kVA output with six units operating in parallel

• Nearly instantaneous transfer relay for uninterrupted power

• Five-year limited warranty

Features & Attributes

Nominal DC Input Voltage | 48VDC
DC Input Voltage Range | 38–66VDC
Nominal AC Output Voltage | 120VAC ±2%
Continuous Output Power | 10,000W
Battery Charger Output | 140A
AC Inputs | 2
AC Outputs | 2
Communication Interface | VE.Bus
Certification | Intertek/ETL listed, UL 1741
Unit Weight | 127 lb
Shipping Weight | 182 lb
Dimensions | 24 × 28 × 25.2 in
