PowerSpout Hydro Bundle

This is a build-to-order item. Call today for proper sizing, pricing, and current lead time.

PowerSpout bundles offer a cost-effective way to purchase a complete micro-hydro system package with essential spare parts and accessories included.

The PowerSpout Hydro Bundle is compatible with 12V, 24V, 48V, and grid-tied systems. Proper turbine selection depends on site-specific conditions such as available head, water flow, system voltage, and desired power output.

Contact your sales representative for help selecting the correct PowerSpout configuration for your system.

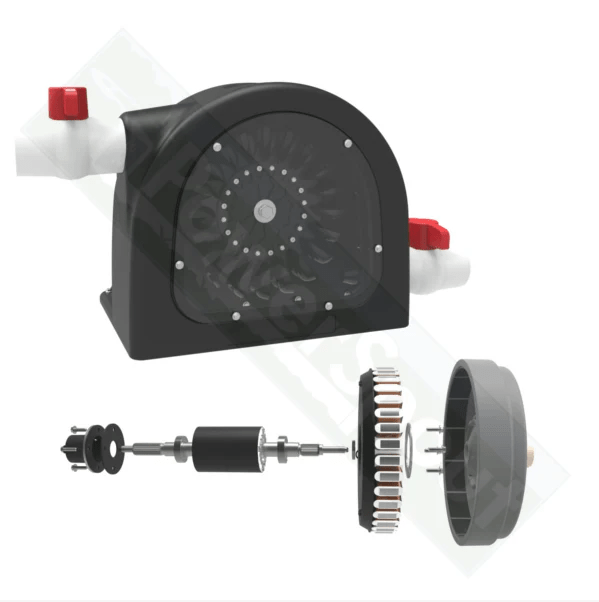

PLT Spare Parts Bundle Includes

• PowerSpout PLT Turbine
• Rechargeable Grease Feeder
• Spare Set of SKF Bearings
• 3 × Spare Sets of Jets
• Spare Bearing Block and Shaft
• Spare PMA
• Two-Year Warranty Upgrade
• DHL Freight Insurance

Spare parts are included with the order to help minimize downtime in the unlikely event that replacement components are needed.

Turbine Specifications

Static Head Range: 3 to 160 m / 10 to 525 ft
Dynamic Head Range: 3 to 130 m / 10 to 430 ft
Maximum Flow per Turbine: 8 to 10 L/s / 130 to 160 GPM
Minimum Flow per Turbine: 0.05 L/s / 0.8 GPM at maximum head
Maximum Power: 1,200W Standard / 1,600W High-Power Version
Maximum Current: 32A standard
Optional Maximum Current: Up to 50A for PLT14 or PLT28 configurations
Dimensions: 470 × 400 × 430 mm / 18.5 × 15.7 × 17 in

Available PLT Versions

Common versions include:

PLT14, PLT28, PLT40, PLT56, PLT80, PLT170, PLT200, and PLT350

The model number refers to the approximate operating voltage, also referred to as cable voltage or MPPV.

The no-load or runaway voltage (Voc) can reach as much as three times the normal operating voltage.

For example, a PLT200 may operate near 200V with a compatible grid-tied inverter but can approach 600V open-circuit voltage when the inverter is not drawing power from the turbine.

System components, wiring, disconnects, and controllers must be selected with the maximum possible open-circuit voltage in mind.

Standard PLT Turbine Includes

• 2 × Jets
• 2 × Valves
• Mid-Range Oil-Filled Pressure Gauge
• Manual Grease Fitting
• 2 m of 4 mm² Tinned PV Wire for Positive, Negative, and Ground
• 2 × MC4 Cable Connectors
• 4 × Tek Screw Fixing Kit
• 4 × Spare Jet Inserts
• Rotor Packing Set Kit, when determined necessary for the application

Valve Connection: 2 in BSP threads are supplied standard. NPT threads are available upon request.

High-Power and Greasing Options

High-power upgrades and automatic greasing options are available for compatible configurations.

A high-power upgrade is required when calculated W/RPM exceeds 0.7.

Select the appropriate upgrade options when ordering, or contact a sales representative for assistance determining the correct configuration.

Warranty

Standard Turbines Up to 1,200W: Three-Year Warranty
Turbines Over 1,200W: Two-Year Warranty

The PLT Spare Parts Bundle also includes a Two-Year Warranty Upgrade as part of the package.
