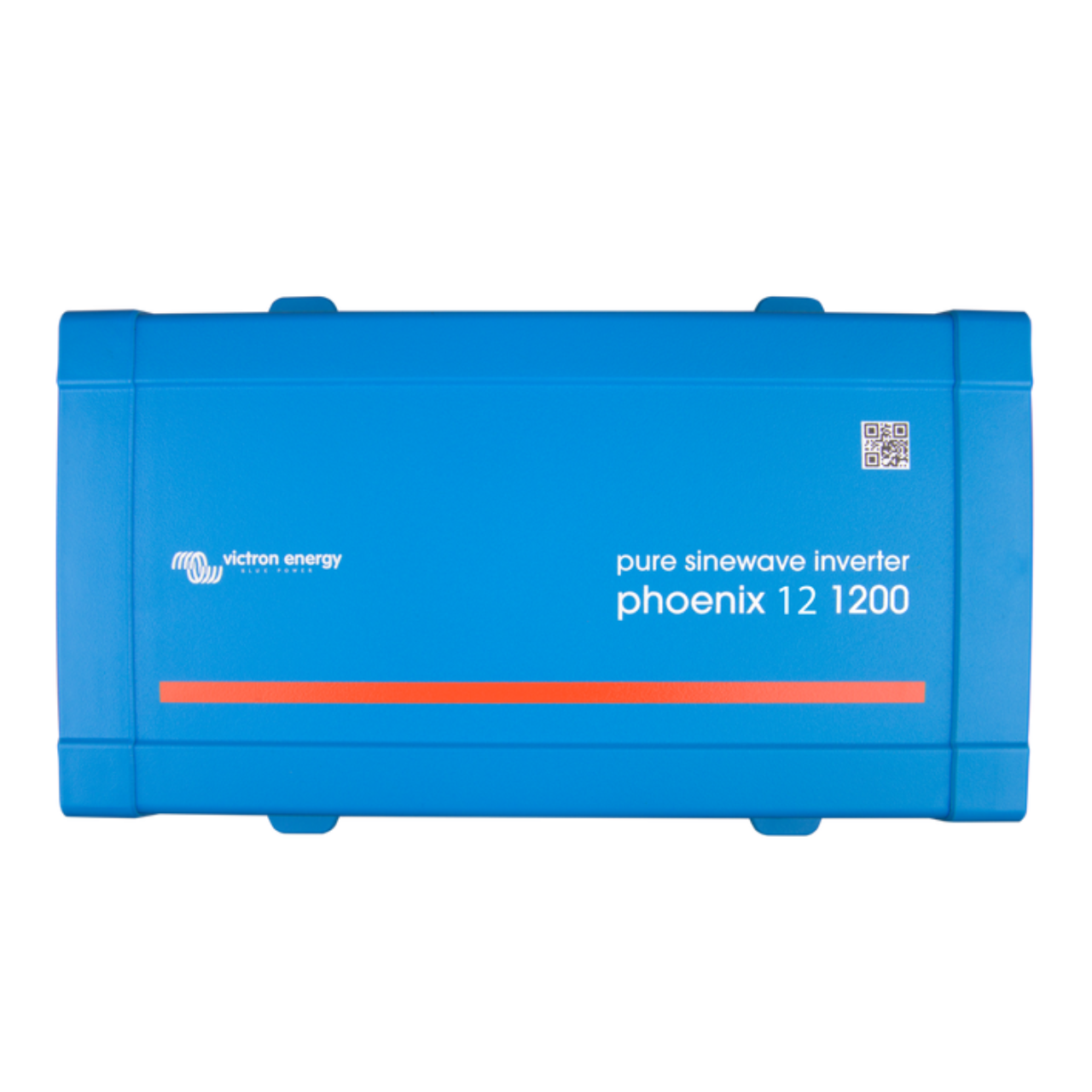

The Victron Energy Phoenix Inverter 12/1200 is a powerful true sine wave inverter with advanced features and remote monitoring capabilities in a compact enclosure. It is well suited for marine, RV, off-grid, and mobile power applications.
The Phoenix includes a VE.Direct communication port for connection to a computer, smartphone, tablet, or network-connected monitoring system using compatible optional equipment. Additional features include high startup power, ECO mode for reduced standby consumption, wired remote on/off capability with an optional remote switch, and Victron Energy’s proven reliability.
For applications that require automatic transfer between the inverter and another AC source, Victron recommends the optional Filax Automatic Transfer Switch. The Filax provides a switchover time of less than 20 milliseconds, helping computers and other sensitive electronic equipment continue operating without interruption.
Victron Energy is one of the leading manufacturers of renewable energy systems and has earned an outstanding reputation for technical innovation, reliability, and quality. The company has served the off-grid, industrial, vehicle, commercial marine, and recreational marine markets for more than 45 years.
The Phoenix Series is IEC listed.
Pure sine wave inverter
VE.Direct communication for remote monitoring
High startup power
ECO mode for reduced standby power consumption
Wired remote on/off capability with optional remote switch
Configurable dynamic low-voltage cutoff
Standard NEMA 5-15R AC output receptacle
Protection against output short circuit
Overload protection
High- and low-battery voltage protection
Overtemperature protection
DC ripple protection
Compatible with optional Filax Automatic Transfer Switch
Low total harmonic distortion of less than 2%
Five-year limited warranty
Nominal DC Input Voltage | 12VDC
DC Input Voltage Range | 9.2–17VDC
Nominal AC Output Voltage | 120VAC ±3%
AC Output Receptacle | NEMA 5-15R
Continuous Output Power | 1200VA
Peak Power | 2200W
Communication Interface | VE.Direct
Certification | IEC listed
Unit Weight | 16.3 lb
Shipping Weight | 18.5 lb
Dimensions | 9.1 × 4.6 × 13.3 in
