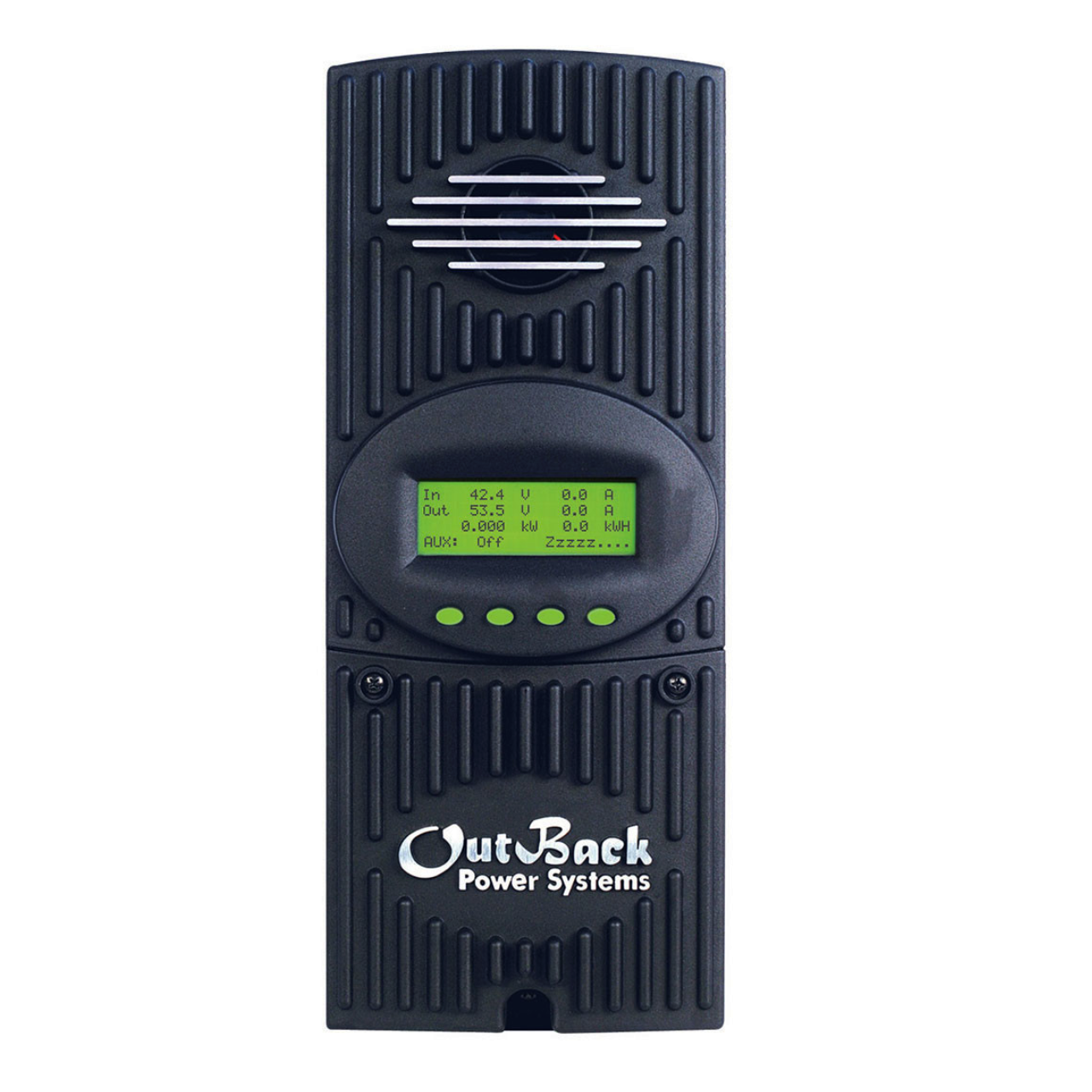

Outback 60A Charge Controller

SKU: C-OB-FM60
$515.00
Out of stock
Out of stock

Ready to work out of the box!

Need us to pre-program a product before shipping? Ask about our programming service.

Got questions?

Feel free to get in touch

Ask an expert!

Email (208) 263-4290

Outback FM60 MPPT Charge Controller Maximum Power Point Tracking can boost solar current up to 30% over a PWM type controller in very cold weather with very low battery voltage. Multi-stage charging: Bulk, Absorption, Float, and Equalize. Can charge battery bank  up to 72 volts nominal PV array; not to exceed 150 volts open circuit. Charger can handle up to 60 amps of DC output current to charge batteries at 12, 24, or 48 volts DC.

PV array can be wired at higher voltage to charge lower voltage battery bank. Charge a 24 volt battery with a 48 volt PV array and reduce wire size and power loss, while increasing the distance possible from the PV array to battery.

The four-line 80 character, backlit LCD display on the Outback FM60 and FM80 shows the PV system's performance. It is also used for easy programming and monitoring of the system's operation. Terminals accept up to 4 gauge wire.

Outback MATE system controller, an optional accessory, connects to the FM60 as a remote control. MATE3 duplicates the built-in control panel that comes with the FM60 and FM80. MATE3 can also program and remote control Outback inverters, from a location 300 feet distant. MATE3 includes a network interface for data logging.

Unit has built in 12 volt auxiliary output to turn on and off the battery vent fan and other loads.

Built in 128 day data logging is very useful for tracking what the battery bank and solar array have been doing each day.

ADDITIONAL SPECIFICATIONS FOR SIZING YOUR SYSTEM

MAX INPUT WATTAGE OF ARRAY- 12V Battery = 750 watts Max 24V Battery = 1500 watts Max 48V Battery = 3000 watts Max 13.5" X 5.75" X 4.5" 12 pounds Five Year Warranty
