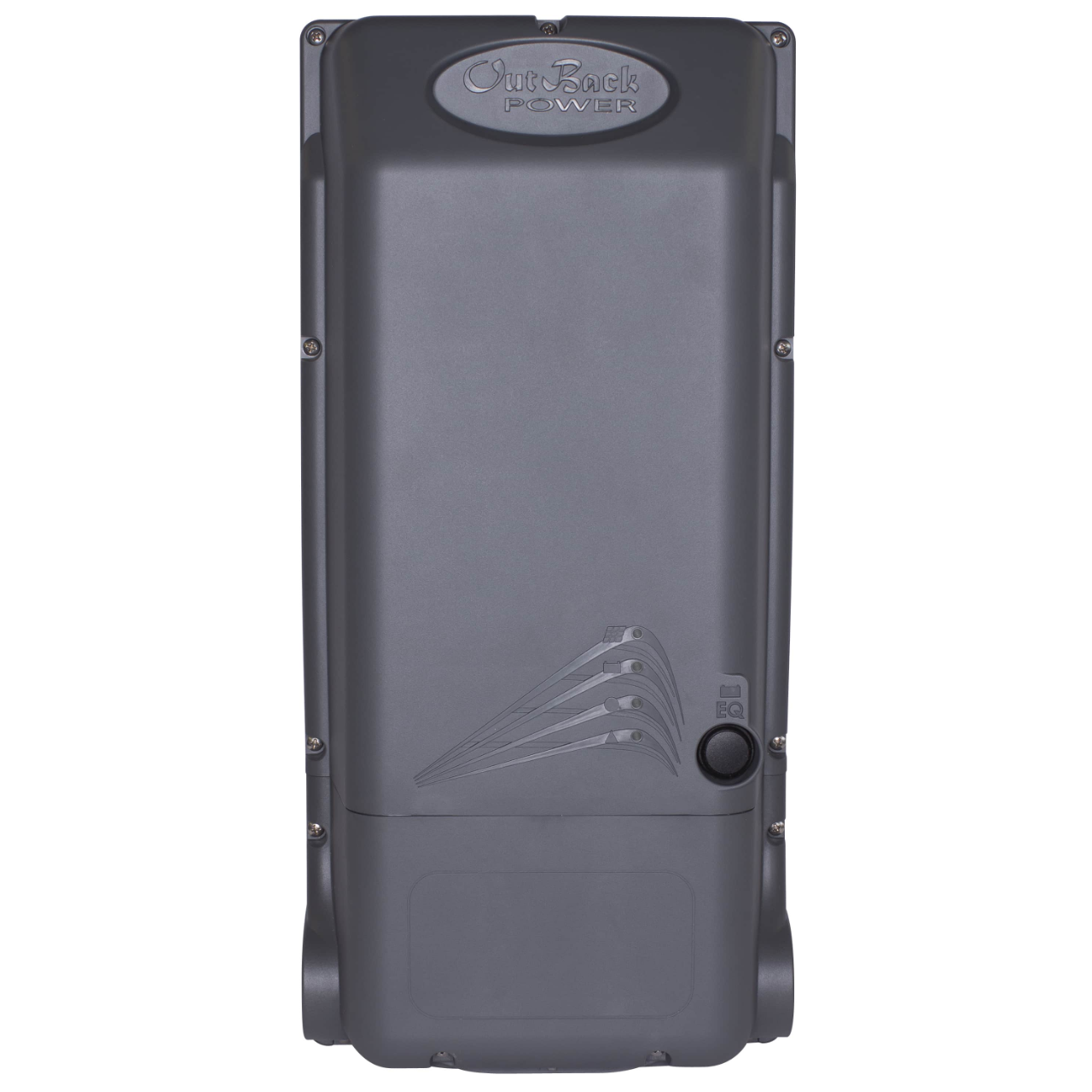

Outback Flexmax 100 – 100A, 300VDC MPPT Charge Controller
Ready to work out of the box!
Need us to pre-program a product before shipping? Ask about our programming service.
Got questions?
Feel free to get in touch
Ask an expert!
PV array can be wired at higher voltage to charge lower voltage battery bank. Charging a 24 volt battery with a 48 volt PV array and reduce wire size and power loss, while increasing the distance possible from the PV array to battery.
Terminals accept up to 4 gauge wire.
This version of the FM100 includes AFCI, ground fault protection, RSD compatiblilty and NEMA 3R rating.
Outback MATE3S system controller, a required accessory, connects to the FM100 as a remote control. MATE3S can also program and remote control Outback inverters, from a location 300 feet distant. MATE3S includes network interface for data logging.
Unit has a built in 12 volt auxiliary output to turn on and off the battery vent fan and other loads.
Built in 128 day data logging is very useful for tracking what the battery bank and solar array has been doing each day.
ADDITIONAL SPECIFICATIONS FOR SIZING YOUR SYSTEM MAX INPUT WATTAGE OF ARRAY- 24V Battery = 3500 watts Max 48V Battery = 7000 watts Max 22" X 8.8" X 6" / Shipping 22.5" x 12" x 10" 18.3 lbs / shipping 22 lbs Five Year Warranty
