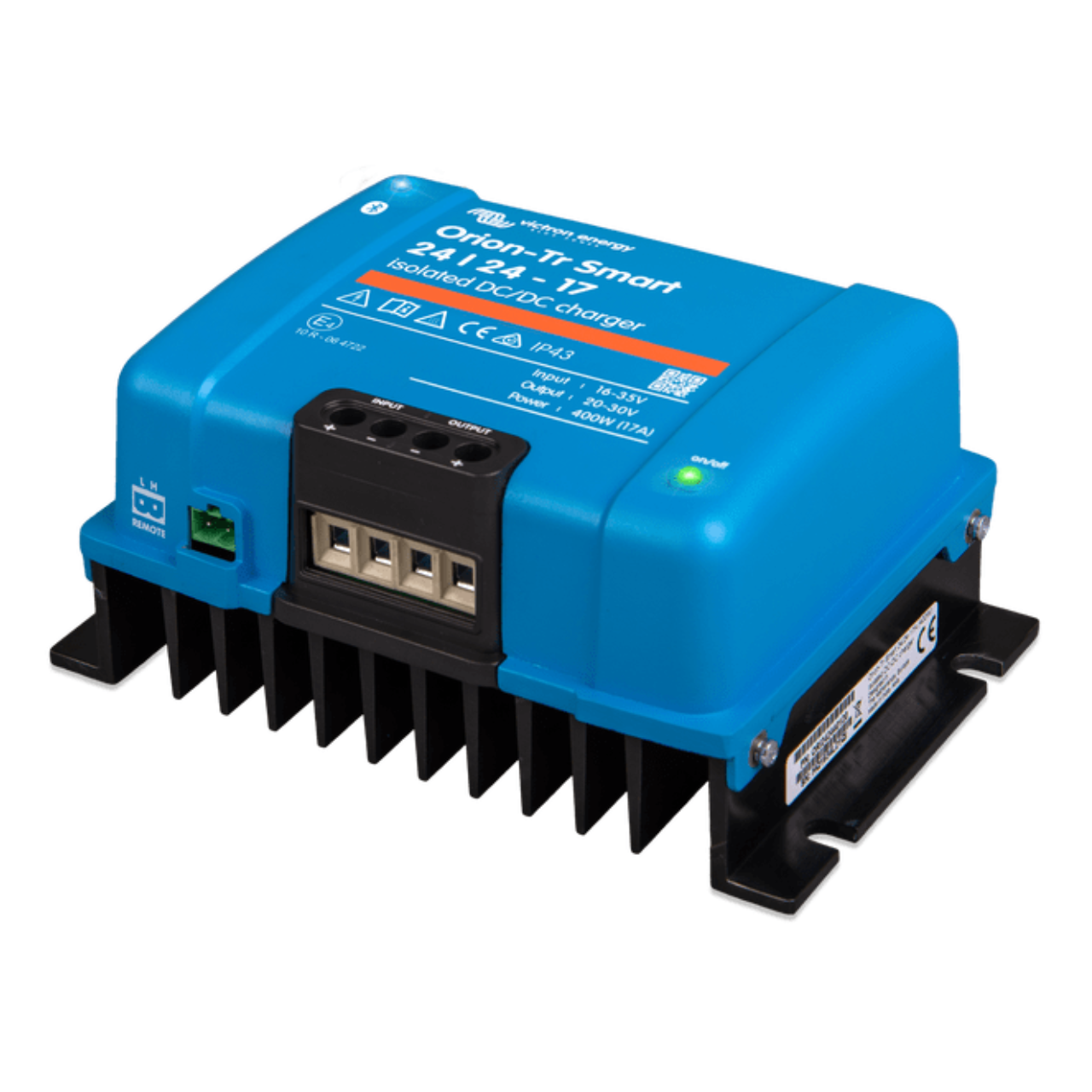

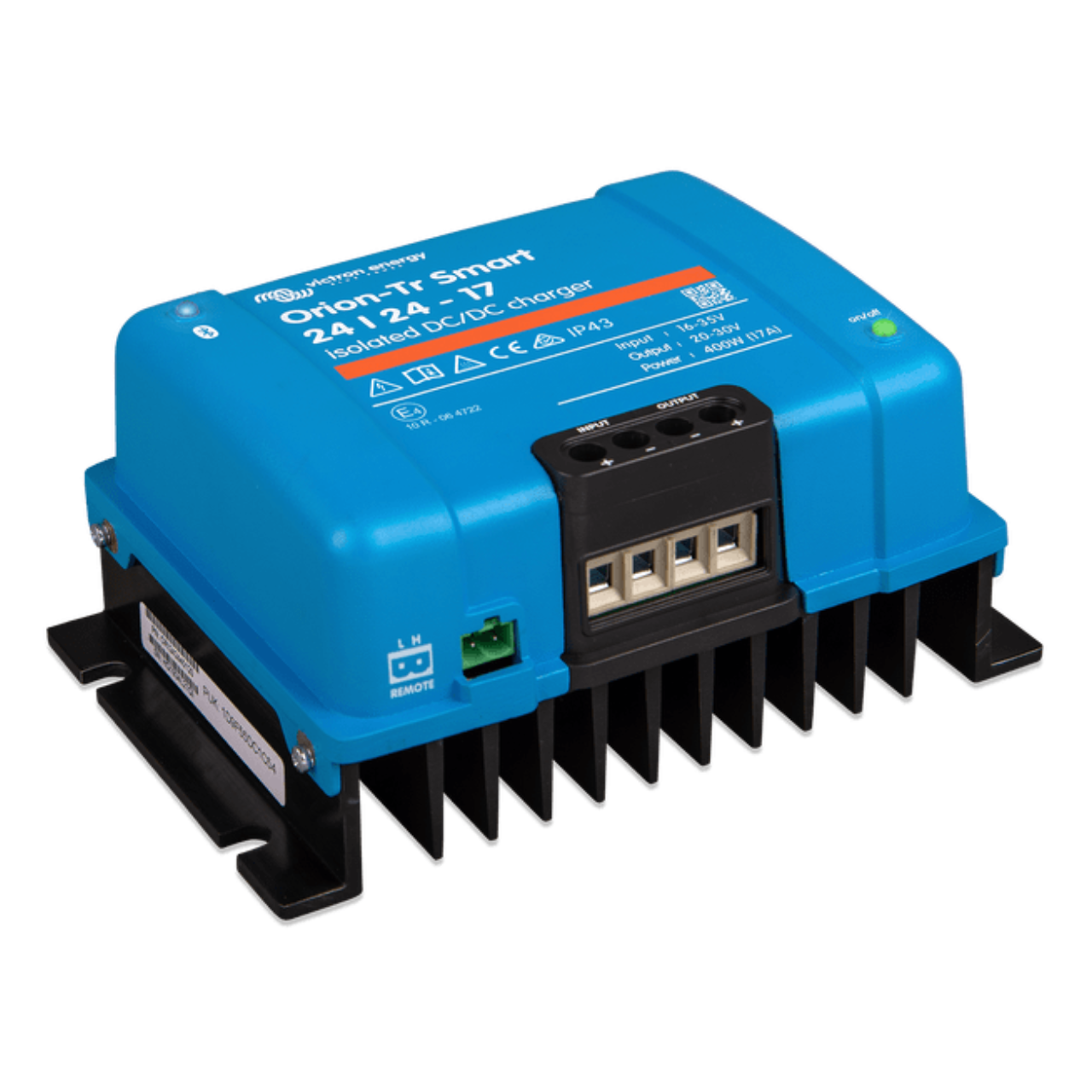

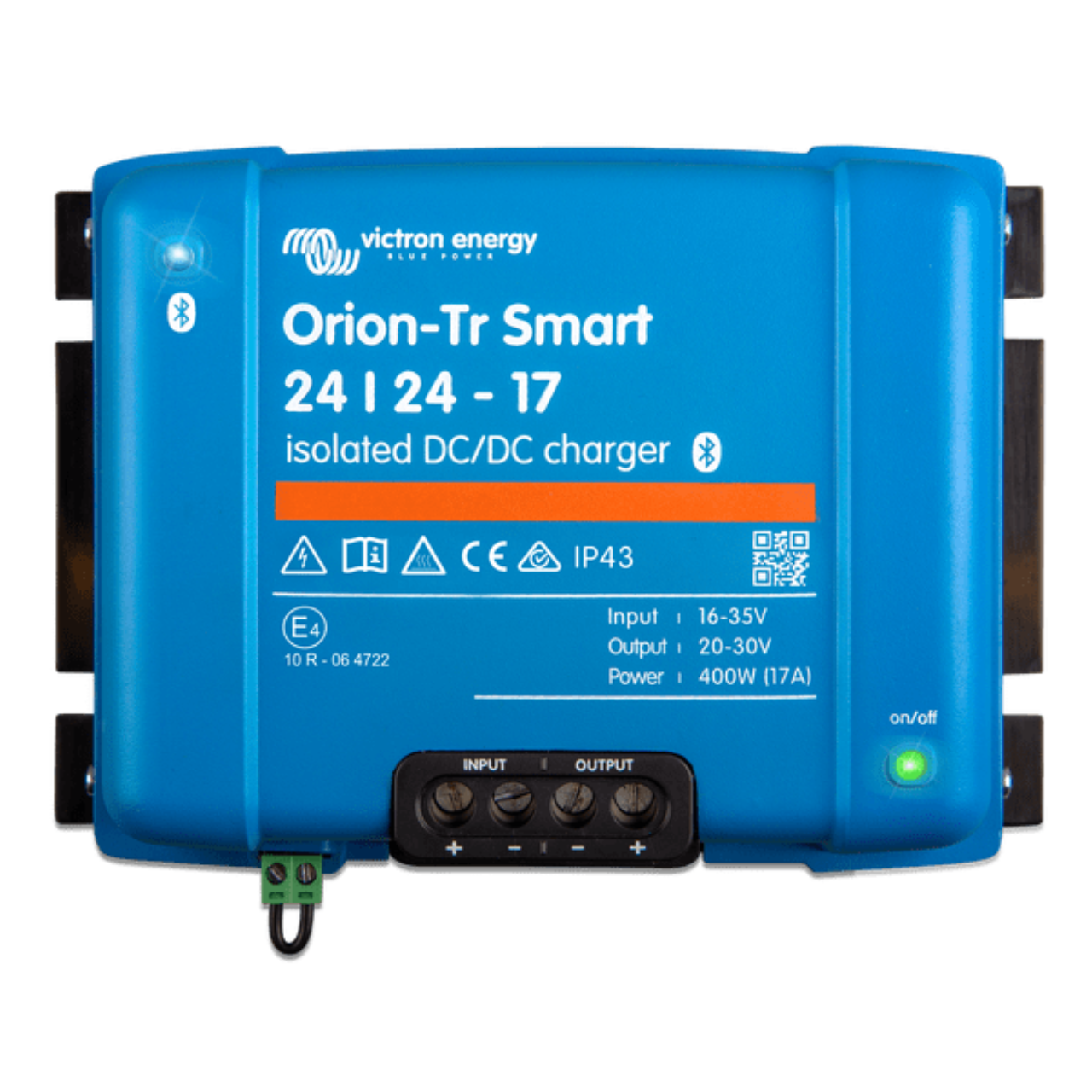

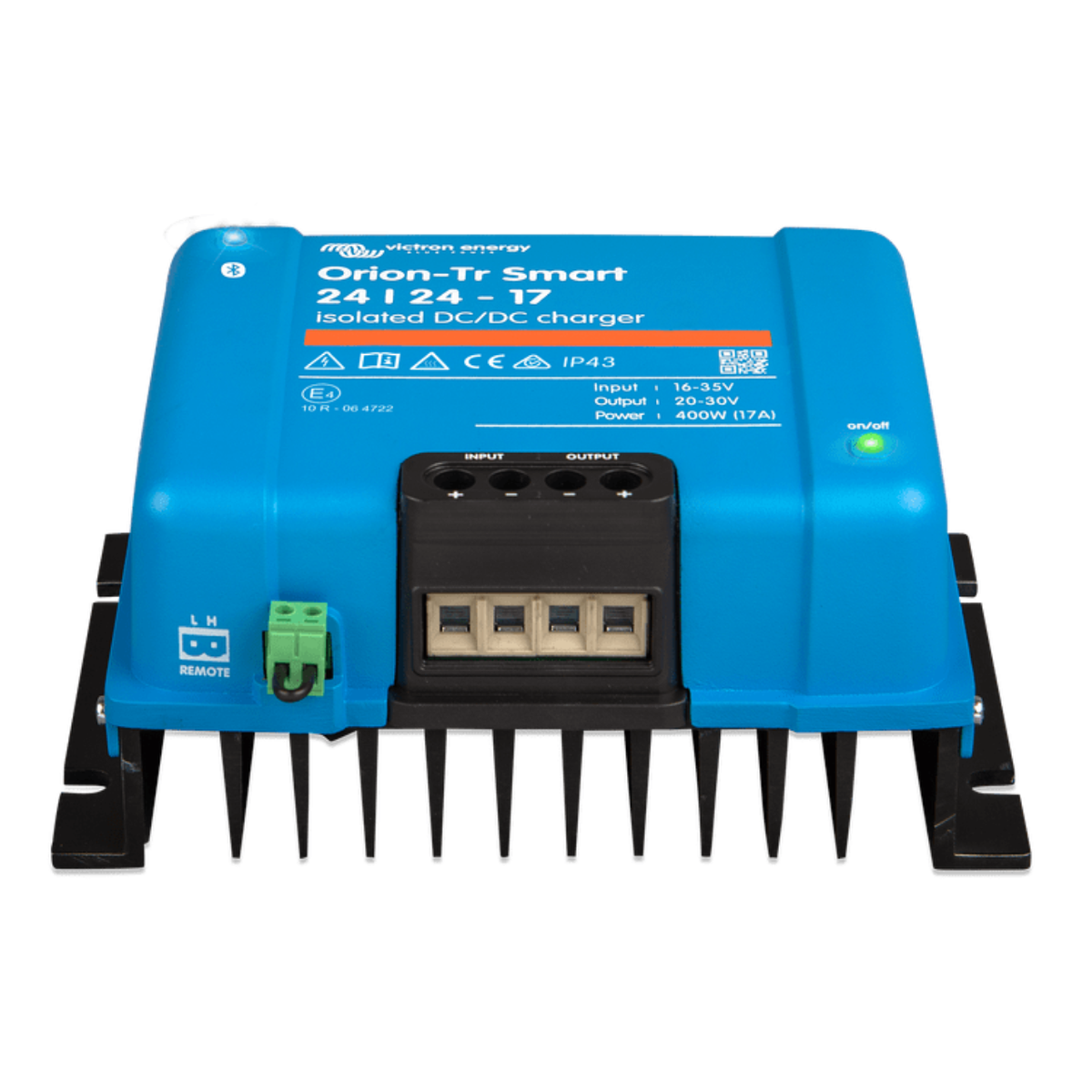

The Victron Energy Orion-Tr Smart 24V to 24V 17A DC-DC Charger is a professional adaptive 3-stage DC-DC charger with built-in Bluetooth. It is designed for use in dual-battery systems in vehicles and boats, where the alternator and starter battery are used to charge the service battery.
The Orion-Tr Smart can be monitored and programmed via Bluetooth and remotely controlled using a remote on/off switch. It also features an engine-running detection mechanism, adjustable output voltage, short-circuit protection, and high-temperature electronic protection.
The charger is suitable for both lead-acid and lithium batteries. Multiple units can be connected in parallel to increase output power.
Victron Energy is one of the leading manufacturers of renewable energy systems and has earned an outstanding reputation for technical innovation, reliability, and quality. The company has served the off-grid, industrial, vehicle, commercial marine, and recreational marine markets for more than 45 years.

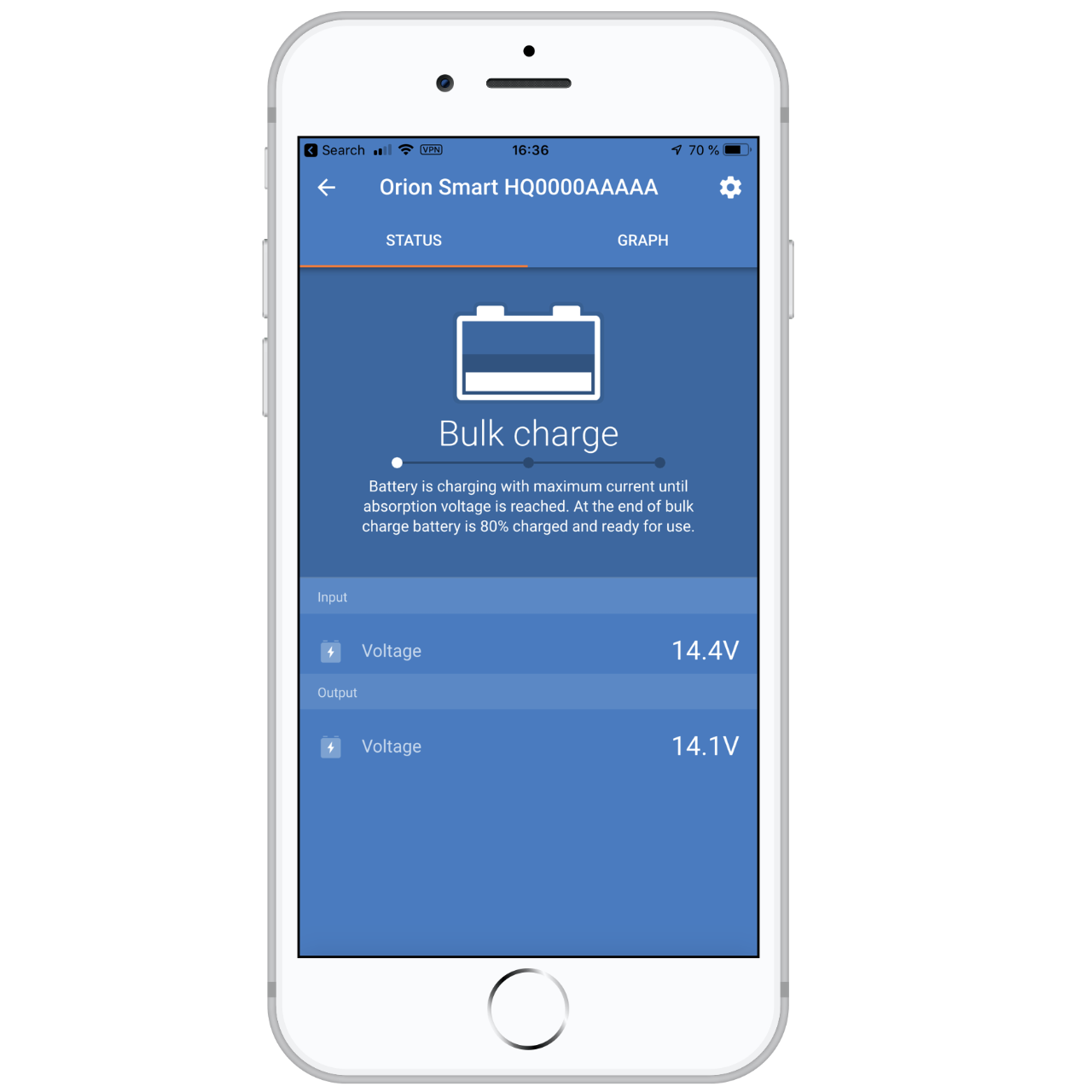

Built-in Bluetooth monitoring and programming
Adaptive 3-stage charging
Remote on/off capability
Engine-running detection
Adjustable output voltage
Suitable for lead-acid and lithium batteries
Short-circuit protection
Low-voltage protection
Overtemperature protection
Multiple units can be connected in parallel
Terminal connections accept up to 6 AWG stranded cable
Five-year limited warranty
Input Voltage Range | 20–35VDC
Nominal Output Voltage | 24.2VDC
Adjustable Output Voltage Range | 20–30VDC
Continuous Output Current | 17A at nominal output voltage and 40°C
Weight | 3.5 lb
Dimensions | 5.1 × 7.3 × 2.8 in
