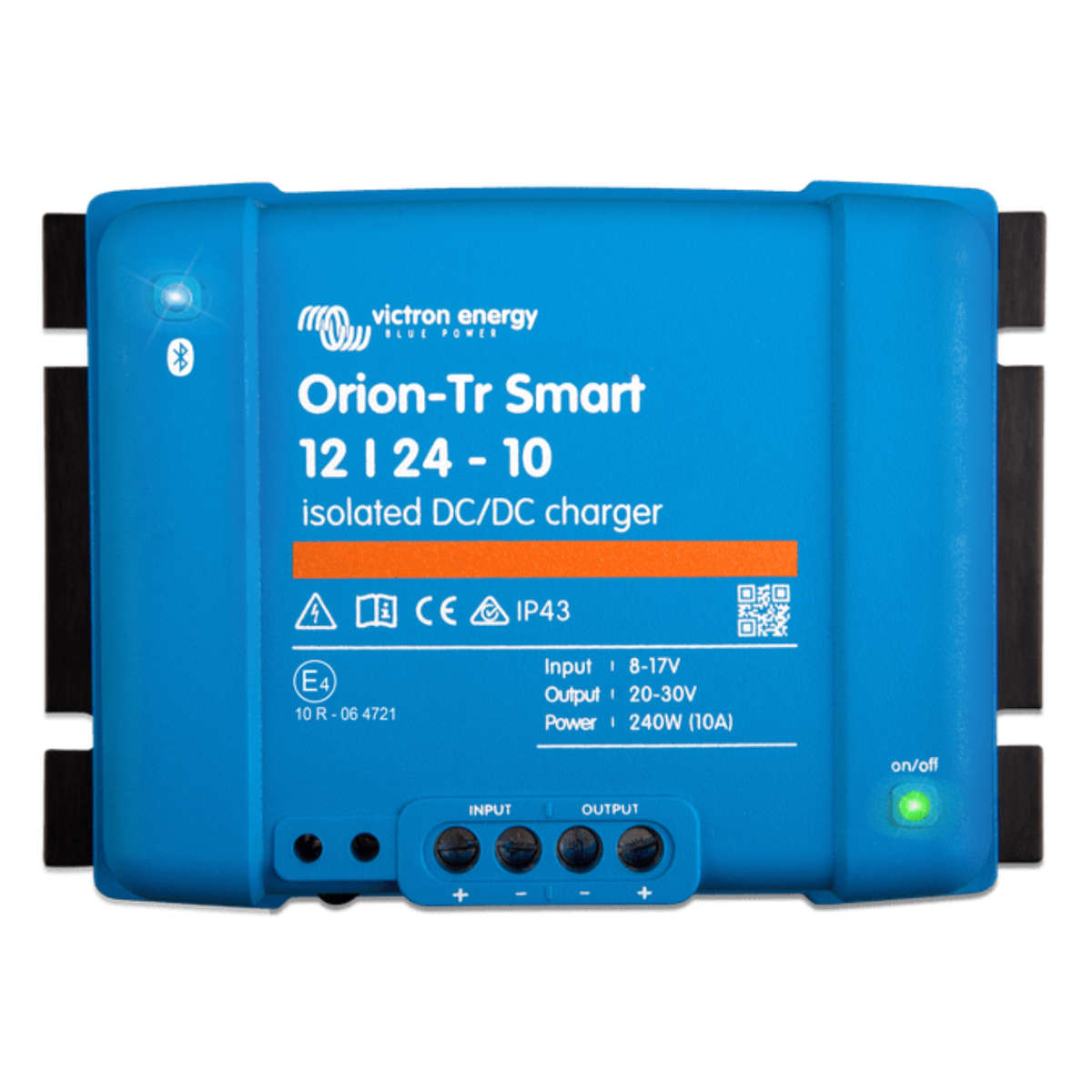

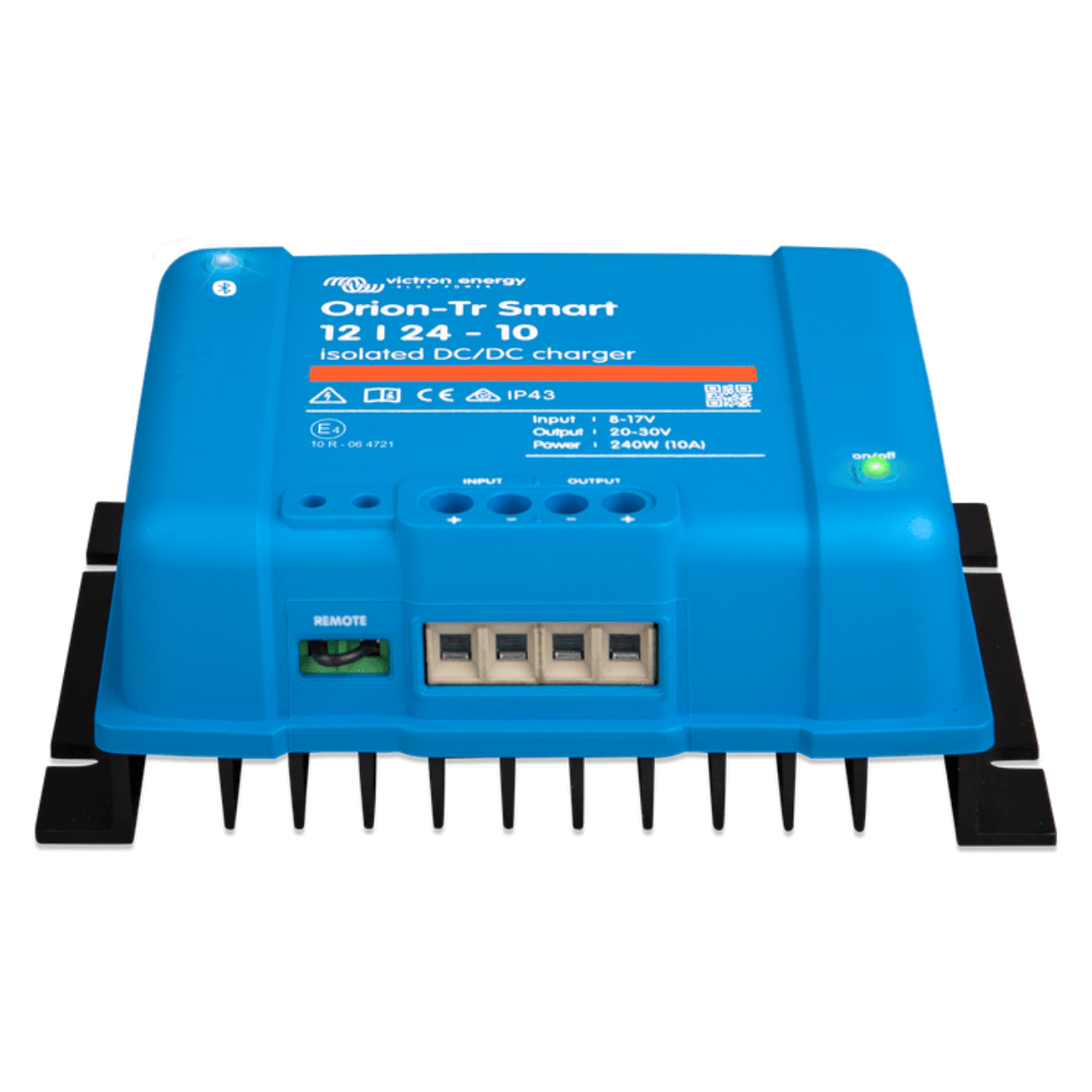

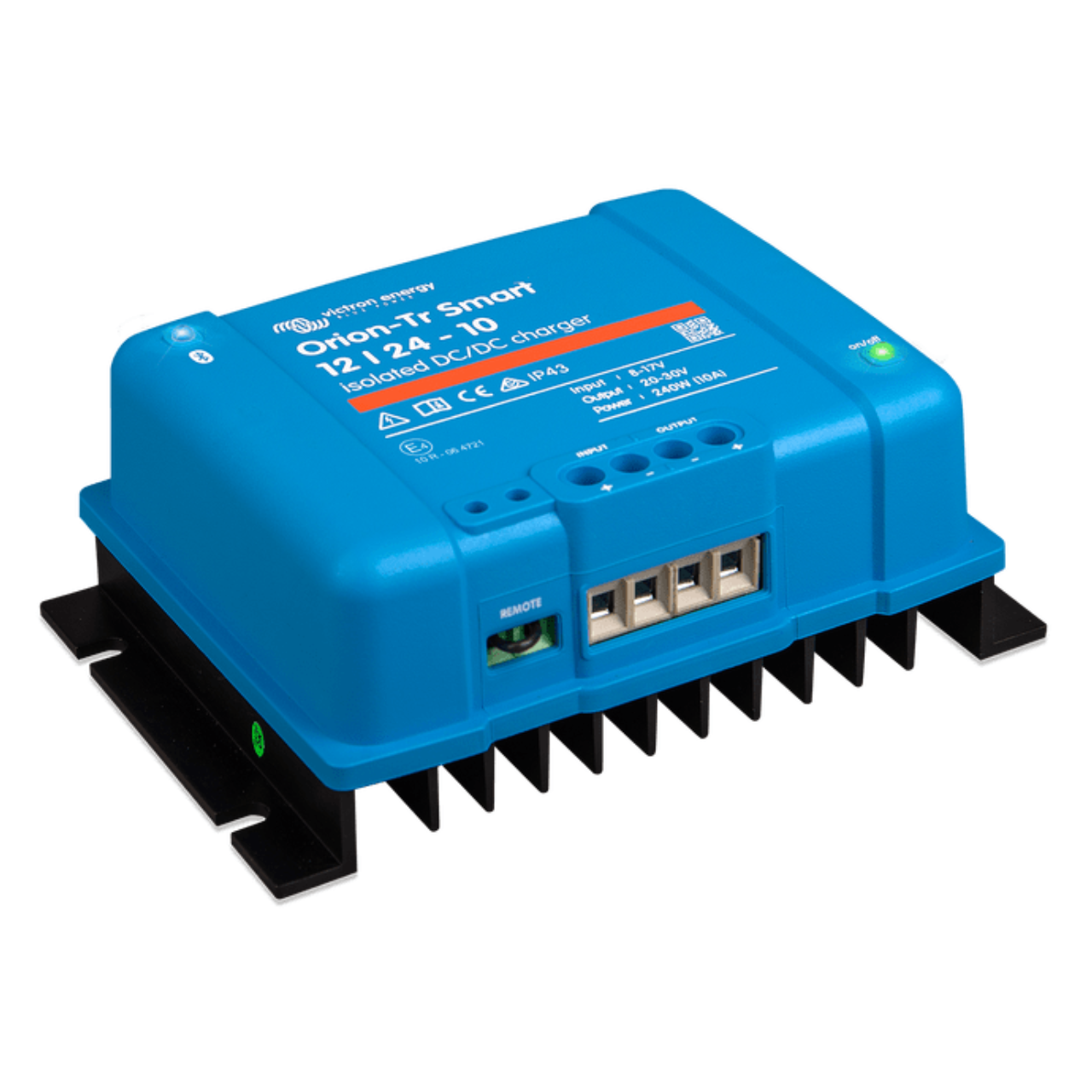

The Victron Energy Orion-Tr 12V to 24V 10A DC-DC Charger is a powerful isolated DC-DC charger designed for off-grid, battery backup, marine, and RV applications.
The remote on/off feature eliminates the need for a high-current switch in the input wiring. It can be operated using a low-power switch or, for example, an engine run/stop switch.
Victron Energy is one of the leading manufacturers of renewable energy systems and has earned an outstanding reputation for technical innovation, reliability, and quality. The company has served the off-grid, industrial, vehicle, commercial marine, and recreational marine markets for more than 45 years.
Victron Energy Orion DC-DC Chargers are CE listed.
Remote on/off capability
Adjustable output voltage
Protection against output short circuit
Low-voltage protection
Overtemperature protection
Terminal connections accept up to 6 AWG stranded cable
Five-year limited warranty
CE listed
Input Voltage Range | 8–17VDC
Nominal Output Voltage | 24.2VDC
Adjustable Output Voltage Range | 20–30VDC
Continuous Output Current | 10A at nominal output voltage and 40°C
Weight | 3 lb
Dimensions | 2.76 × 5.12 × 7.32 in
Part No. | ORI122424120
