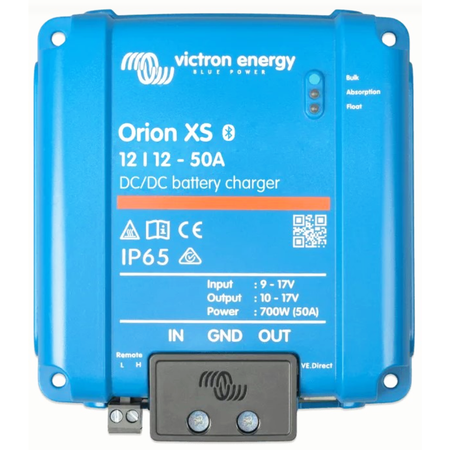

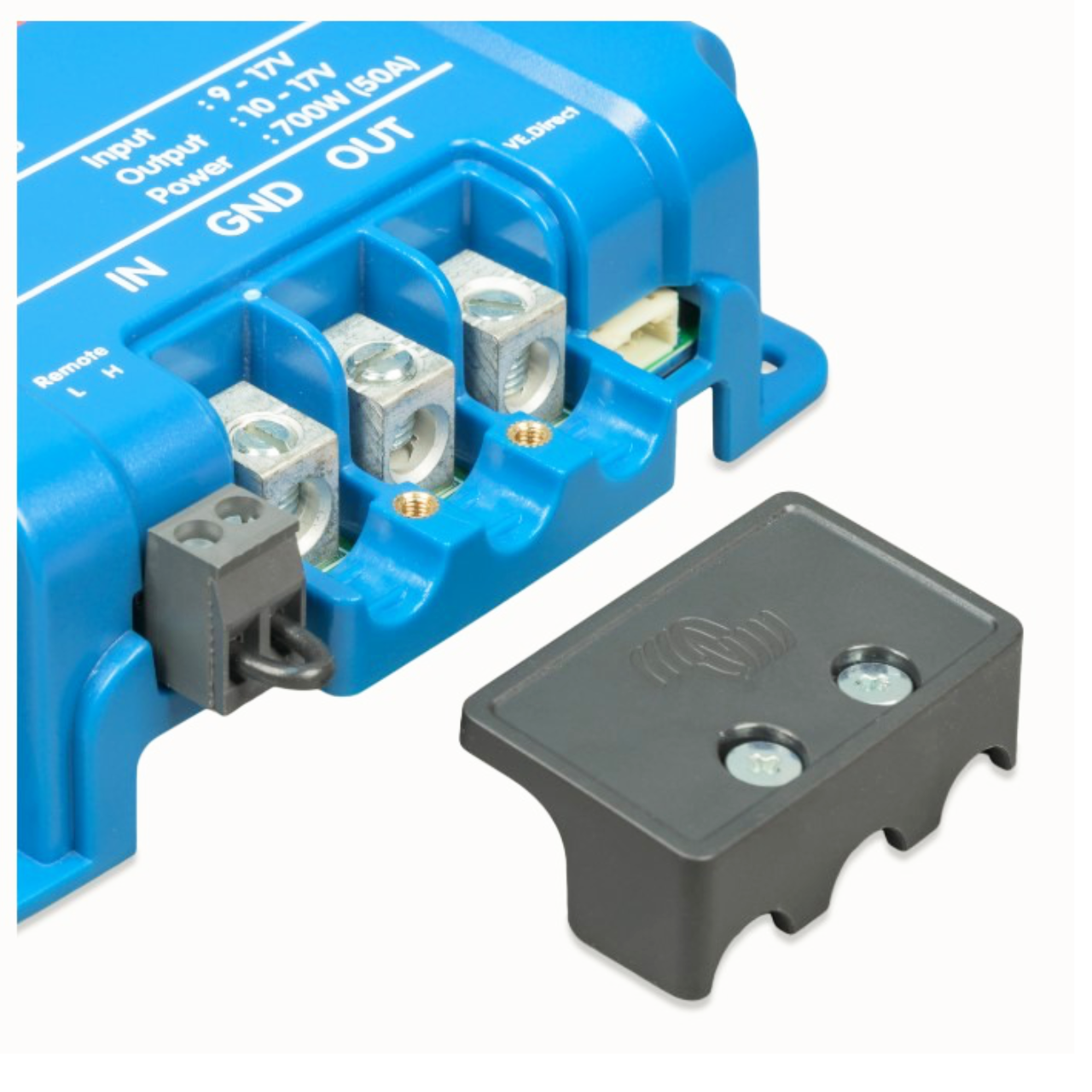

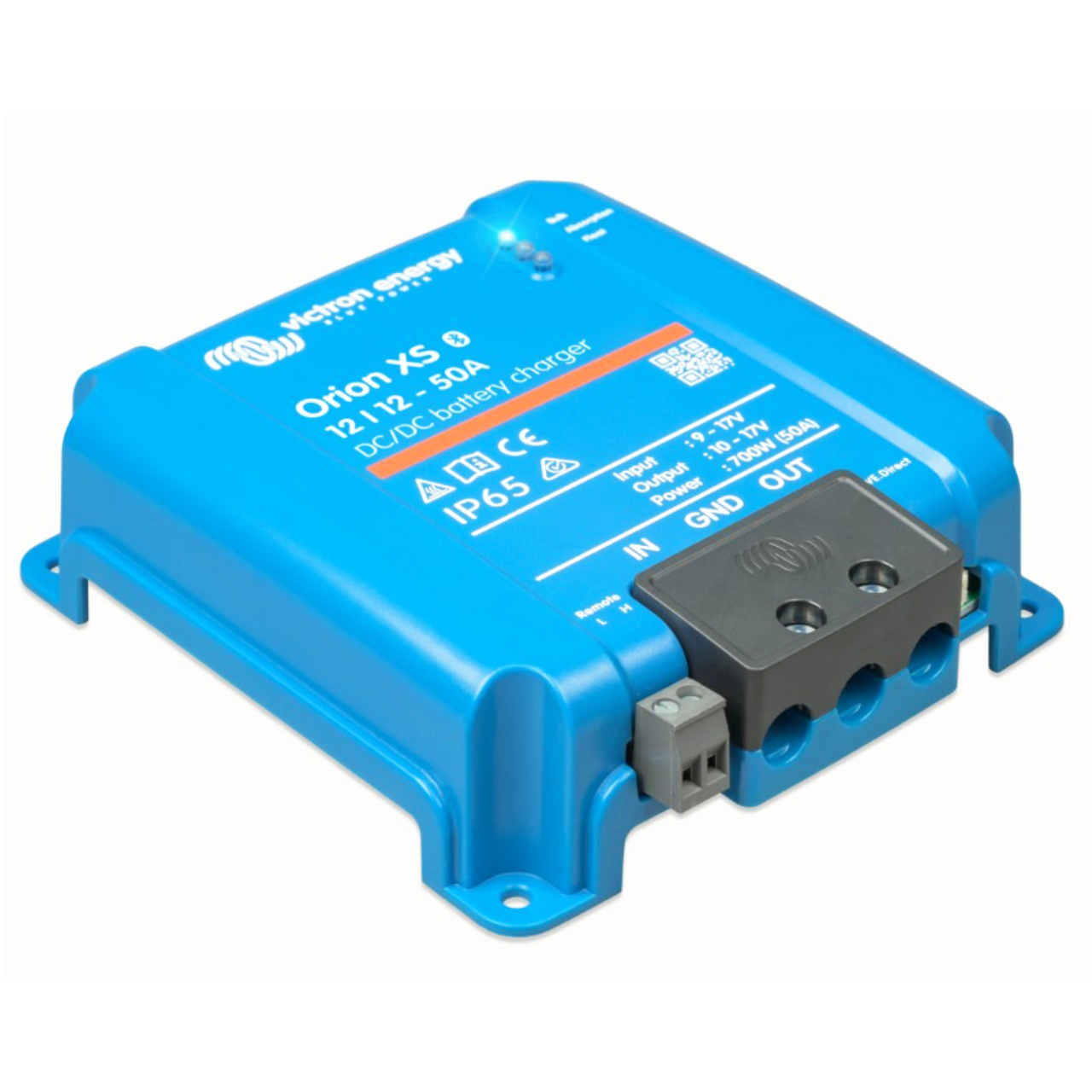

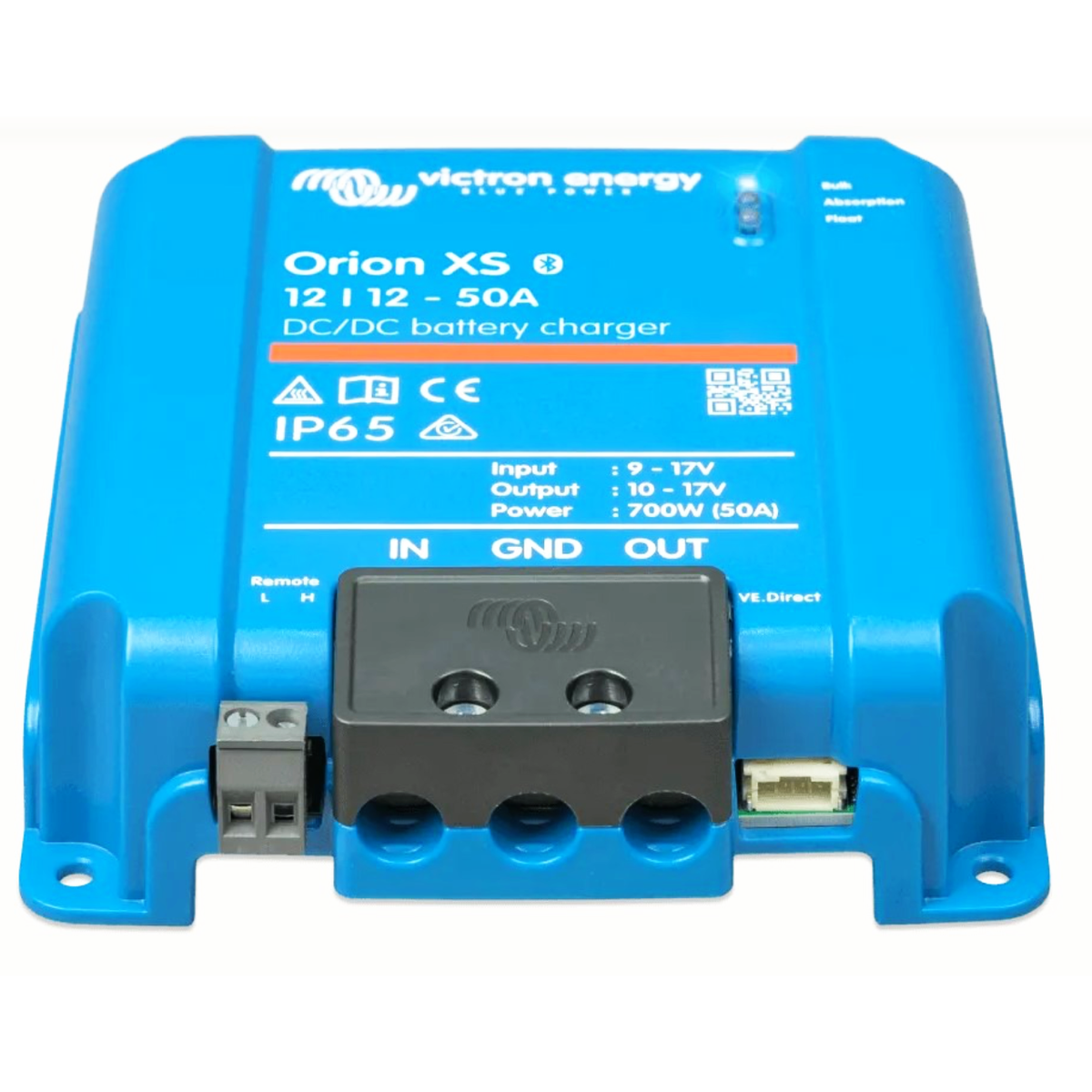

Orion XS DC-DC battery charger 12V to 12V 50A

Victron Energy Orion-Tr Smart 12V to 12V 50A DC-DC Non-Isolated Charger or Power Supply This product ships from the Manufacturer. A short lead time may apply. Engineered from the ground up, the Orion XS redefines adaptive DC-DC battery charging. This device not only ensures top-tier performance but also guarantees the safety of your system. The Orion XS serves as a DC-DC battery charger or as a power supply, offering a wide input and output voltage range. This is especially significant in the case of vehicles with a smart alternator (charging voltage too low even when engine is running) or in the presence of extended cable lengths, as is often the case in boats and RVs, which leads to voltage drops. In such scenarios, precise and controlled charging is imperative to fully charge a service battery while still protecting the starter/input battery from discharge. Great for use in dual battery systems charged with an (intelligent) alternator. When the engine is off, the Orion XS isolates the service battery, so no power is drawn from the starter battery. With engine running detection, the charger only starts up when the engine is running. Lithium batteries can draw a lot of power, especially when empty. This can cause alternators to overheat. The Orion XS allows you to limit the input current to any value, matching the alternator's safe zone for perfect charging. Intelligent alternators (as found in Euro 5/6 engines) do not continuously provide a high enough voltage. The Orion XS boosts this lower voltage to the perfect charging level. Regardless of the variable input voltage, lower or higher, the charger maintains the chosen charging algorithm for perfect battery charging. The adjustable output current means the right charge current can be chosen for any service battery. Victron Energy is one of the top manufacturers of renewable energy systems, and enjoys an unrivalled reputation for technical innovation, reliability and quality. They have served the off-grid, industrial and vehicle markets as well as both the commercial and leisure marine sectors for over 45 years.

• Adjustable charging current 1-50A. The charge current is adjustable with a minimum step size of 0.1 A
• Input Voltage range 9-17V
• Output Voltage Range 10-17V
• Smart alternator compatibility
• Adaptive 4-stage charge algorithm (includes fully programmable charging algorithms and eight pre-programmed battery settings)
• Low temperature shutdown and input undervoltage protection
• Remote on/off via connector or by VictronConnect App
• Comprehensive electronic protection (overload, short circuit, excessive temperature)
• Multiple units can be paralleled together
• Built in bluetooth smart connection
• IP65 Protection against dust and heavy rain

Unit Weight - 1 lb Dimensions - 6" x 6" x 2" Warranty: Victron Energy Orion is backed by a five year limited warranty.
