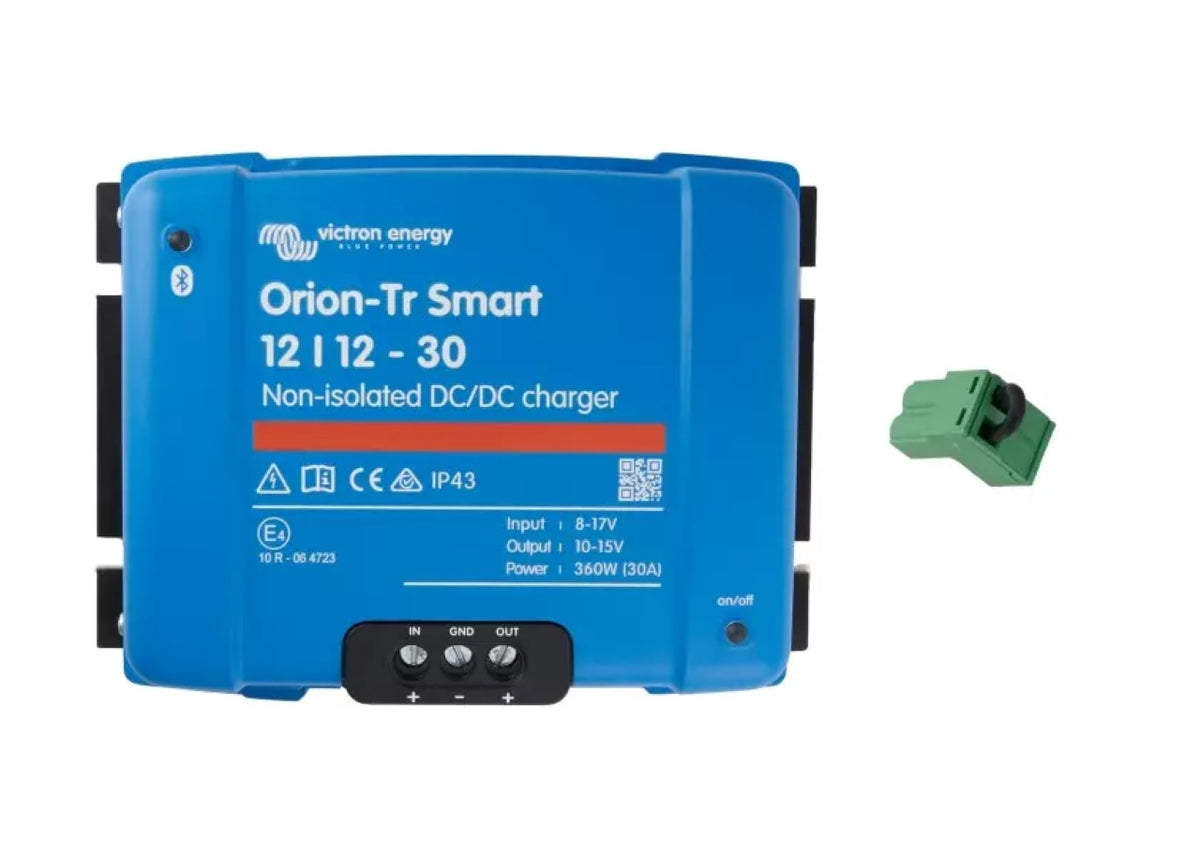

The Victron Energy Orion-Tr Smart 12V to 12V 30A Non-Isolated DC-DC Charger is a professional adaptive 3-stage charger designed for dual-battery systems in vehicles, boats, RVs, and off-grid power applications. It uses the alternator and starter battery to efficiently charge a service or auxiliary battery.
Built-in Bluetooth allows the charger to be monitored and programmed through the VictronConnect app. The Orion-Tr Smart also features remote on/off capability and engine-running detection, helping automate charging when the vehicle or vessel is operating.
The charger is suitable for both lead-acid and lithium batteries and can be connected in parallel with additional units to increase total charging capacity. Its rugged design, high-temperature operation, and integrated protection features make it a dependable solution for demanding mobile and marine electrical systems.
Built-in Bluetooth monitoring and programming
Adaptive 3-stage charging
Non-isolated DC-to-DC design
Remote on/off capability
Engine-running detection
Suitable for lead-acid and lithium batteries
Multiple units can be connected in parallel
Short-circuit protection
High-temperature protection
Designed for vehicle, marine, RV, and off-grid applications
Input Voltage Range | 10–17VDC
Nominal Output Voltage | 12.2VDC
Continuous Output Current | 30A
Rated Power | 360W
Efficiency | 87%
Operating Temperature | -20°C to 55°C, with derating
Dimensions | Approx. 5.1 × 7.3 × 3.2 in
Weight | Approx. 4 lb
Isolation | Non-Isolated
Part Number | ORI121236140
