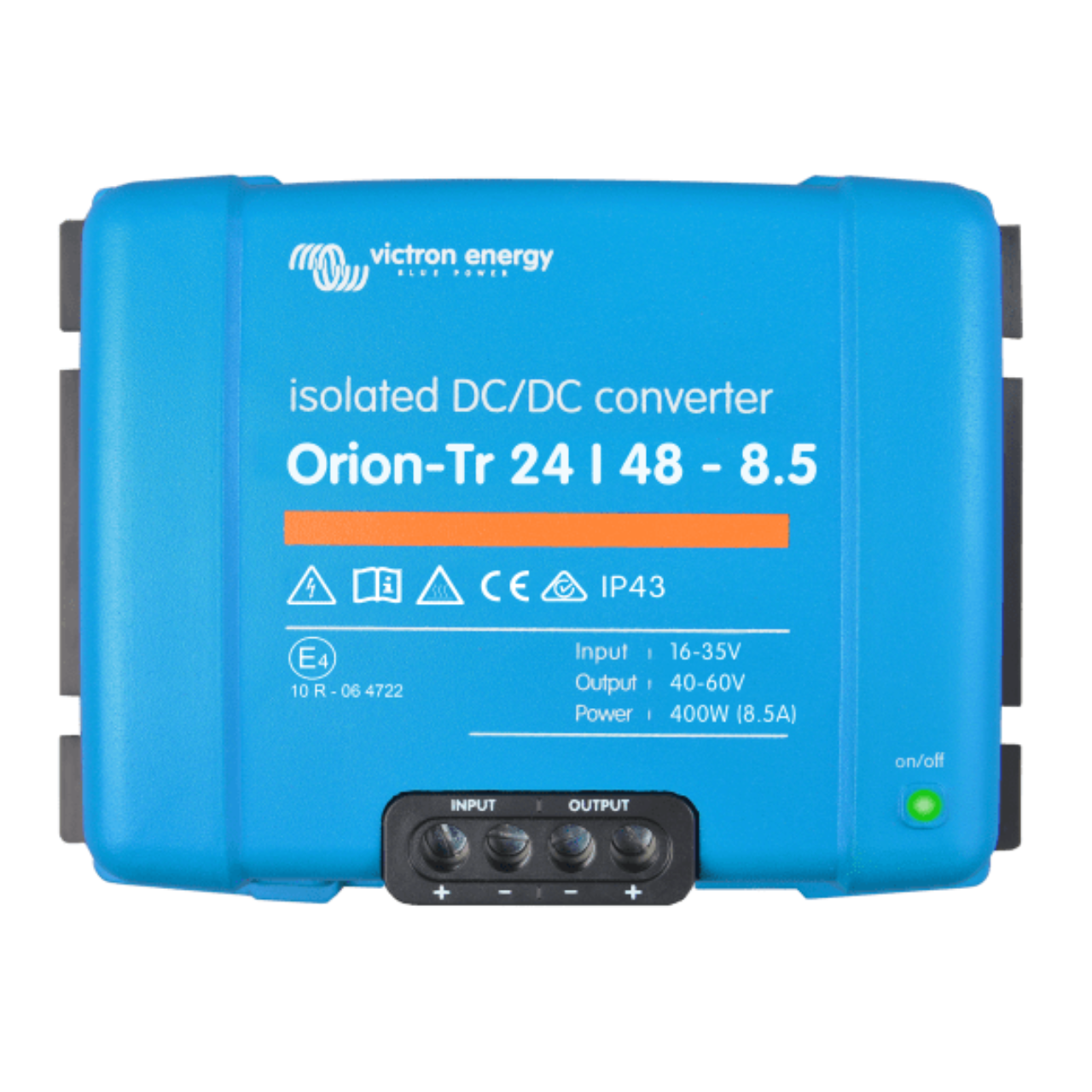

The Victron Energy Orion-Tr 24V to 48V 8.5A DC-DC Converter is a powerful isolated DC-DC converter with advanced features and remote on/off capabilities in a compact enclosure. It is designed for off-grid, grid-tied battery backup, marine, and RV applications.
Features include adjustable output voltage, the ability to charge a starter battery, short-circuit protection for unlimited parallel operation to increase output current, high-temperature electronic protection, easy installation, and Victron Energy’s proven reliability.
The remote on/off feature eliminates the need for a high-current switch in the input wiring. It can be operated using a low-power switch or, for example, an engine run/stop switch.
Victron Energy is one of the leading manufacturers of renewable energy systems and has earned an outstanding reputation for technical innovation, reliability, and quality. The company has served the off-grid, industrial, vehicle, commercial marine, and recreational marine markets for more than 45 years.
Victron Energy Orion DC-DC Converters are CE listed.
Adjustable output voltage
Ability to charge a starter battery
Remote on/off capability
Short-circuit protection
Low-voltage protection
Overtemperature protection
Multiple units can be connected in parallel to increase output current
Terminal connections accept up to 6 AWG stranded cable
CE listed
Five-year limited warranty
Input Voltage Range | 16–35VDC
Nominal Output Voltage | 48.2VDC
Adjustable Output Voltage Range | 40–60VDC
Continuous Output Current | 8.5A at nominal output voltage and 25°C
Weight | 3.5 lb
Dimensions | 5.1 × 7.3 × 3.2 in
