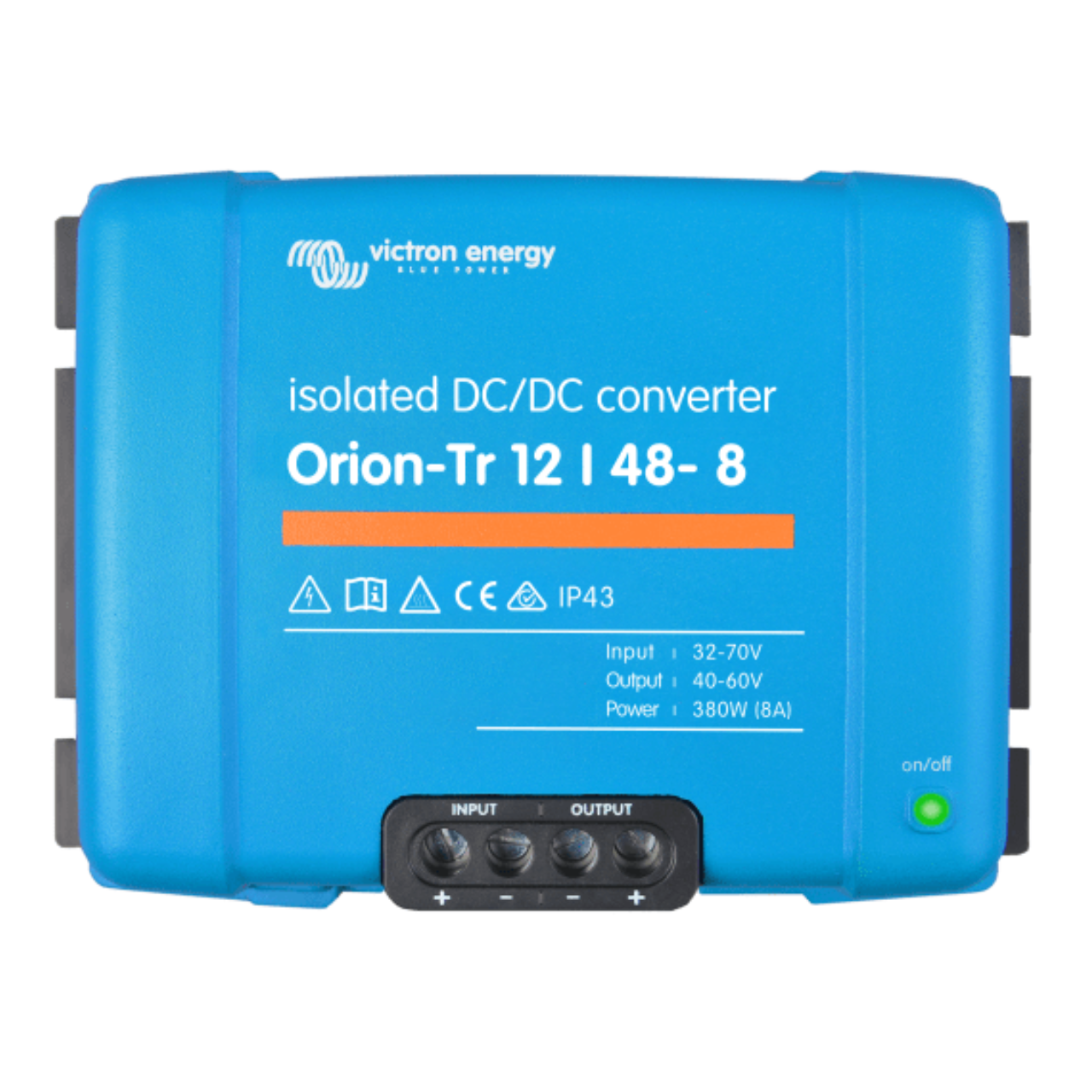

Victron Energy Orion-Tr 12V to 48V 8A DC-DC Converter (Isolated)
The Victron Energy Orion-Tr 12V to 48V 8A DC-DC Converter is a powerful DC to DC isolated converter with many advanced features and remote on-off capabilities in a compact enclosure for off-grid, grid-tie battery back-up, marine or RV use. Features include adjustable output voltage, ability to charge a starter battery, short circuit proof for unlimited parallel operation to increase output current, high temperature electronics protection, ease of installation and proven Victron reliability. The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by, for example, an engine run/stop switch.
Victron Energy is one of the top manufacturers of renewable energy systems, and enjoys an unrivaled reputation for technical innovation, reliability and quality. They have served the off-grid, industrial and vehicle markets as well as both the commercial and leisure marine sectors for over 45 years.
Victron Energy Orion DC-DC Converters are CE listed.
- Input voltage range: 8-17VDC
- Nominal output voltage: 48.2VDC
- Output voltage adjustable range: 40-60 VDC
- Cont. output current @ nominal output voltage and 25°C: 8A
- Remote on-off capability
- Protection from output short circuit, low voltage and over temperature.
- Terminal connections accept up to AWG6 stranded cabling
- Warranty: Victron Energy Orion-Tr DC-DC Converters are backed by a five year limited warranty.
Unit Weight- 3.5 lb
Dimensions – 5.1″ x 7.3″ x 3.2″
