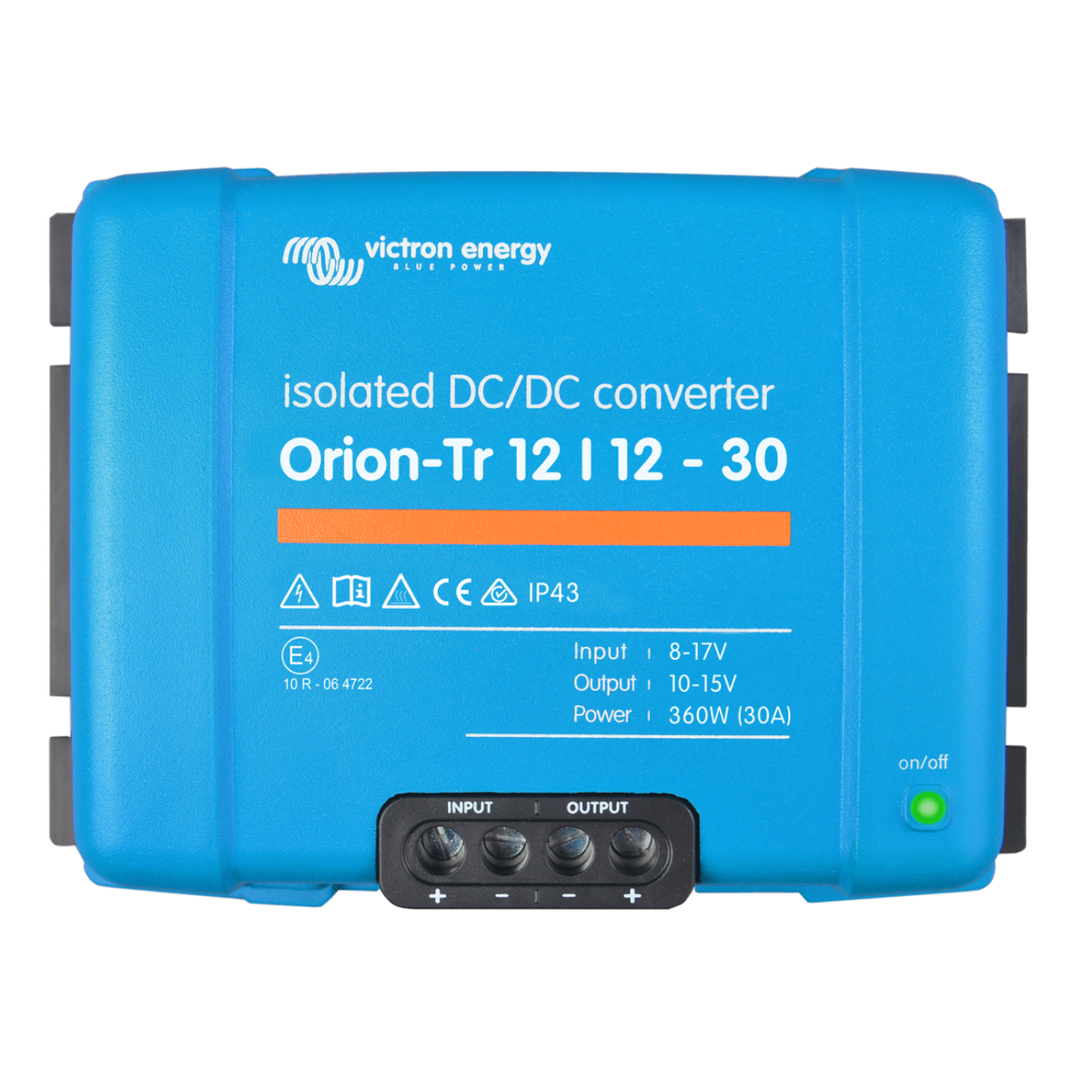

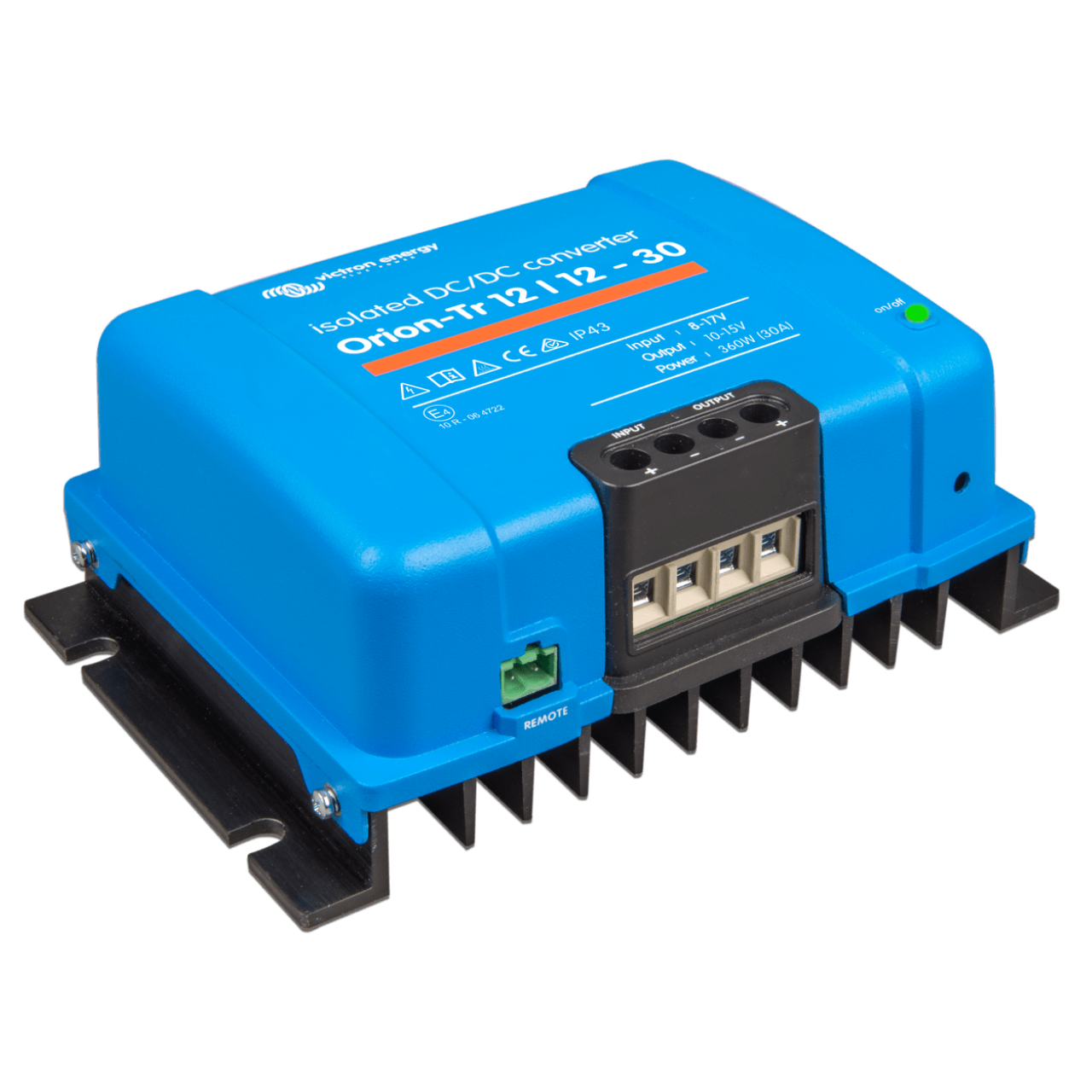

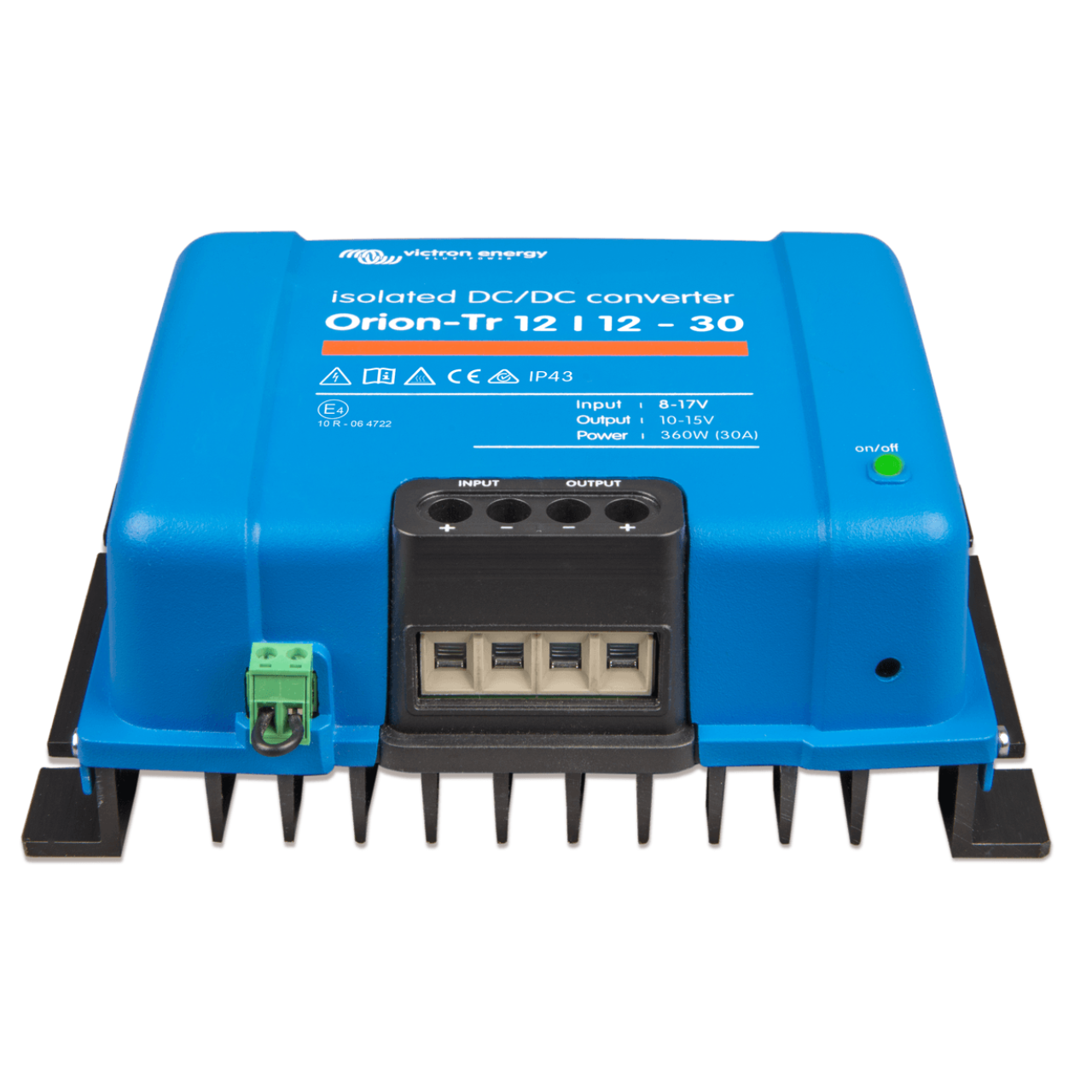

The Victron Energy Orion-Tr 12V to 12V 30A DC-DC Isolated Converter is a powerful, compact DC-to-DC converter designed for off-grid, battery backup, marine, and RV applications. Its isolated design and remote on/off capability make it well suited for installations requiring reliable voltage conversion and flexible control.
The Orion-Tr features adjustable output voltage, starter battery charging capability, short-circuit protection, and high-temperature electronic protection. Multiple units can be connected in parallel to increase total output current. The remote on/off function eliminates the need for a high-current switch in the input wiring and can be controlled by a low-power switch or an engine run/stop switch.
Victron Energy is known for technical innovation, reliability, and quality across off-grid, industrial, vehicle, commercial marine, and recreational marine applications. Victron Energy Orion DC-DC Converters are CE listed.
Isolated DC-to-DC conversion
Adjustable output voltage
Remote on/off capability
Starter battery charging capability
Short-circuit protection
Low-voltage and overtemperature protection
Multiple units can be connected in parallel
Remote on/off can be controlled by a low-power switch or engine run/stop switch
Terminal connections accept up to 6 AWG stranded cable
CE listed
Five-year limited warranty
Input Voltage Range | 10–17VDC
Nominal Output Voltage | 12.2VDC
Adjustable Output Voltage Range | 10–15VDC
Continuous Output Current | 30A at nominal output voltage and 40°C
Weight | 3 lb
Dimensions | 5.1 × 7.3 × 2.8 in
Part Number | ORI121240110
