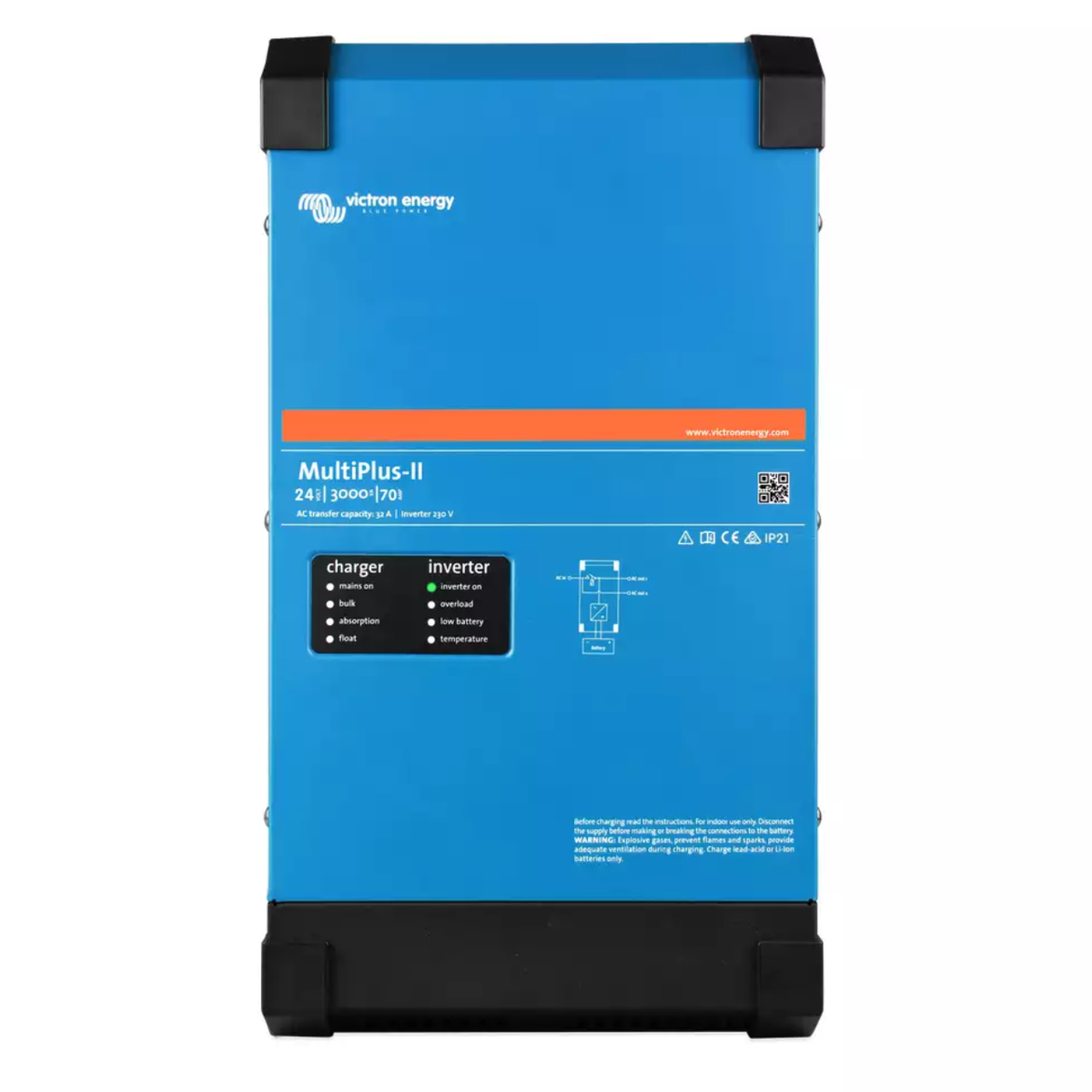

MultiPlusII 24/3000/70-50 120V VE.Bus UL

Victron Energy MultiPlus II 24/3000/70-50 120V VE.Bus (UL listed) Pure Sine Wave Inverter/Charger The MultiPlus 2 Series is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology, and a high-speed AC transfer switch in a single compact enclosure. Advanced features include two AC outputs, parallel operation for higher power output, split phase and three phase capability, PowerAssist boosting of shore or generator power, and many other features. The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid. It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A). It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals. Note: for a short period of time this product was called MultiGrid-II. The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery. The robust MultiPlus-II is the key component in a Victron Energy Storage System. Our new Dynamic ESS feature takes ESS to the next level. It automatically switches between - or combines - grid, battery and solar energy based on live-pricing, predicted energy-use and solar yield so it's always consuming the cheapest energy. In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backup generator and more. Victron Energy Inverters sold in the USA are currently unable to sell back to a grid-tied utility. Please call our sales staff to learn about alternatives for your grid-tie sell back system.

Victron Energy is one of the top manufacturers of renewable energy systems, and enjoys an unrivalled reputation for technical innovation, reliability and quality. They have served the off-grid, industrial and vehicle markets as well as both the commercial and leisure marine sectors for over 50 years.

The MultiPlus-II Series is UL listed.

• Nominal 24VDC Input (19-33V)
• Nominal 120VAC +/- 2% output voltage
• Nominal 3000W Continuous Output Power
• 70A Battery Charger
• VE.Bus for remote monitoring
• UL 458, EN-IEC 60335-1, EN-IEC 60335-2-29, CSA 22.2 107.1-16

The MultiPlus-II Series Inverter/Charger is loaded with features:

• Pure sine wave: Power all your sensitive electronics without worry. The pure sine wave inverter and power factor corrected charger provide clean, reliable inverter power with low total harmonic distortion (THD) of less than 2%.
• Lightweight and compact for ease of installation.
• Remote monitoring and control
• Coming soon: An extra large AC access via a power center for convenient and clean installs.
• Parallel operation of up to 6 inverters for up to 18kVA of power output.
• Nearly instantaneous transfer relay means uninterrupted power for sensitive electronics.
• Warranty: The MultiPlus-II Series Inverter/Charge is backed by a five year limited warranty.

Unit Weight- 42 lb  /  Shipping Weight 48 lb Dimensions- 14.25" x 10.15" x 8.6"
