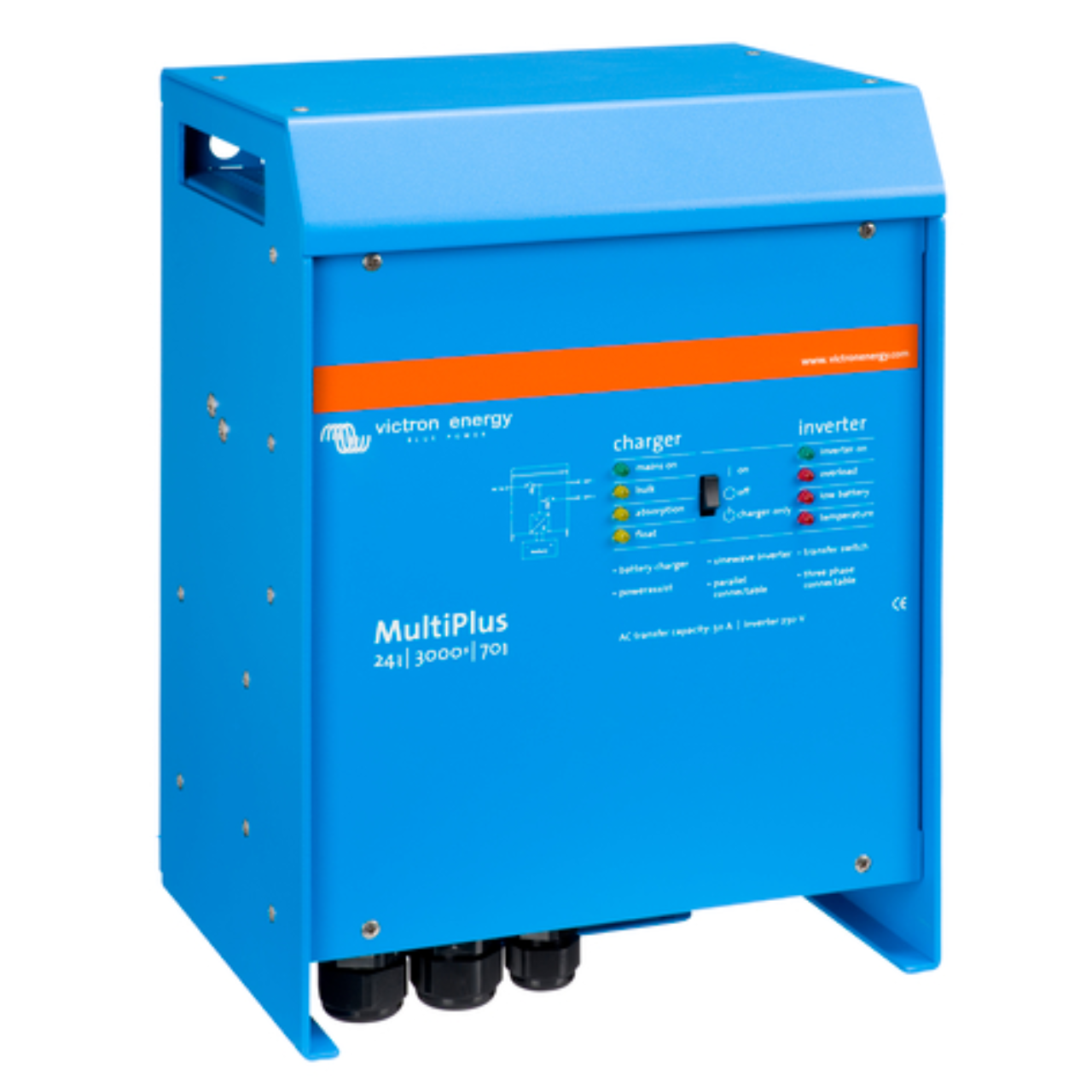

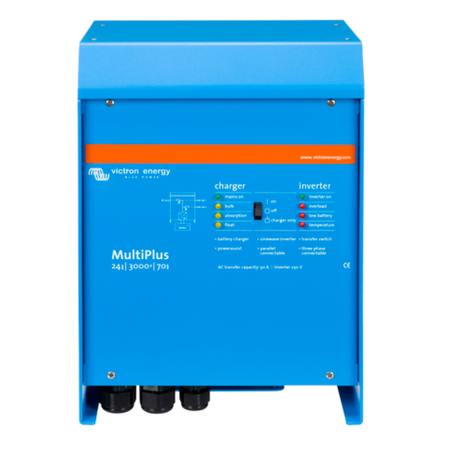

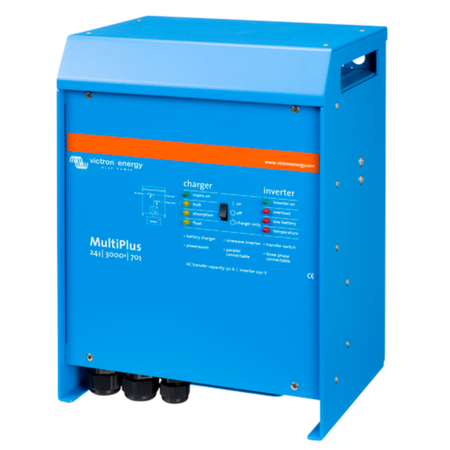

The Victron Energy MultiPlus 24/3000/70-50 combines a true sine wave inverter, an adaptive battery charger, and a high-speed AC transfer switch in a single compact enclosure. Advanced features include dual AC outputs, parallel operation for increased power, split-phase and three-phase capability, and PowerAssist technology to supplement shore or generator power when needed.
When paired with a compatible GX device, such as the Cerbo GX, the MultiPlus can be monitored and controlled locally or remotely through Victron Energy’s VRM platform. Users can access system information and controls from a phone, tablet, laptop, or desktop computer. Remote functions can include system monitoring, inverter settings, and automatic backup generator control.
Victron Energy is one of the leading manufacturers of renewable energy systems and has earned an outstanding reputation for technical innovation, reliability, and quality. The company has served the off-grid, industrial, vehicle, commercial marine, and recreational marine markets for more than 45 years.
The MultiPlus 24V 3000W model is certified to UL 1741, UL 458, and CSA 22.2 standards.
Pure sine wave inverter
Adaptive battery charging technology
Integrated high-speed AC transfer switch
Dual AC outputs
PowerAssist technology
Split-phase and three-phase capability
VE.Bus communication for remote monitoring and control
Compatible with GX devices and Victron VRM monitoring
Low total harmonic distortion of less than 2%
Power factor corrected charger
Parallel operation of up to six units
Up to 18kVA output with six units operating in parallel
Nearly instantaneous transfer relay for uninterrupted power
Five-year limited warranty
Nominal DC Input Voltage | 24VDC
DC Input Voltage Range | 19–33VDC
Nominal AC Output Voltage | 120VAC ±2%
Continuous Output Power | 3000W
Battery Charger Output | 70A
AC Transfer Switch Rating | 50A
Communication Interface | VE.Bus
Certifications | UL 1741, UL 458, CSA 22.2
Unit Weight | 43.5 lb
Shipping Weight | 48 lb
Dimensions | 14.25 × 10.15 × 8.6 in
