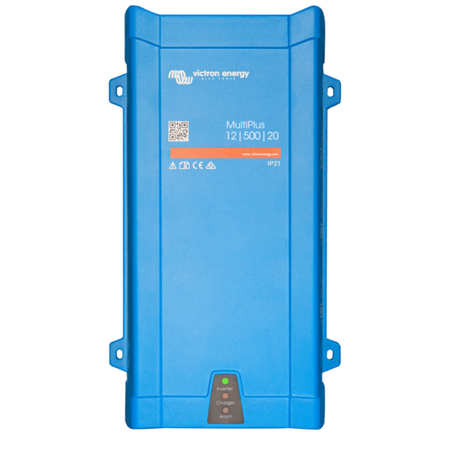

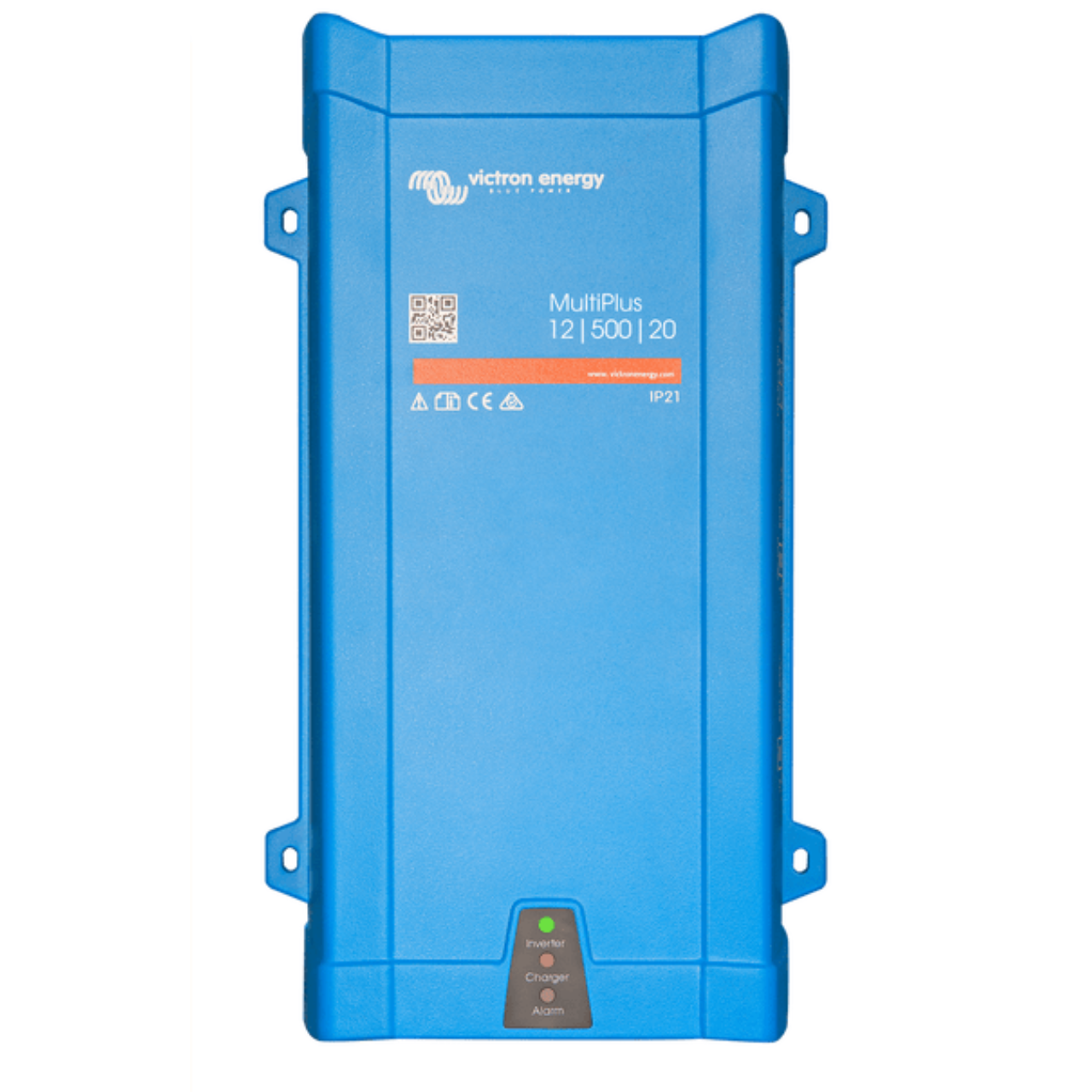

The Victron Energy MultiPlus 12/500/20-16 combines a true sine wave inverter, an adaptive battery charger, and a high-speed AC transfer switch in a single compact enclosure. This newer MultiPlus design replaces the earlier MultiPlus Compact range and is well suited for off-grid, backup power, marine, RV, and other mobile power applications.
The MultiPlus includes UPS functionality for uninterrupted AC power. If grid, shore, or generator power is lost, the inverter automatically activates and supplies connected loads in less than 20 milliseconds, allowing computers and other electronic equipment to continue operating without disruption.
When paired with a compatible GX device, such as the Cerbo GX, the MultiPlus can be monitored and controlled locally or remotely through Victron Energy’s VRM platform. Users can access system information and controls from a phone, tablet, laptop, or desktop computer.
Victron Energy is one of the leading manufacturers of renewable energy systems and has earned an outstanding reputation for technical innovation, reliability, and quality. The company has served the off-grid, industrial, vehicle, commercial marine, and recreational marine markets for more than 45 years.
This MultiPlus 12/500 model is not UL listed.
Pure sine wave inverter
Adaptive battery charging technology
Integrated high-speed AC transfer switch
UPS functionality with transfer time of less than 20 milliseconds
PowerControl for managing limited generator, shore, or grid power
PowerAssist to supplement shore or generator power
Four-stage adaptive charging
Dual-bank battery charging
High startup power for loads with high inrush current
Remote monitoring and control with a compatible GX device
Parallel operation of up to six units
Three units can be configured for three-phase output
Five-year limited warranty
Nominal DC Input Voltage | 12VDC
Continuous Output Power | 500W
Battery Charger Output | 20A
AC Transfer Switch Rating | 16A
AC Output Voltage | 120VAC
Communication Interface | VE.Bus
UL Listed | No
Shipping Weight | 12.5 lb
Dimensions | 15 × 10 × 6.5 in
Part No. | PMP121500100
