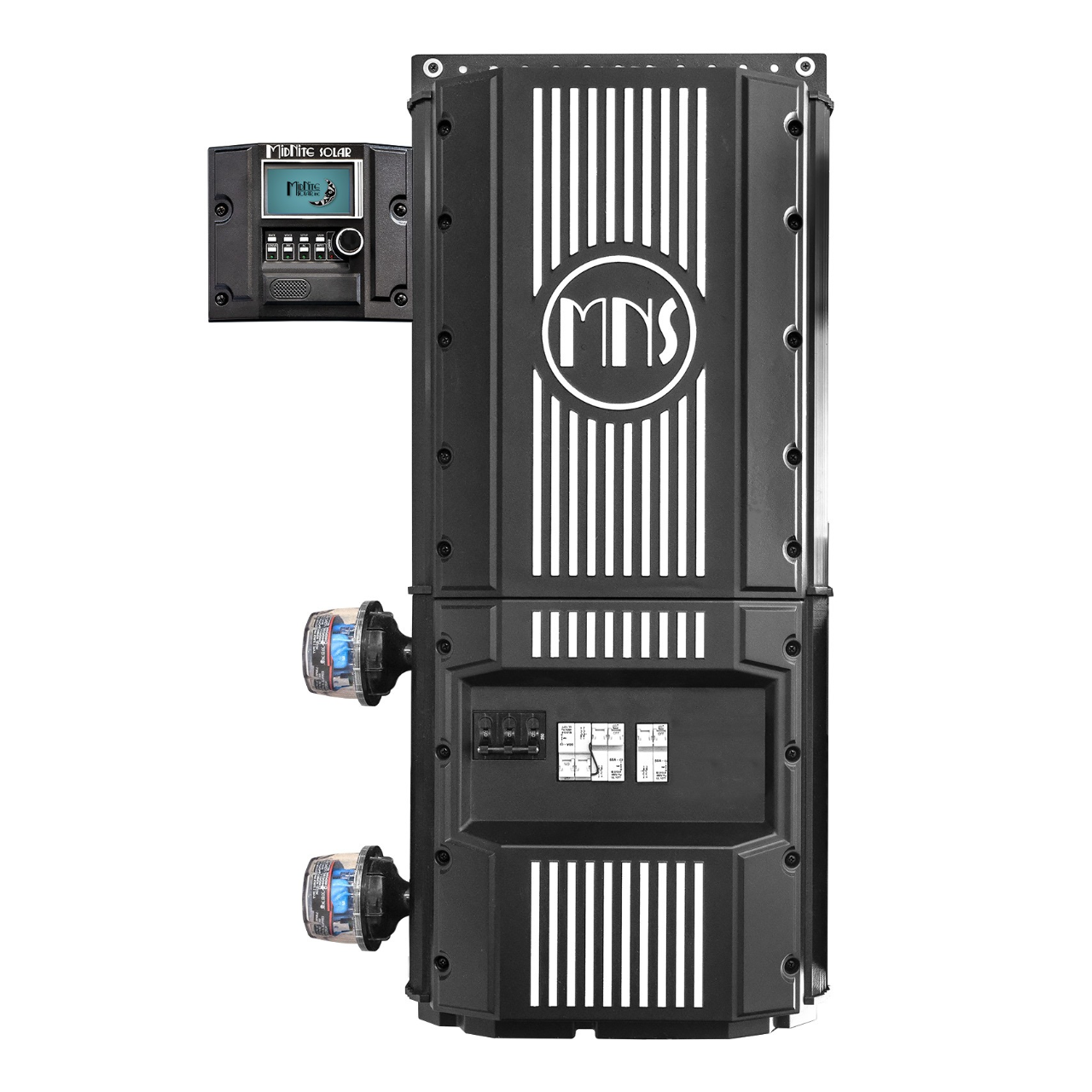

Midnite Solar Prewired Rosie 7kW 120/240VAC Inverter/Charger
This product ships directly from the Manufacturer. A short lead time may apply.
The inverter you've been waiting for! The Rosie Inverter/Charger is a battery-based, DC-to-AC inverter and AC-to-DC charger for off-grid and mobile systems. The Rosie is 7000-watt inverter/charger with 60-amp AC transfer relay and 120-amp, multi-stage battery charger. Rosie’s pre-wired systems were designed by Midnite Solar engineers with 100 plus years of renewable energy off grid experience! Industry leading warranty. Proudly made and assembled here in the USA. Designed for the first-time homeowner Do-it-yourselfer, and experienced solar installers alike. Listed UL1741, UL458, CSA 107.01 and pending UL458 and CSA. This pre-wired is designed to fit together like puzzle pieces, each one designed to work flawlessly with the next. At only 21#, the Rosie E-panel combined with our Rosie Backplate 8# your base is now less than 30 pounds. If you top it off with a Rosie inverter at 42#, you get a total combined weight of only 71 pounds! This can be a huge factor for where you place it, and how many hours you will spend installing it on the walls. Midnite Solar prewired system features True Sine wave technology, quiet forced air cooling and a ZERO transfer time! Constant monitoring SOC. Comes equipped with the Midnite Wizbang Jr, paired with our newest released MNGP2 with an easy turn dial and bigger screen! 120/240Vac Output. Solid Die cast aluminum enclosure. Screened gecko/mud dauber proof enclosure. Battery temperature sensor. Remote battery voltage sensor. Included Canbus communication ready 60A transfer relay per 120VAC leg. Two aux terminals with 15 aux options per Aux terminal. Auto gen start (two-wire generators). SPD’s included.FEATURES
SPECIFICATIONS
| Rosie Pre-wired System - MNROSIE7048-PW | |
| Output power (continuous) at 25°C | 7000VA |
| Overload 30 min sec at 25°C | 8400VA |
| Output power (continuous) at 40°C | 6000VA |
| Maximum output current 60 seconds (RMS) | 60A |
| Maximum surge | 15,000VA |
| Output frequency / voltage | 60Hz/Output voltage 120 or 120/240VAC |
| Total harmonic distortion at rated power | <5% |
| Consumption | 30 Watts without search and 7 watts with search |
| Input DC voltage range | 40 to 65VDC |
| Maximum charge from AC source | 120A |
| Warranty | 7 years |
