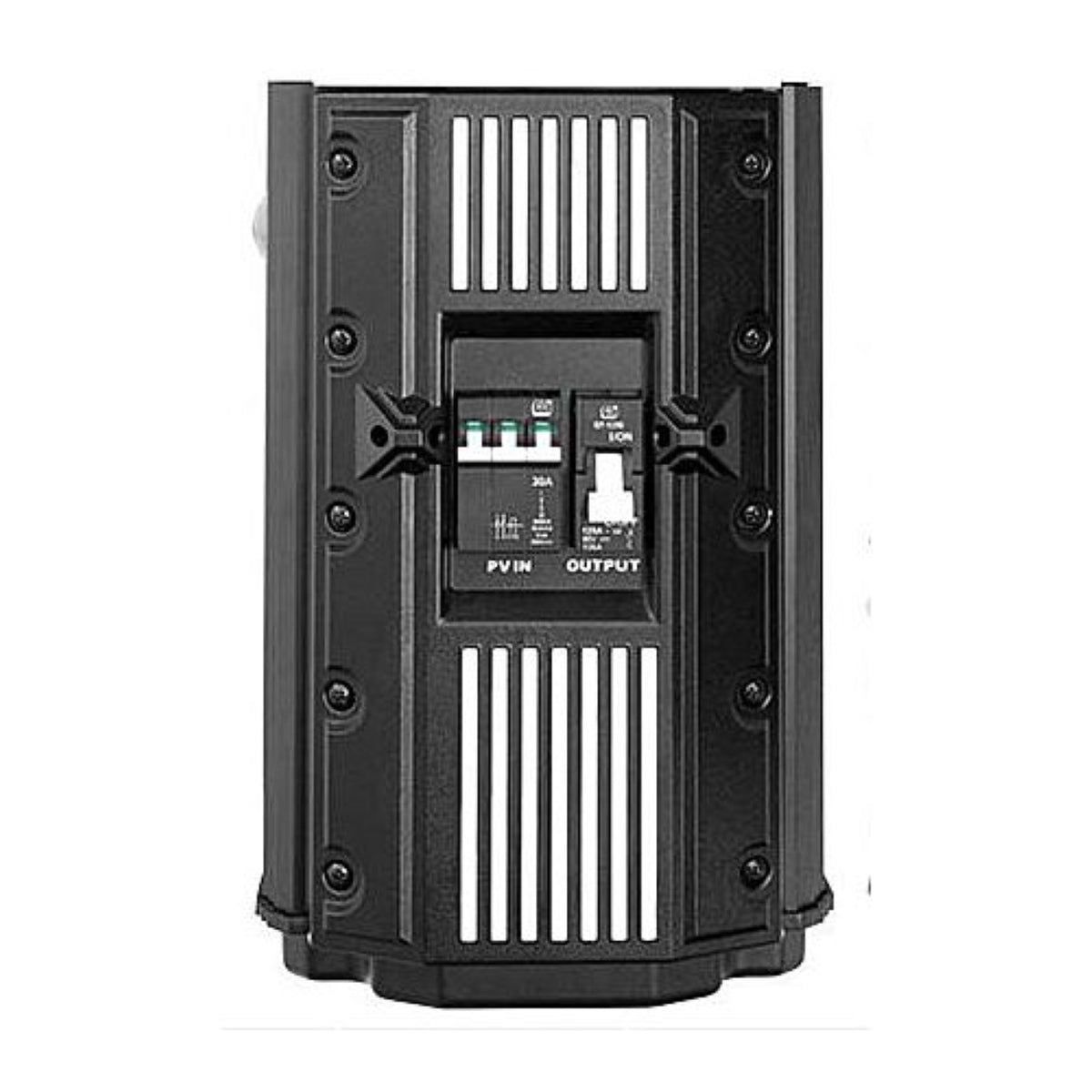

MidNite Solar Hawke's Bay Breaker Box 125

The MidNite Solar Hawke's Bay Breaker Box 125 provides a convenient way to create a clean, code-compliant installation for compatible Hawke's Bay MPPT charge controllers.

Designed for use with the MidNite Solar Hawke's Bay 90 and Hawke's Bay 120 MPPT Charge Controllers, the BB125 includes both battery-side and PV input overcurrent protection in a durable enclosure.

The breaker box is constructed from die-cast aluminum and powder coated to match the Hawke's Bay charge controller series.

Made in the USA.

Features

• 125A Battery Breaker Included: Provides battery-side overcurrent protection.
• 30A / 600V DC PV Input Breaker Included: Protects the PV input circuit in high-voltage solar applications.
• Compatible with Multiple Battery Chemistries: Supports lithium, flooded lead-acid, AGM, and many other battery types when used with a compatible Hawke's Bay charge controller.
• Battery Overvoltage Protection: Supports remote-trip PV breakers controlled by the MPPT charge controller.
• High-Voltage PV Capability: Designed for use with the Hawke's Bay high-voltage MPPT charge controller platform.
• Durable Die-Cast Aluminum Enclosure: Powder-coated finish matches Hawke's Bay system components.
• Designed for Hawke's Bay Controllers: Compatible with Hawke's Bay 90 and Hawke's Bay 120 MPPT charge controllers.
• Made in the USA: Manufactured in the United States.

Specifications

Battery Breaker: 125A
PV Input Breaker: 30A / 600V DC
PV Input Wire Size: 12 to 4 AWG
Battery Output Wire Size: 14 to 2/0 AWG
Enclosure Material: Die-Cast Aluminum
Finish: Powder Coated

Dimensions: 13.88 L × 9.68 W × 8 D in
Boxed Dimensions: 19 L × 12 W × 10 D in
Weight: 12 lb

Certifications

Listing: ETL Listed to UL 1741

Warranty

Warranty: Five-Year Warranty
