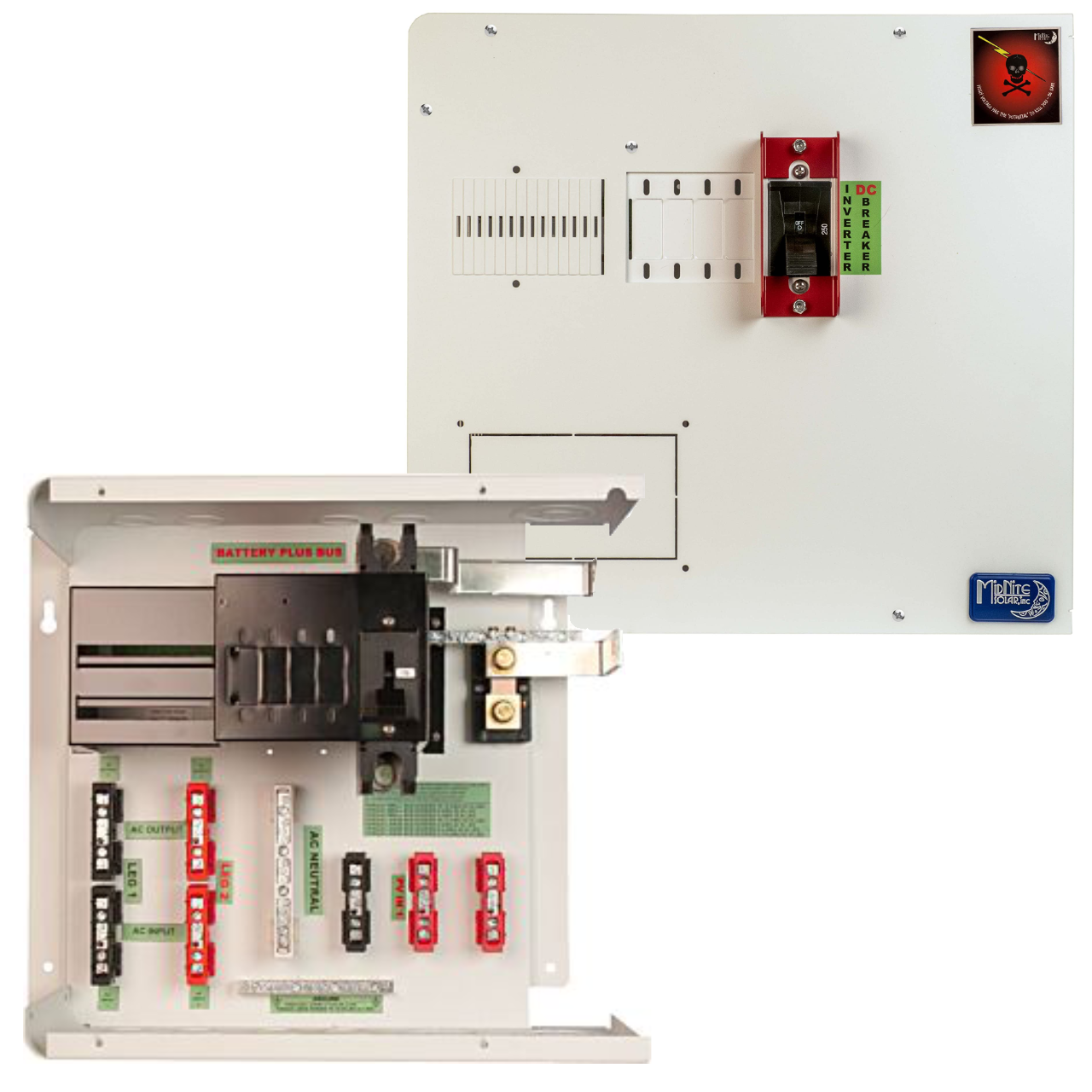

Midnite E-Panel - Schneider SW - 250A
Midnite's E-Panel solution for a single SW4024 inverter/charger (
stacking of SW inverters is not supported). E-panels provide for a clean, functional installation, giving place to connect incoming and outgoing AC wiring, charge controller and inverter wiring and connections, as well as space for appropriate AC and DC breaker sets.
Includes
- Main 250 amp inverter disconnect breaker
- Space for up to 6 DIN rail mount breakers, and 4 panels mount breakers
- Bus bars for AC input/output, neutral, ground, PV+/- and Bat +/-
- 500 amp shunt for battery monitors.systems
Midnite has provided space and bus bars to accommodate two charge controllers. The din rail space will often be filled with Midnite's AC Bypass breaker assembly, C-MNE-ACKIT (sold separately) for the AC input and output connections. Also consider
O-SWCABLE to tie in positive bus bar at positive input breaker.
Measures: 23L x 20W x 13H
Weighs: 23 lbs
Listed by ETL for US and Canada
Made in the USA
5 year warranty
