Midnite E-Panel – Lite -250A
A generic MidNite pre-wired E-Panel to be used with inverters that don’t already have their own specific E-Panel. An excellent choice when wall space is at a premium. These E-panels are an economical fit for the Multi-Plus and Multi-Plus II series of inverters from Victron Energy.

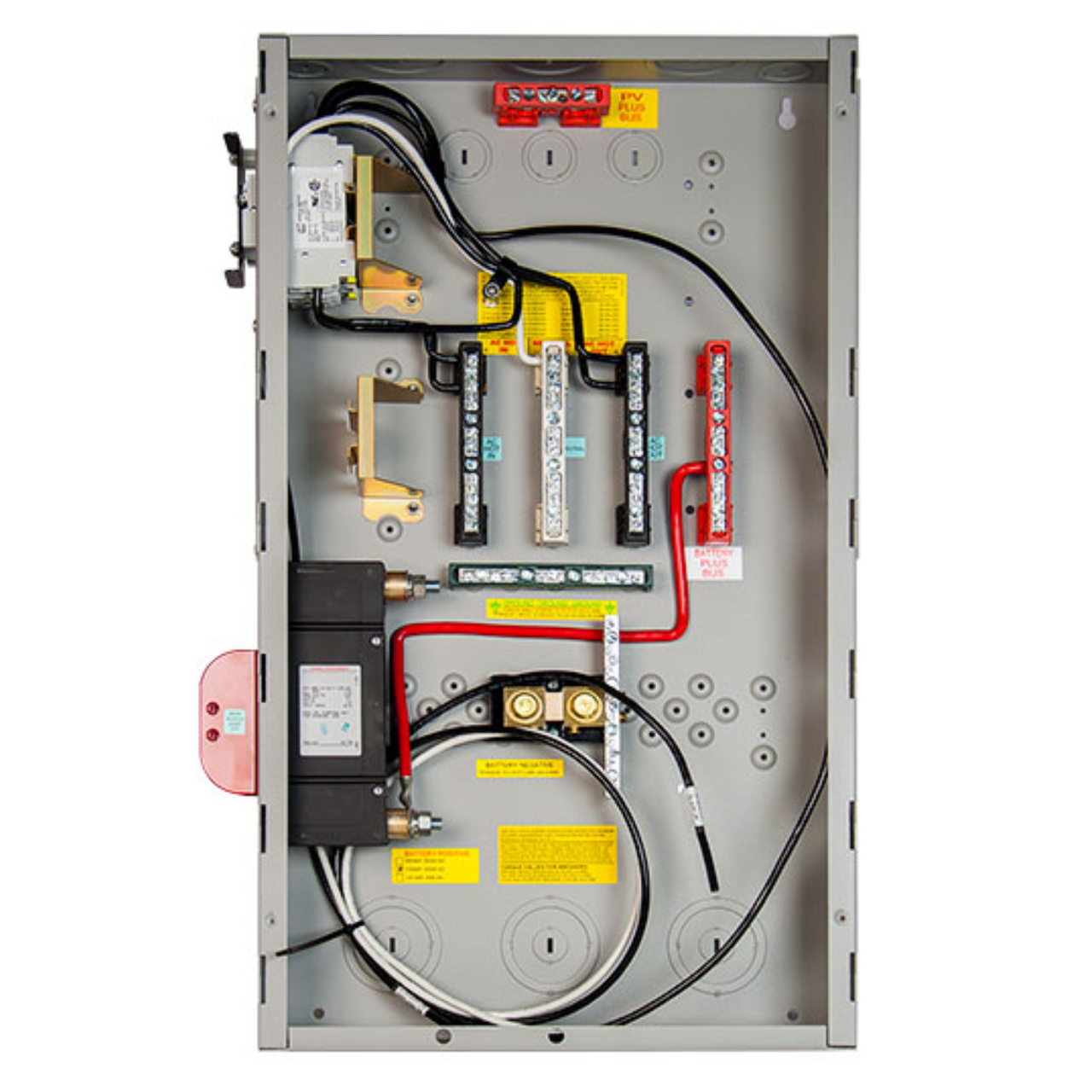

Includes: 250A/125VDC main inverter disconnect breaker, a 500A/50mV shunt for battery monitoring, a 50A AC Input Breaker, and a 50A AC bypass switch, included and pre-wired. Cutouts for mounting up to 6 additional DIN rail breakers are provided, as are cut-outs for GFCI-style AC outlets, and 3-panel mount DC breaker slots. PV Positive, DC Positive, AC In and AC Out, Neutral and Ground bus bars installed. This E-panel will help keep your install looking clean and professional at an affordable price.
25″L x 16″W x 4″D, 29 pounds
