Midnite

Midnite E-Panel Lite - 125A

SKU: C-MNE125STSLT
$699.00
Only 4 left
Low inventory - Hurry up!
Ready to work out of the box!

Need us to pre-program a product before shipping? Ask about our programming service.

Got questions?

Feel free to get in touch

Ask an expert!

Email (208) 263-4290

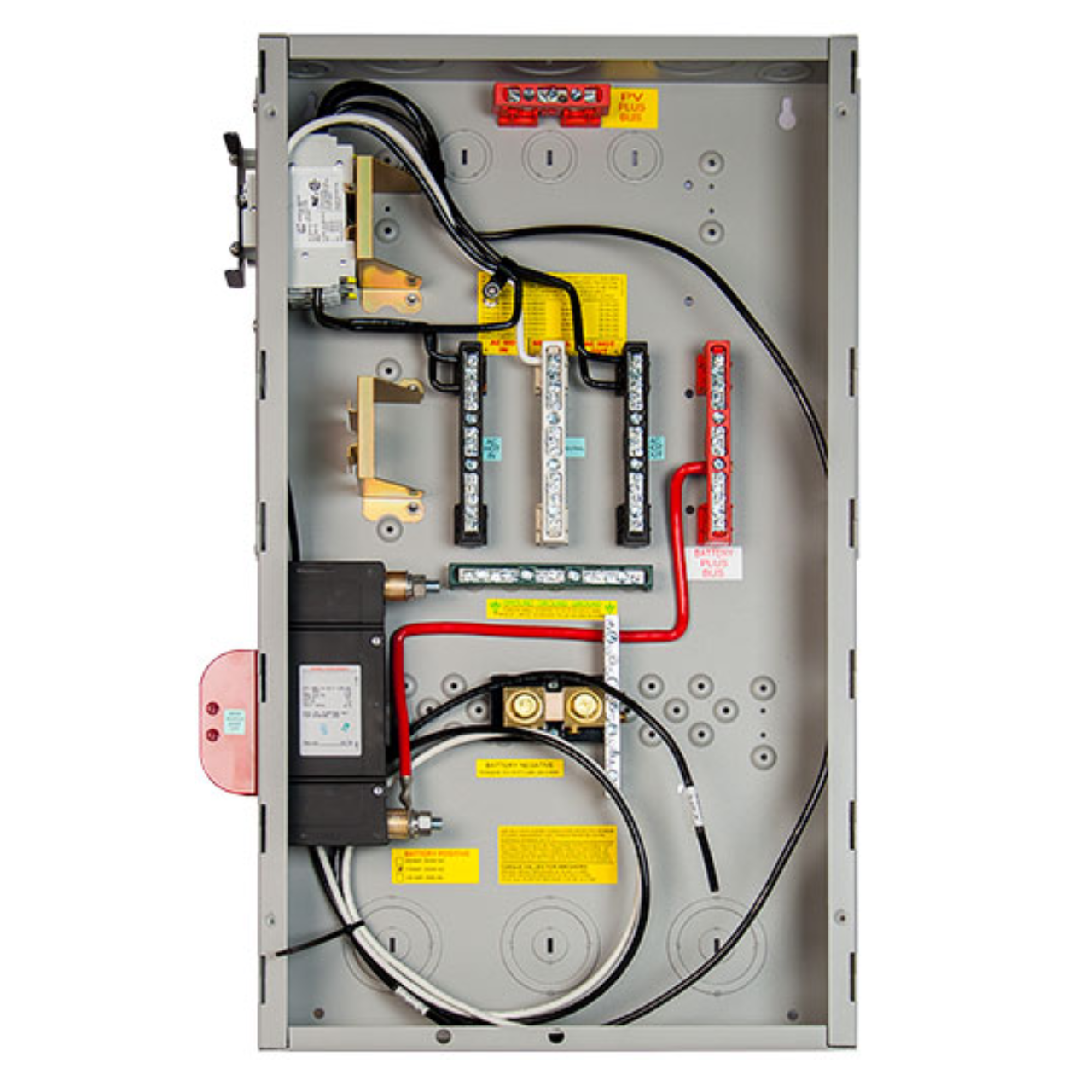

Midnite E-Panel - Lite -125A A generic MidNite pre-wired E-Panel to be used with inverters that don't already have their own specific E-Panel. An excellent choice when wall space is at a premium.  These E-panels are an economical fit for the Multi-Plus and Multi-Plus II series of inverters from Victron Energy. Includes: 125A/125VDC main inverter disconnect breaker, a 500A/50mV shunt for battery monitoring, a 50A AC Input Breaker, and a 50A AC bypass switch, included and pre-wired. Cutouts for mounting up to 6 additional DIN rail breakers are provided, as are cut-outs for GFCI-style AC outlets, and 3-panel mount DC breaker slots. PV Positive, DC Positive, AC In and AC Out, Neutral and Ground bus bars installed. This E-panel will help keep your install looking clean and professional at an affordable price. 25"L x 16"W x 4"D,  29 pounds
