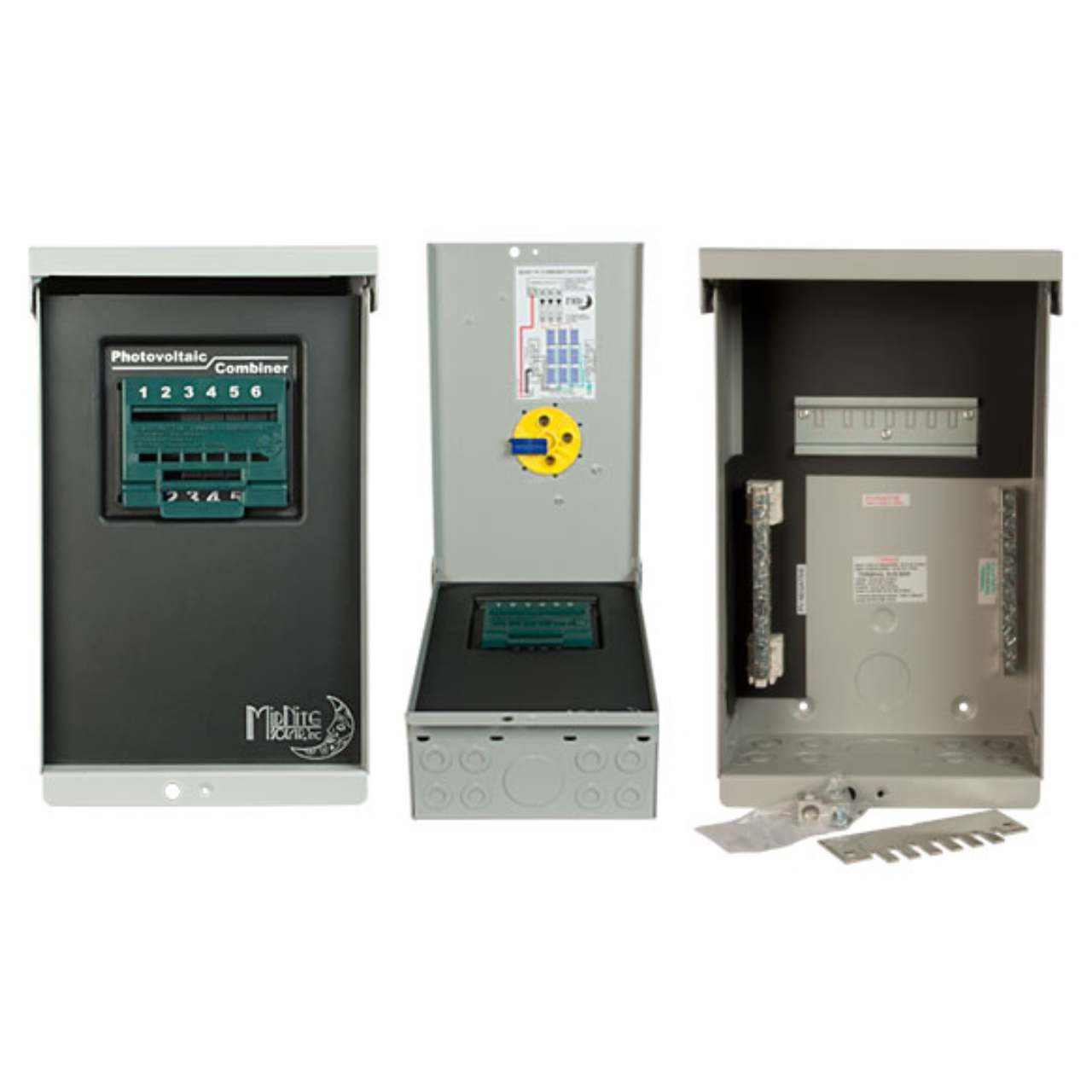

Midnite Disconnect Combiner Box

SKU: S-MNPV6-DISCO
$238.00
Only 5 left
Low inventory - Hurry up!
Ready to work out of the box!

Need us to pre-program a product before shipping? Ask about our programming service.

Got questions?

Feel free to get in touch

Ask an expert!

Email (208) 263-4290

Midnite Disconnect Combiner Box - MNPV6-DISCO The MNPV6 Disco is very flexible. It is ETL listed for AC and DC. This allows you to configure it for several different uses. It will work with 1-6 150 volt DC breakers. It will also work with a 600 volt DC breaker for a grid tie disconnect. You can also install a 240 volt AC breaker with the 600 volt DC breaker to make a complete disconnect for a grid tie inverter. This configuration makes a compact Grid Tie disconnect for those applications where the built in switch won’t do the trick.
      • Type 3R environmental rating
      • DC 600V (1 circuit Pos or Pos and Neg switched) OR DC 150v (6 Circuits) OR AC 120v (6 circuits) use the Part no. MNPV6-Disco combiner
      • DC 300V (3 circuits) Part #MNPV6-250-Disco combiner
      • AC 240v 40 amps (3 circuits) Part #MNPV6-AC Micro-Disco combiner
      • AC and DC can be installed in the same box!
Example: 600Vdc 20 amp PV in and 40 amp 240Vac Inverter output Enclosure only. Breakers/FuseHolders not included NOT COMPATIBLE WITH THE BIRDHOUSE Listed by ETL for US & Canada Size: 13.2"L x 8"W x 6.2"D Boxed: 15"L x 9"W x 7.25"D Weight: 6 Lbs
