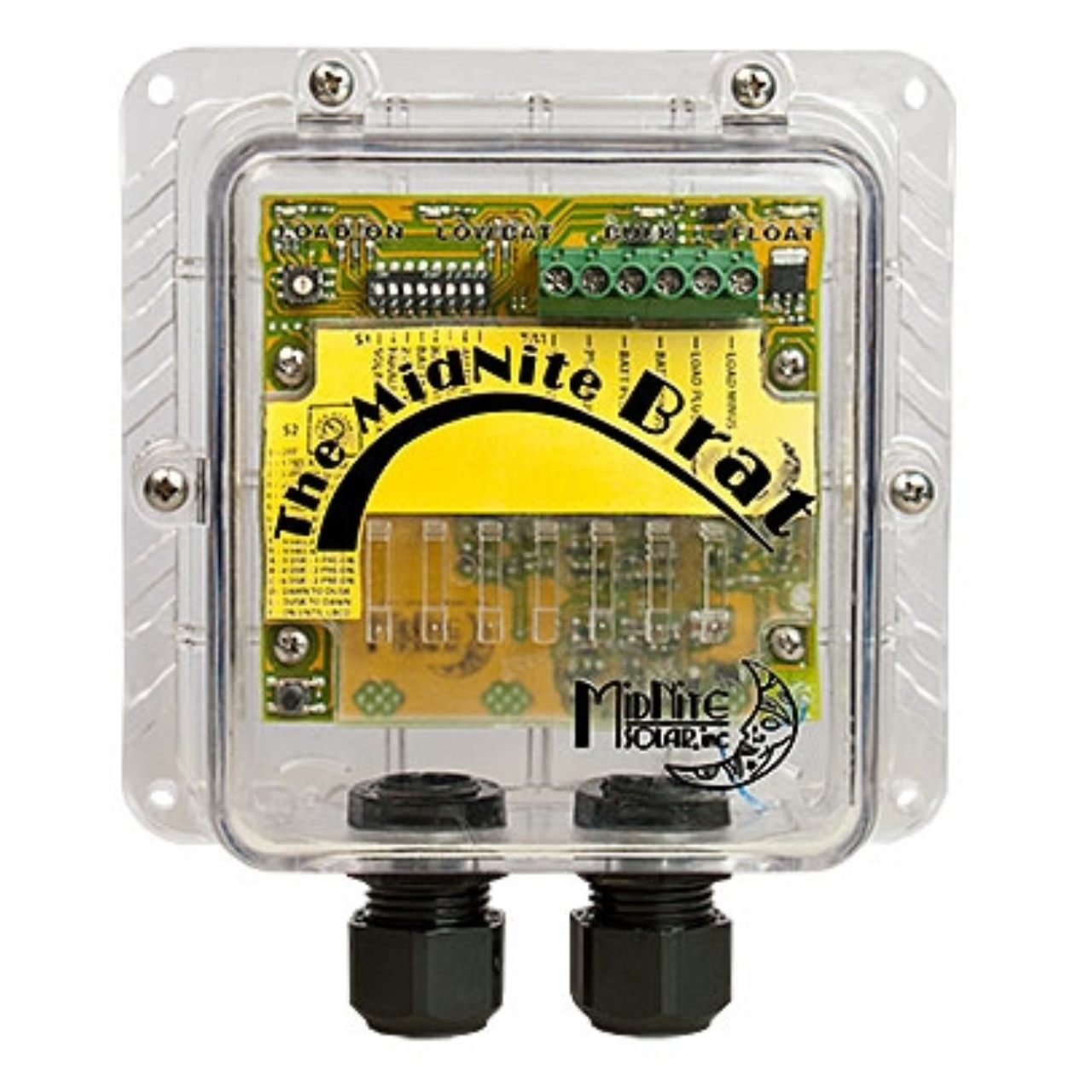

Midnite Brat 30A PWM Charge Controller

Midnite Brat 30A PWM Charge Controller The Brat is simply the most versatile solar controller in its class. The Brat is a finely-tuned solar PWM charger capable of providing up to 30 Amps of charging current, with class-leading lighting and load control features including one-of-a-kind Solar Clock. Rain-proof out of the box, and supporting dead-battery charging and low-voltage load disconnect, The Brat is perfect for outdoor, marine, RV, and unattended remote applications. The Brat doesn’t skimp on features, including temperature-compensated charging, manual and 30-day automatic equalize, and at an affordable price too! Features: • Selectable charging modes - 20A charger with 10A load control - 30A charger without load control • Bulk, Absorb, Float, and Equalize (user adjustable) • 0 to 100% PWM, no relays, no fans, no external heat-sink • Clear UV stabilized polycarbonate housing, rain and bug proof • 12V/24V FLOODED, GEL, AGM batt supported • Reverse polarity protected • Auto resetting over-current protection • Auto resetting over-temperature protection • 8 position switch for main charger settings • 16 position rotary switch for lighting controller • Four LEDs for Bulk, Float, Load On and Low Batt • Patterned blinking LEDs provide feedback of fault conditions • Highly customizable light controller (dusk-dawn, hourly, day, night, etc). • Field repairable printed circuit board (by a qualified technician) • Built in Arlington, WA. USA
