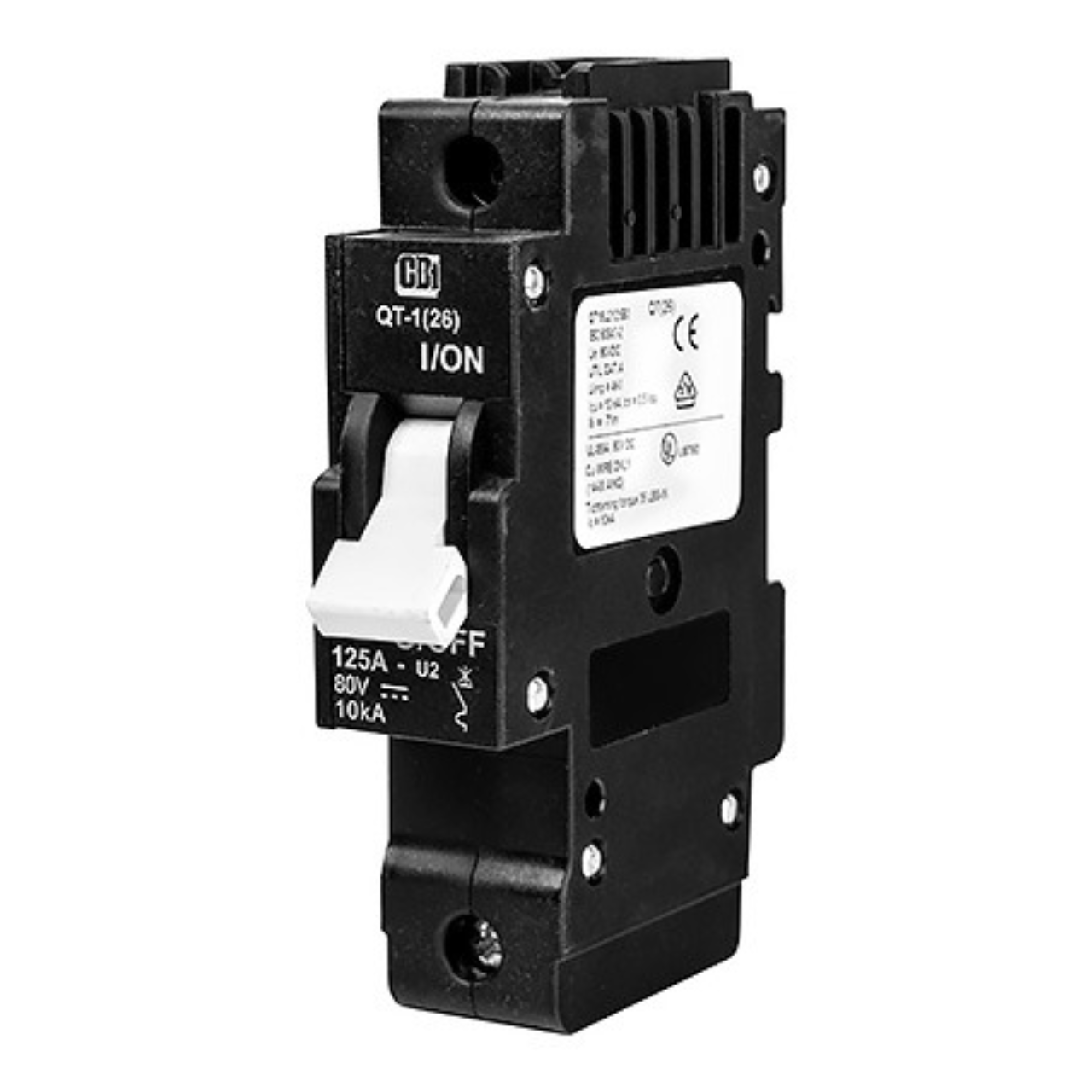

MNEPV 125A 80VDC Non-Polarized Din Rail Mount Breaker
MidNite’s breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting.
80VDC single pole, dual space din rail mount breaker for use as a battery disconnect for most charge controllers. Able to provide cable protection up to 125A.
Accepts 14 to 1/0 AWG wire.
- Environmental Rating - Type 1 (Indoor)
- DC Voltage Rating - 80VDC
- Wire Size Range - 14 to 2 AWG
- Width - 1in (25mm)
- Number of poles - 1
- 10,000 AIC
ETL listed in the US and Canada
