MidNite 300VDC Single Pole PV Breaker (Various Amperage)
Ready to work out of the box!
Need us to pre-program a product before shipping? Ask about our programming service.
Got questions?
Feel free to get in touch
Ask an expert!

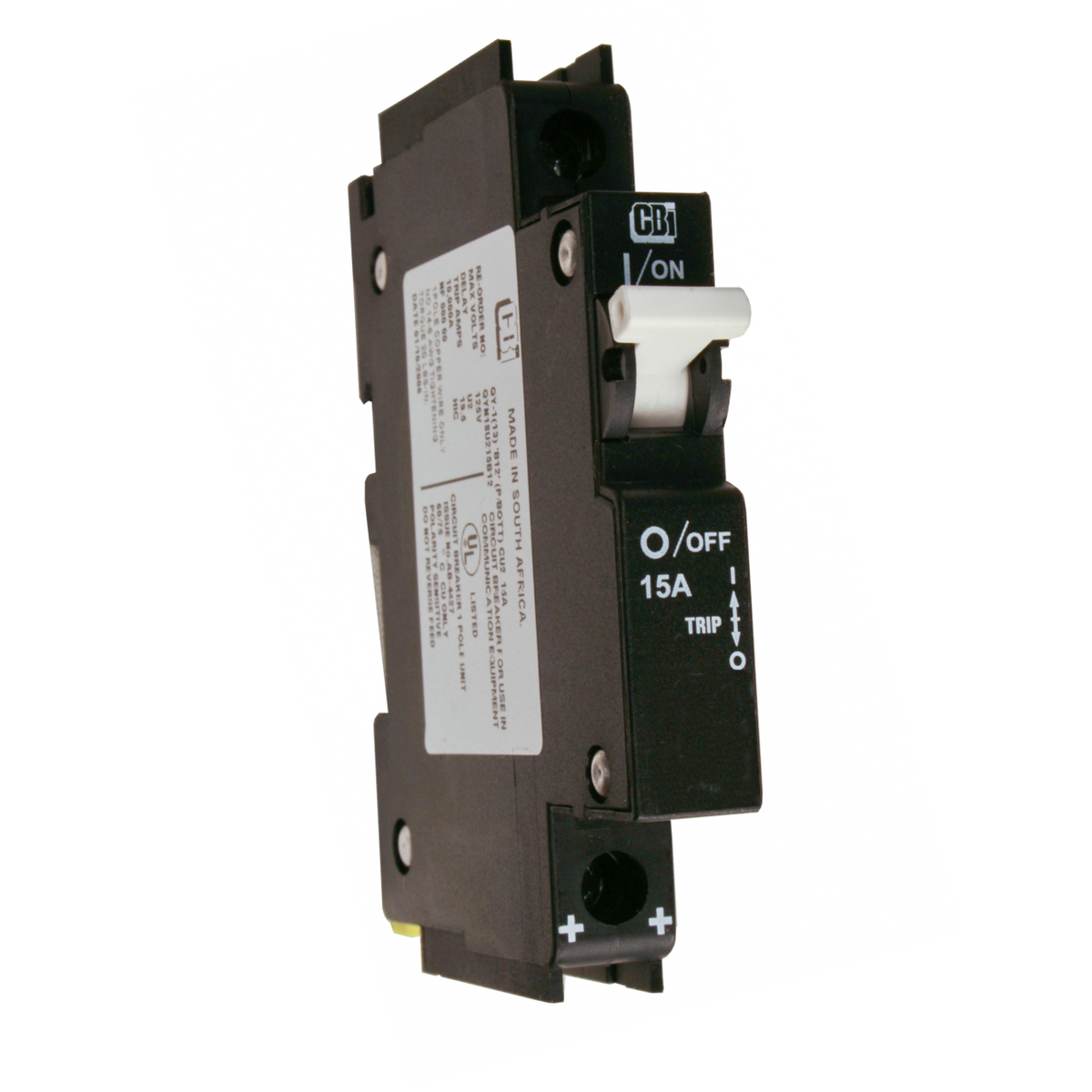

MNEPV-300 15 – 50A High voltage Single Pole DC breakers 300VDC.
15A, 20A, 30A, 40A or 50A 300VDC single pole din rail mount breaker (13mm wide) for applications up to 300 volts. MNEPV breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Breakers are the same as CBI QY breakers available elsewhere except these Midnite Solar breakers are 300VDC! Always use a properly sized breaker for disconnecting.
- Environmental Rating – Type 1 (Indoor)
- Listed for US & Canada
- DC Voltage Rating – 300VDC
- Wire Size Range – 14 to 6 AWG
- Width – 1/2 in.
- Number Of Poles – 1
- 10,000A AIC
- Warranty – 5 yrs
All MidNite circuit breakers hold 100% rated current independent of ambient temperature.
ETL listed in the US and Canada.
Buy in bulk
| Variant | Quantity | Price | Total |
|---|---|---|---|
15
S-MNEPV-HV15-1P
|
Out of stock | ||
|
20
S-MNEPV-HV20-1P
|
Out of stock | ||
|
30
S-MNEPV-HV30-1P
|
|
||
|
40
S-MNEPV-HV40-1P
|
|
||
|
50
S-MNEPV-HV50-1P
|
|
