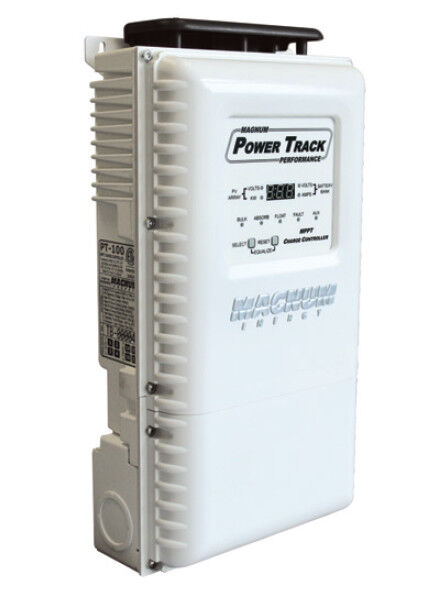

Magnum PT-100 MPPT Charge Controller – 100A, 12/24/48V

The Magnum PT-100 MPPT Charge Controller is designed to maximize usable energy from a solar array and efficiently deliver that power to the battery bank.

Using Maximum Power Point Tracking (MPPT) technology, the PT-100 continuously tracks the PV array's maximum power point while regulating charging current up to 100A. It supports 12V, 24V, and 48V battery systems with automatic battery voltage detection.

The controller also includes an integrated programmable auxiliary relay, built-in system protections, and internal data logging for long-term energy harvest and battery performance tracking.

Features

  • 100A Maximum Charging Current: Delivers up to 100A of charging current to compatible battery systems.
  • 12V / 24V / 48V Compatibility: Automatically detects supported battery bank voltage.
  • MPPT Technology: Continuously tracks the PV array's maximum power point to maximize available solar energy.
  • High Conversion Efficiency: Provides conversion efficiency of up to approximately 99% under applicable operating conditions.
  • Low Nighttime Consumption: Consumes less than 4W in nighttime mode.
  • Large PV Array Support: Capable of managing PV arrays up to approximately 6,600W, depending on system voltage and design.
  • Programmable Auxiliary Relay: Built-in relay can be configured for compatible system control functions.
  • Battery Temperature Compensation: Included battery temperature sensor automatically adjusts charging based on battery temperature.
  • Integrated Arc-Fault Protection: Built-in PV Arc-Fault Circuit Interrupter detects, indicates, and interrupts series arc faults.
  • Integrated Ground-Fault Protection: Includes PV ground-fault detection, interruption, indication, and diagnostic monitoring.
  • Internal Data Logging: Stores energy harvest and battery amp-hour/watt-hour data for up to 255 days.
  • Field-Upgradable Software: Controller software can be updated on-site.
  • Front-Panel Display: Multiple LED indicators and a large digital display provide easy access to system status and operating information.

System Protection

The PT-100 includes multiple built-in protection features, including:

  • Over-temperature protection
  • Power derating at high temperatures
  • PV short-circuit protection
  • High PV input shutdown
  • Output over-current protection
  • Reverse-current protection at night
  • PV arc-fault detection and interruption
  • PV ground-fault detection and interruption

Installation

The PT-100 is designed for use with compatible Magnum Panel (MP) and Mini-Magnum Panel (MMP) systems.

A dedicated, remain-in-place wiring box allows system wiring to be installed before the main PT-100 controller is mounted, simplifying installation and service.

The system also provides space and access for compatible PV and battery disconnect breakers.

Specifications

Model: PT-100
Maximum Charging Current: 100A
Battery Voltage: 12V / 24V / 48V, Automatic Detection
Maximum PV Array Size: Up to approximately 6,600W
Maximum PV Input Voltage: 200+ VDC
Conversion Efficiency: Up to approximately 99%
Nighttime Power Consumption: Less than 4W
Data Logging: Up to 255 Days
Ground-Fault Protection: Integrated GFDI
Arc-Fault Protection: Integrated AFCI
Battery Temperature Sensor: Included
