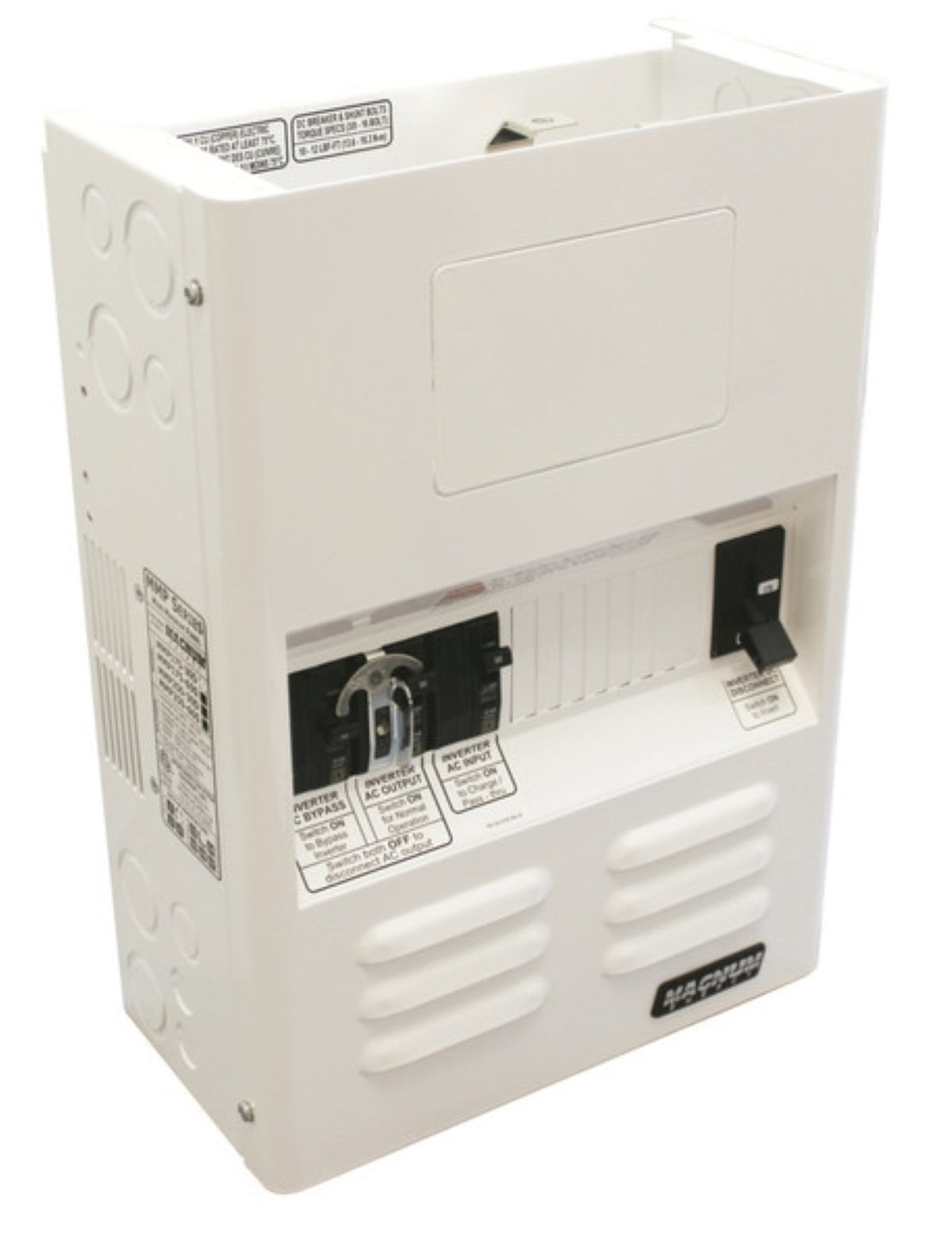

Magnum Energy MMP250-60S Mini Magnum Panel

The Magnum Energy MMP250-60S Mini Magnum Panel is a pre-wired power distribution enclosure designed for single-inverter renewable energy systems using compatible 12V or 24VDC Magnum inverter/chargers.

It combines the major system protection and distribution components into one enclosure, helping simplify installation while providing a clean, code-compliant system layout.

The MMP250-60S includes an inverter/battery disconnect, AC overcurrent protection, grounding connections, and a full inverter bypass system that allows the inverter to be isolated for service or battery maintenance.

Features

• Designed for Single-Inverter Systems: Intended for use with compatible Magnum 12V and 24VDC inverter/chargers.
• Pre-Wired Enclosure: Helps reduce installation time and simplifies system wiring.
• Inverter/Bypass Function: Allows the inverter to be isolated while maintaining convenient system access.
• Integrated AC Protection: Includes AC input and bypass breakers.
• Integrated DC Protection: Includes a 250A DC breaker for inverter/battery disconnect.
• 500A / 50mV DC Shunt Included: Supports compatible battery monitoring and system measurement.
• Front-Panel Access: Provides convenient access to breakers and system controls.
• Remote-Compatible Design: Supports compatible Magnum front-panel remotes for inverter setup, monitoring, and operation.
• Code-Compliant System Integration: Designed to support safe and organized renewable energy system installations.

Included Components

• 1 × 60A Single-Pole AC Bypass Breaker
• 1 × 60A Single-Pole AC Input Breaker
• 1 × 250A DC Breaker
• 1 × 500A / 50mV DC Shunt

Specifications

Model: MMP250-60S
Application: Single-Inverter Systems
Compatible Battery Voltage: 12V / 24VDC
AC Bypass Breaker: 60A, Single-Pole
AC Input Breaker: 60A, Single-Pole
DC Breaker: 250A
DC Shunt: 500A / 50mV

Certifications

Listings: UL and CSA
