Eclipse 48V, 300Ah 16-cell LIFEPO4 Battery (UL)

PLEASE NOTE: Due to this item’s size/weight it cannot ship UPS or USPS and must ship via truck freight. Backwoods Solar works with numerous shipping companies to get the best rate possible for you but it takes some research on our part. The shipping rate shown when you check out is only an estimate. Once you place your order, we will find the best rate and call you with the total within 1 business day. We will not charge your card for any part of your order until after we have talked with you to confirm the final price.

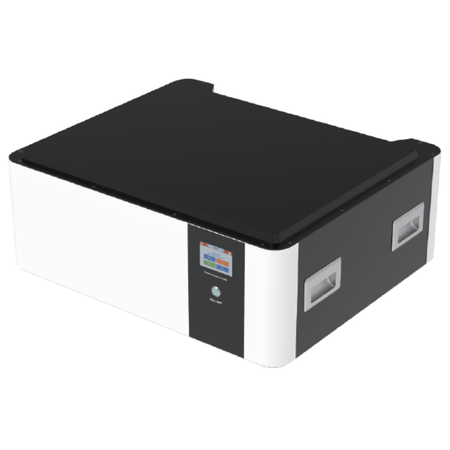

Eclipse 48V 300Ah 16-cell LIFEPO4 Battery (UL1973)

New Product - Now In Stock

The Eclipse 48V 300Ah LiFePo4 is a great "drop-in" replacement for your 48 volt battery bank, whether used in commercial applications, an off-grid home or battery back up for a grid-tied system. With a cycle life of up to 6500 cycles to a 50% Depth Of Discharge (DOD), this battery will still have well over half of it's capacity left. This may be the last battery you need to buy! (Cycle life may vary based on application and operation).

Backwoods Solar is proud to be the exclusive distributor of the new Eclipse LiFePo4 battery. Eclipse LiFePo4 batteries offer longer life span, greater depth of discharge and decreased size and weight over conventional lead acid batteries. The sophisticated Eclipse Battery Management System (BMS) provides active cell management for impressive discharge and recharge efficiency. Eclipse LiFePo4 batteries are sealed so out-gassing is eliminated; no active venting is needed. There is no need to maintain water levels or take hydrometer readings. Ease of installation and operation make the Eclipse LiFePo4 battery as close to a zero maintenance lithium battery that we have come across.

• Nominal Voltage - 51.2V
• Nominal Capacity - 300Ah

• Discharge Current - Recommend 100A ; Max.200A ; Peak 210A (5 sec)

• Charge Current - Recommend 40A ; Max. 100A

• UL 1973 Listed (check your local electrical codes for UL requirements)

• Operating Temperatures - Charge 32 ~ 113°F / Discharge 14 ~ 131°F

• Storage Temperature -  14 ~ 113°F

• Cycle Life - Up to 6500 cycles at 50% DOD, +/- 80% battery capacity remaining
• Size - 27.17" x 23.23" x 10.16" (optional tray with casters adds 5" to height)
• Weight - 260 lbs (+ 34.39 lbs for optional tray)

Warranty – 10 year (3 year full replacement, additional 7 years pro rated)
