PLEASE NOTE: Due to this item’s size/weight it cannot ship UPS or USPS and must ship via truck freight. Backwoods Solar works with numerous shipping companies to get the best rate possible for you but it takes some research on our part. The shipping rate shown when you check out is only an estimate. Once you place your order, we will find the best rate and call you with the total within 1 business day. We will not charge your card for any part of your order until after we have talked with you to confirm the final price.
New display and closed loop communications!
The Eclipse 24V 200Ah LiFePo4 is a great “drop-in” replacement for your 24 volt battery bank used in an off-grid home or battery based backup for grid-tie systems. With a cycle life of up to ≥6000 cycles to a 50% Depth Of Discharge (DOD), this battery will still have well over half of it’s capacity left. This may be the last battery you need to buy! (Cycle life may vary based application and operation).

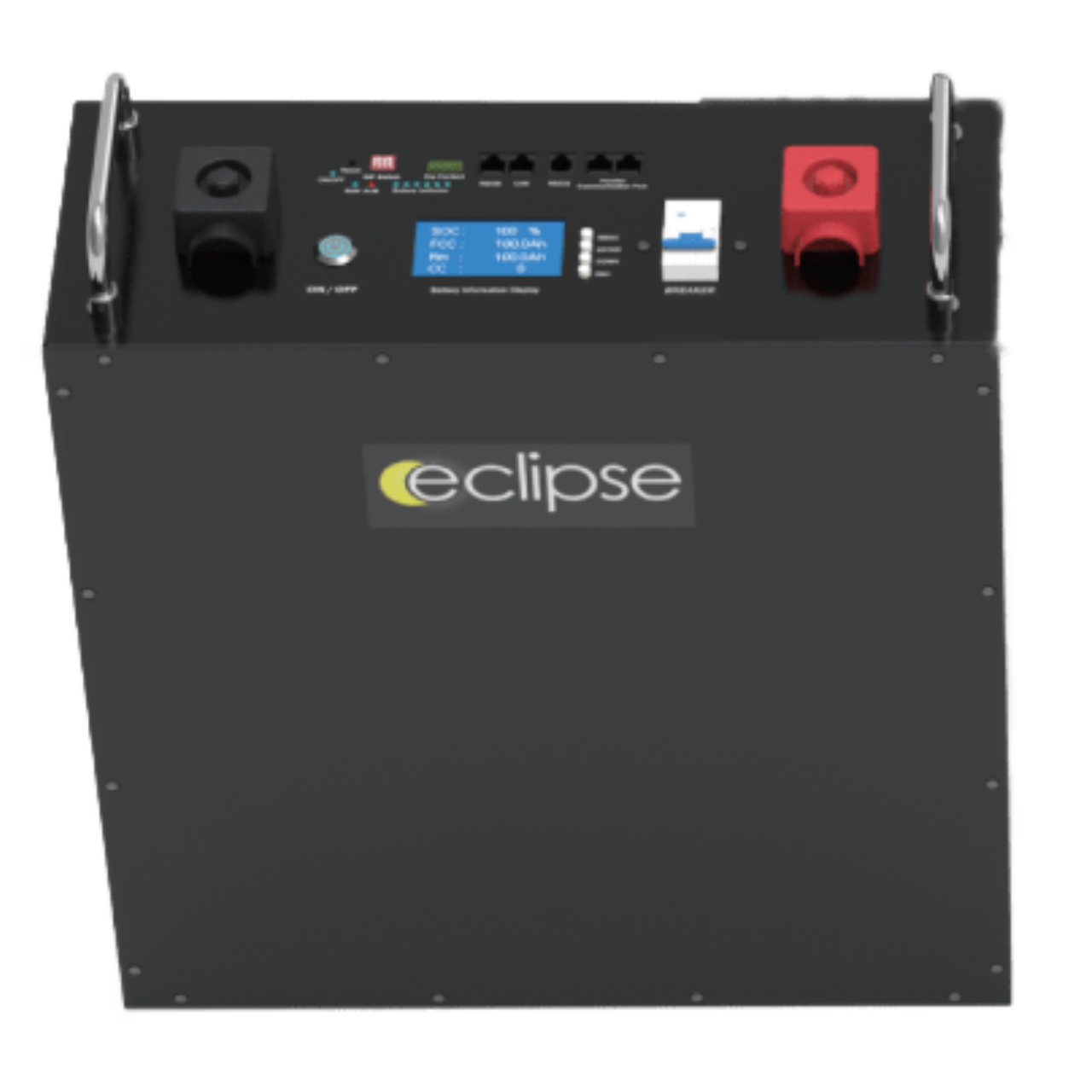

New for version 6: New updated display that provides a wealth of information about the performance and health of your battery. RS485/Canbus communications allow Eclipse batteries to integrate with your inverter system for more efficient charging and discharging. A 125A disconnect breaker is now standard on the 24V-48V Eclipse battery line for safe and easy maintenance.
Backwoods Solar is proud to be the exclusive distributor of the new Eclipse LiFePo4 battery. Eclipse LiFePo4 batteries offer longer life span, greater depth of discharge and decreased size and weight over conventional lead acid batteries. The sophisticated Eclipse Battery Management System (BMS) provides active cell management for impressive discharge and recharge efficiency. Eclipse LiFePo4 batteries are sealed so out-gassing is eliminated; no active venting is needed. There is no need to maintain water levels or take hydrometer readings. Ease of installation and operation make the Eclipse LiFePo4 battery as close to a zero maintenance lithium battery that we have come across.
Nominal Voltage – 24V
Nominal Capacity – 200Ah
Max Continuous Discharge Current – 200A
Max Continuous Charge Current – 100A
Operating Temperatures – Charge 32 ~ 113°F / Discharge 14 ~ 131°F
Storage Temperature – 14 ~ 113°F
Cycle Life – Up to 7000 cycles at 50% DOD, +/- 80% battery capacity remaining

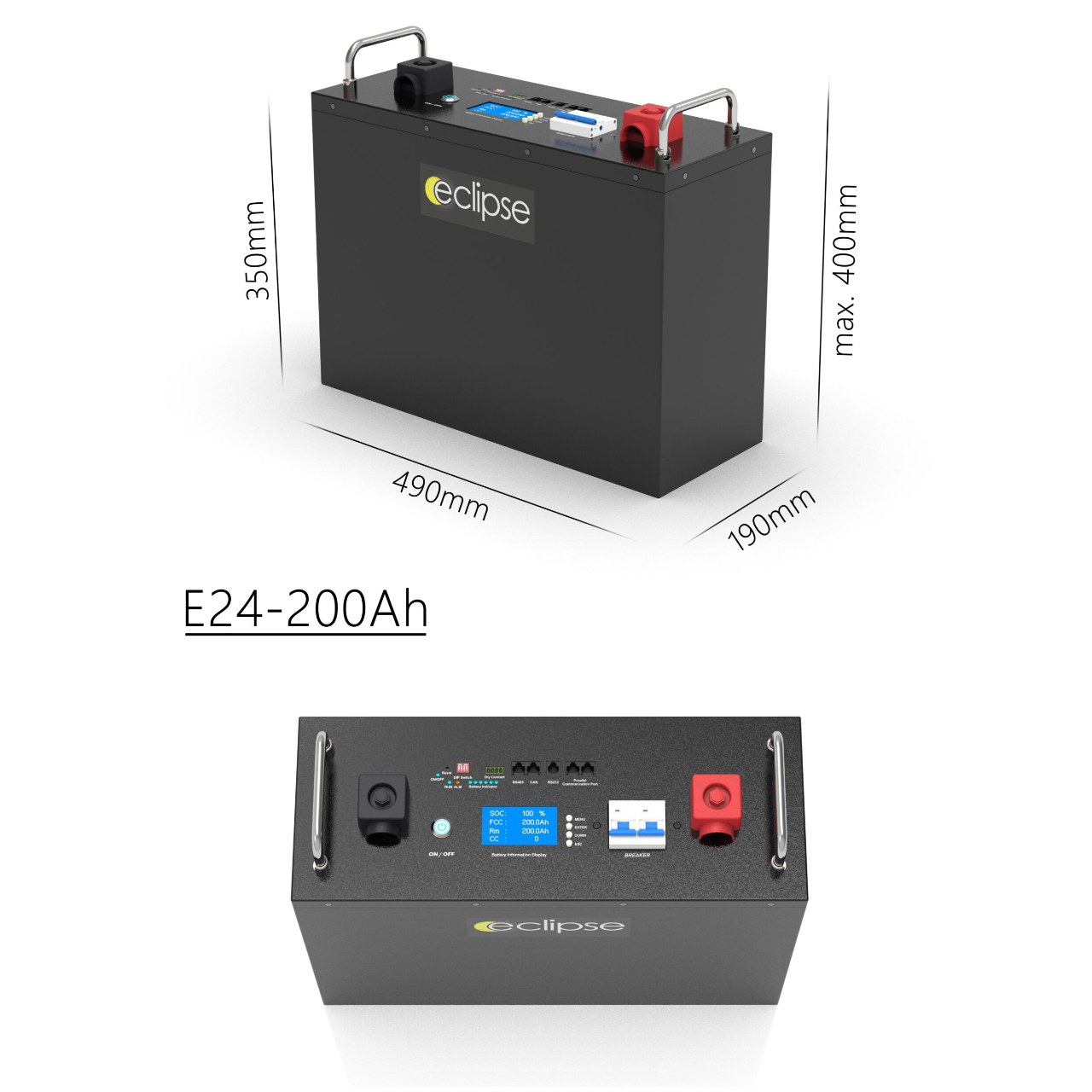

Size – 21.375″ W x 14.2″ H x 7.5″ D (The User Manual dimensions are incorrect)
Weight – 97 lbs
Warranty – 10 year (3 year full replacement, additional 7 years pro rated)
