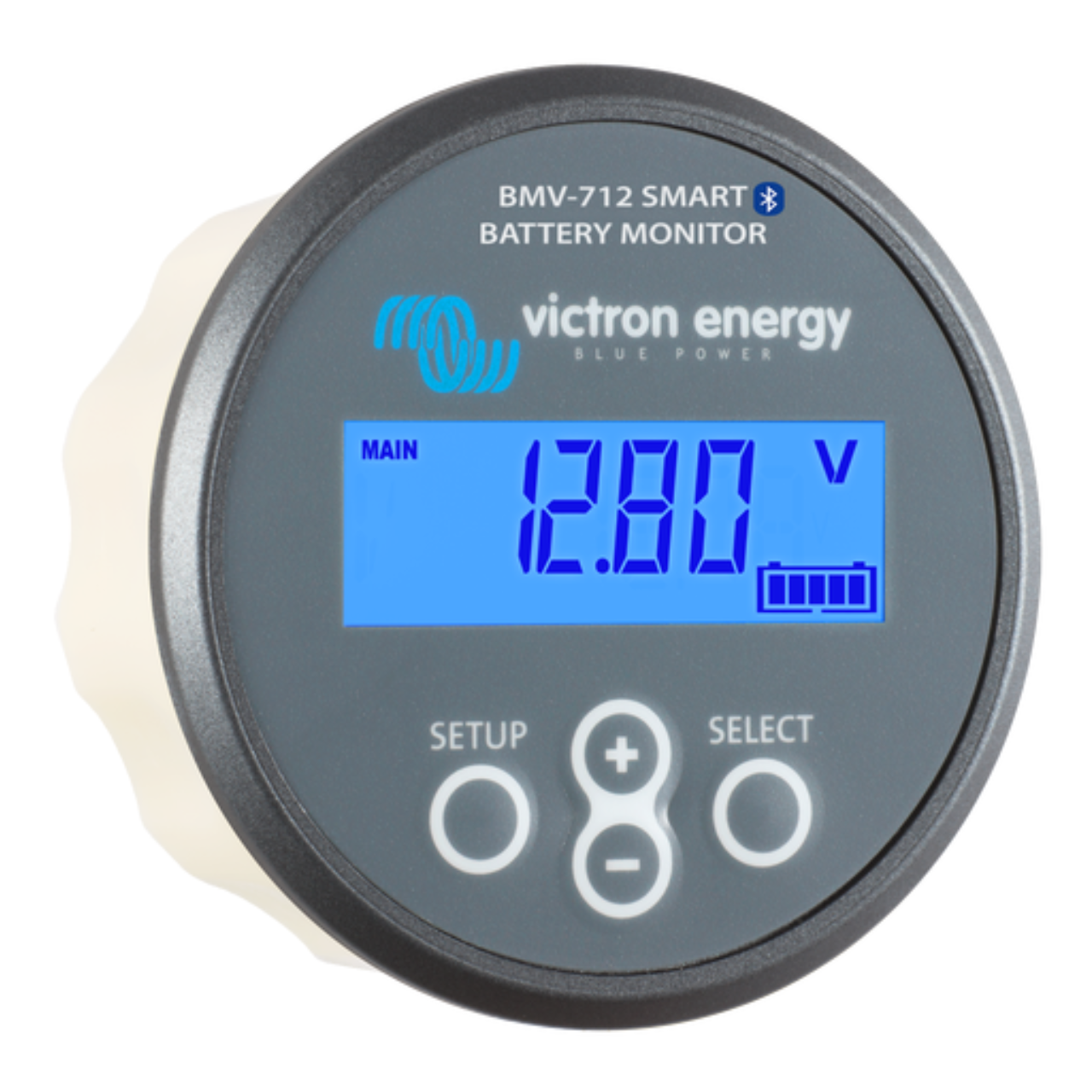

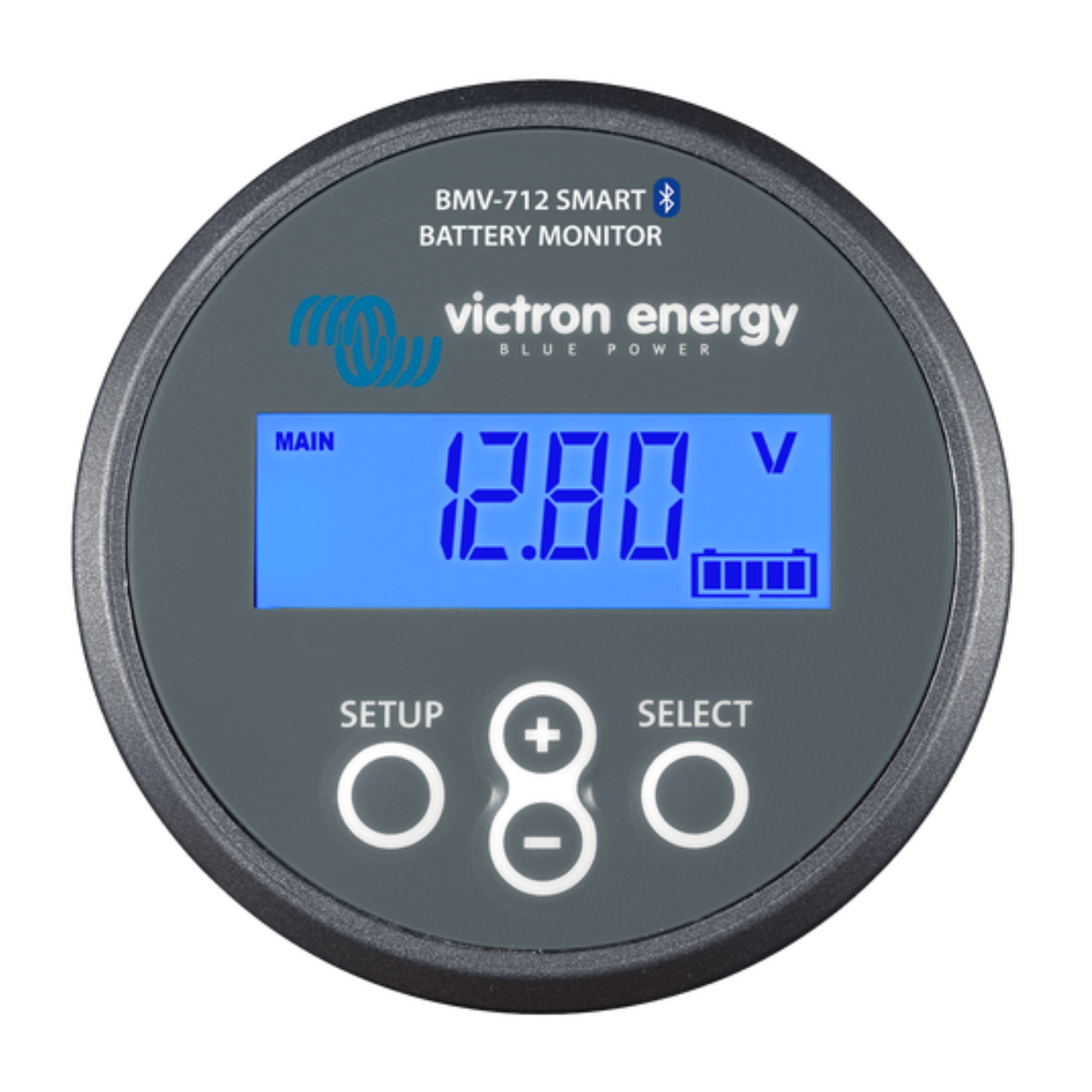

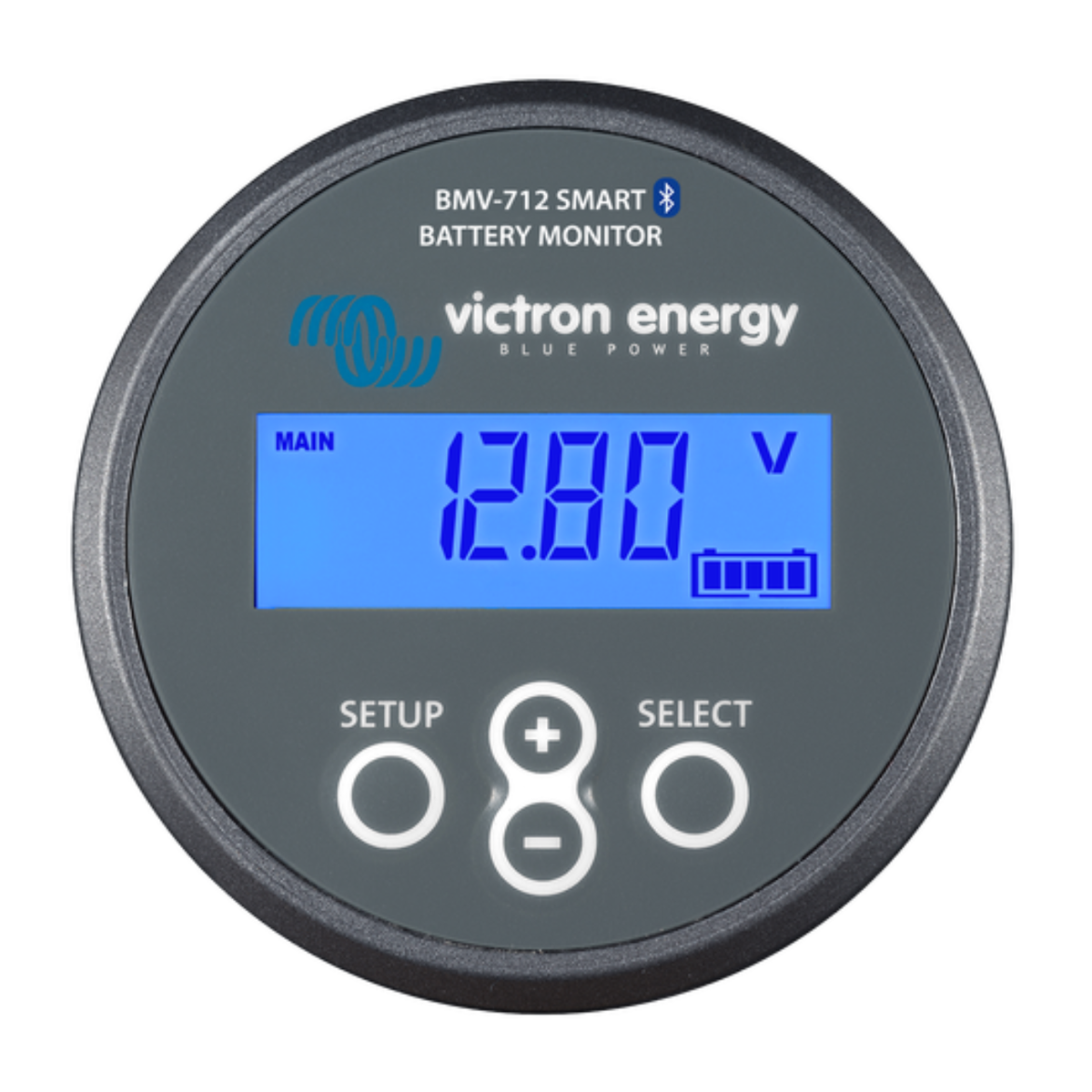

Victron Energy Battery Monitor BMV-712 Smart

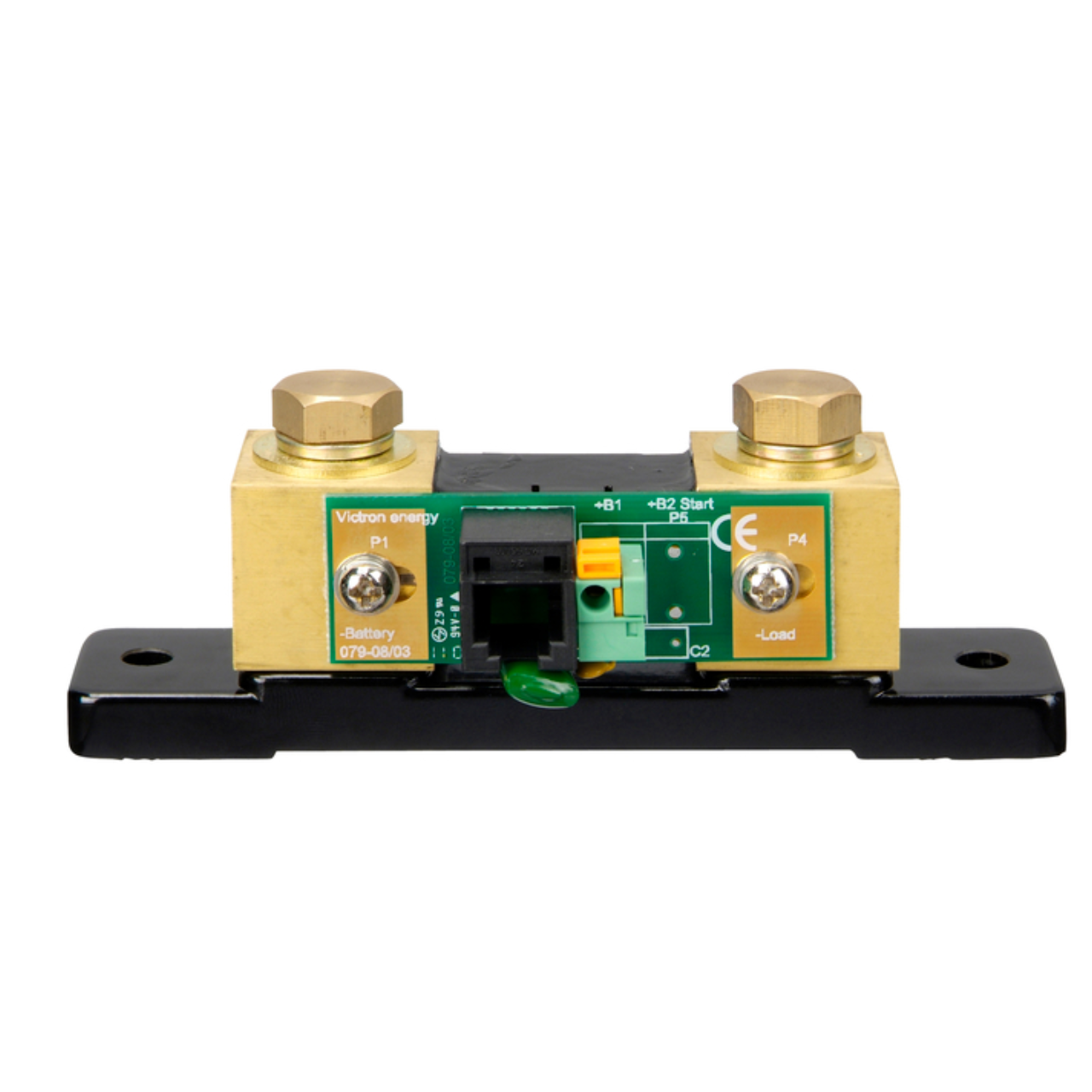

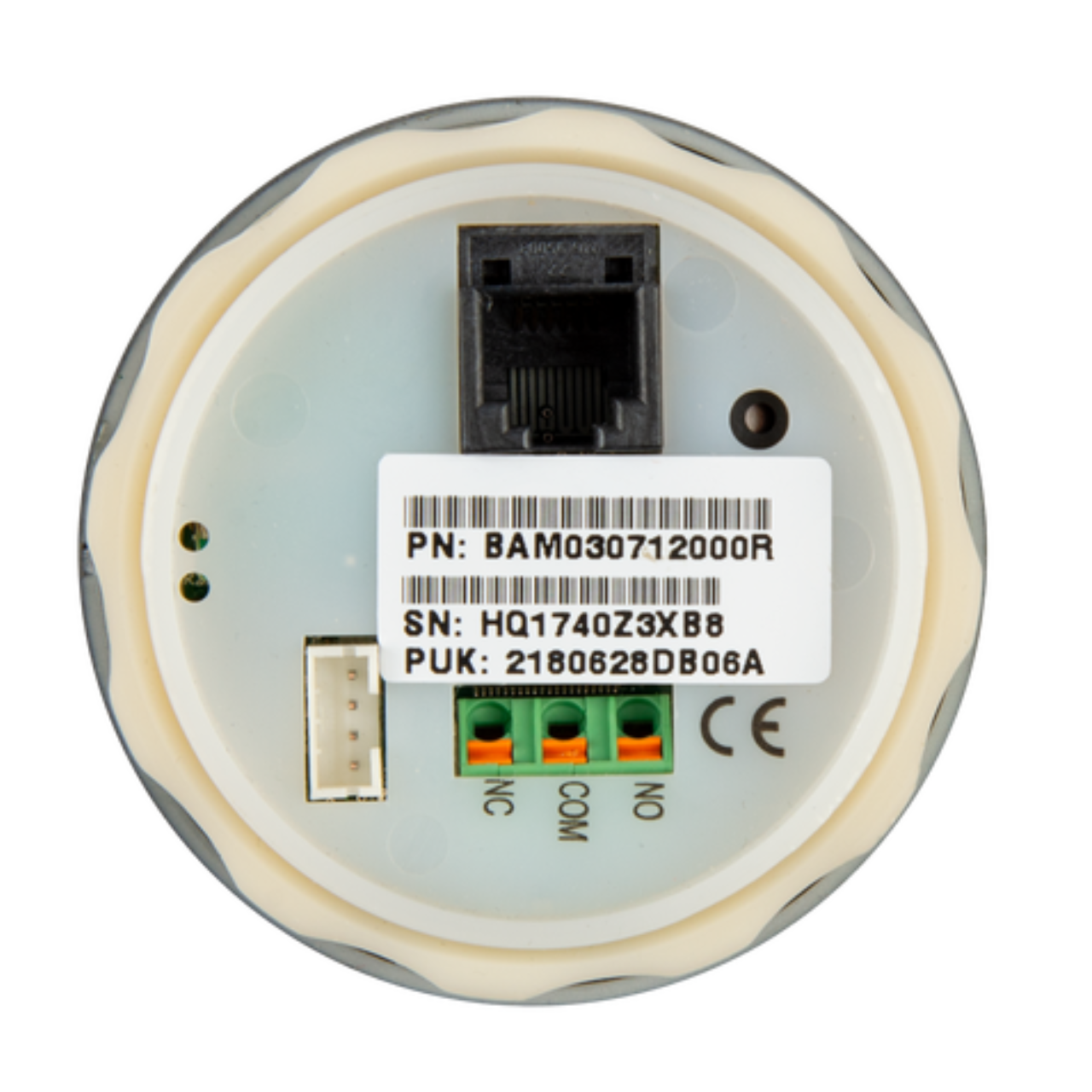

Victron Energy Battery Monitor BMV-712 Smart With Bluetooth built-in, the BMV Smart is ready for the Internet of Things (IoT) era. With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance. All electrical connections are to the quick connect PCB on the current shunt (included). The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ 12 cable (10 m) and battery cable with fuse (2 m); no other components needed. Also included are a separate front bezel for a square or round display appearance, a securing ring for rear mounting and screws for front mounting.

Victron Energy is one of the top manufacturers of renewable energy systems, and enjoys an unrivalled reputation for technical innovation, reliability and quality. They have served the off-grid, industrial and vehicle markets as well as both the commercial and leisure marine sectors for over 45 years.

Other features - Battery voltage, current, power, ampere-hours consumed and state of charge - Remaining time at the current rate of discharge - Programmable visual and audible alarm - Programmable relay, to turn off non critical loads or to run a generator when needed - 500 Amp quick connect shunt and connection kit - Shunt selection capability up to 10.000 Amps - VE.Direct communication port - Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health - Wide input voltage range: 6,5 – 70V - High current measurement resolution: 10 mA (0,01A) - Additional input to measure voltage (of a second battery), temperature or midpoint voltage, and corresponding alarm and relay settings

Supply Voltage Range: 6.5-70VDC Current Draw, back light off: <1mA Battery Capacity: 1-9999Ah

Five year limited warranty.

Meter Diameter - 2" Shipping Weight -  3 Lbs Shipping dimensions - 2.7H" x 2.7W" x 4.2D"
