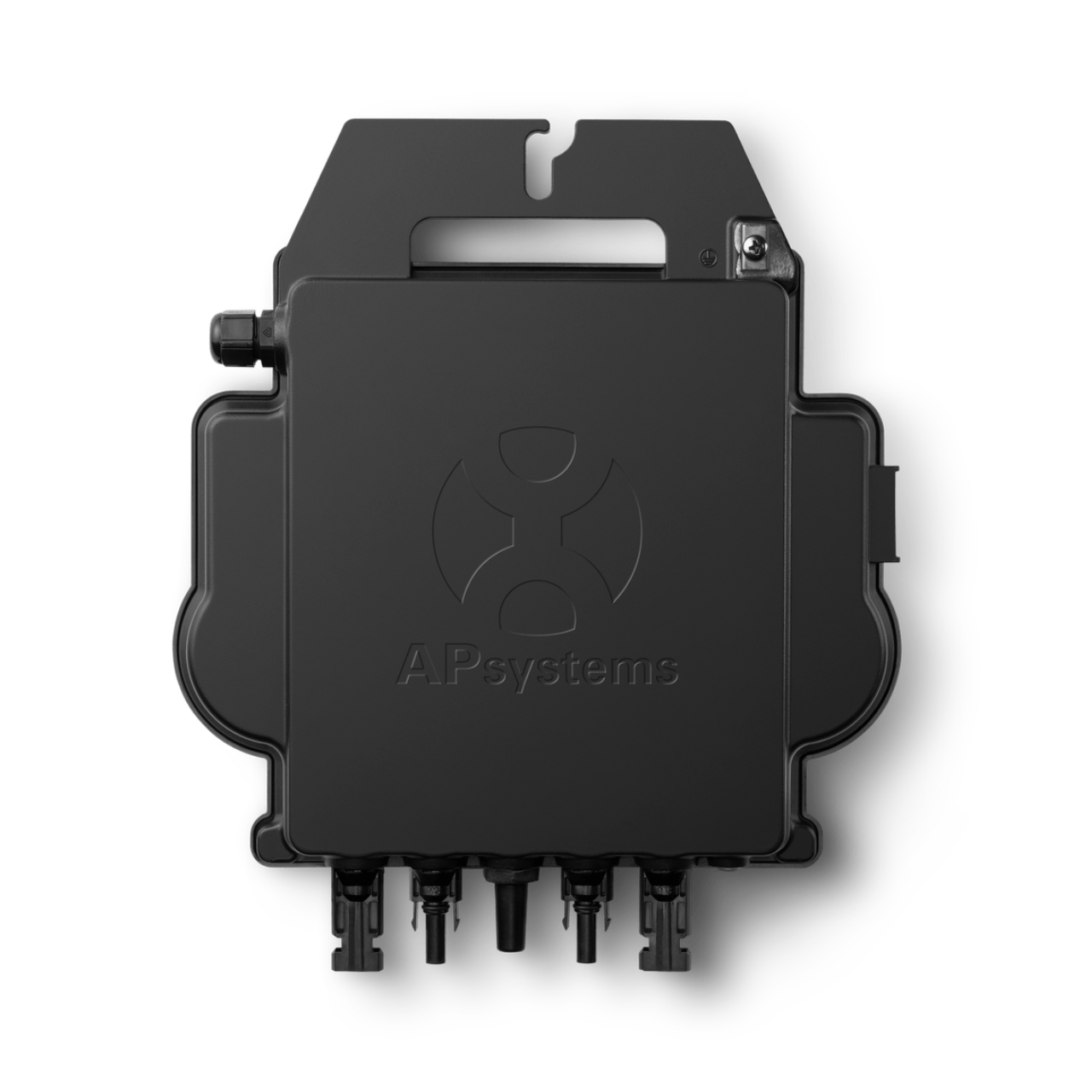

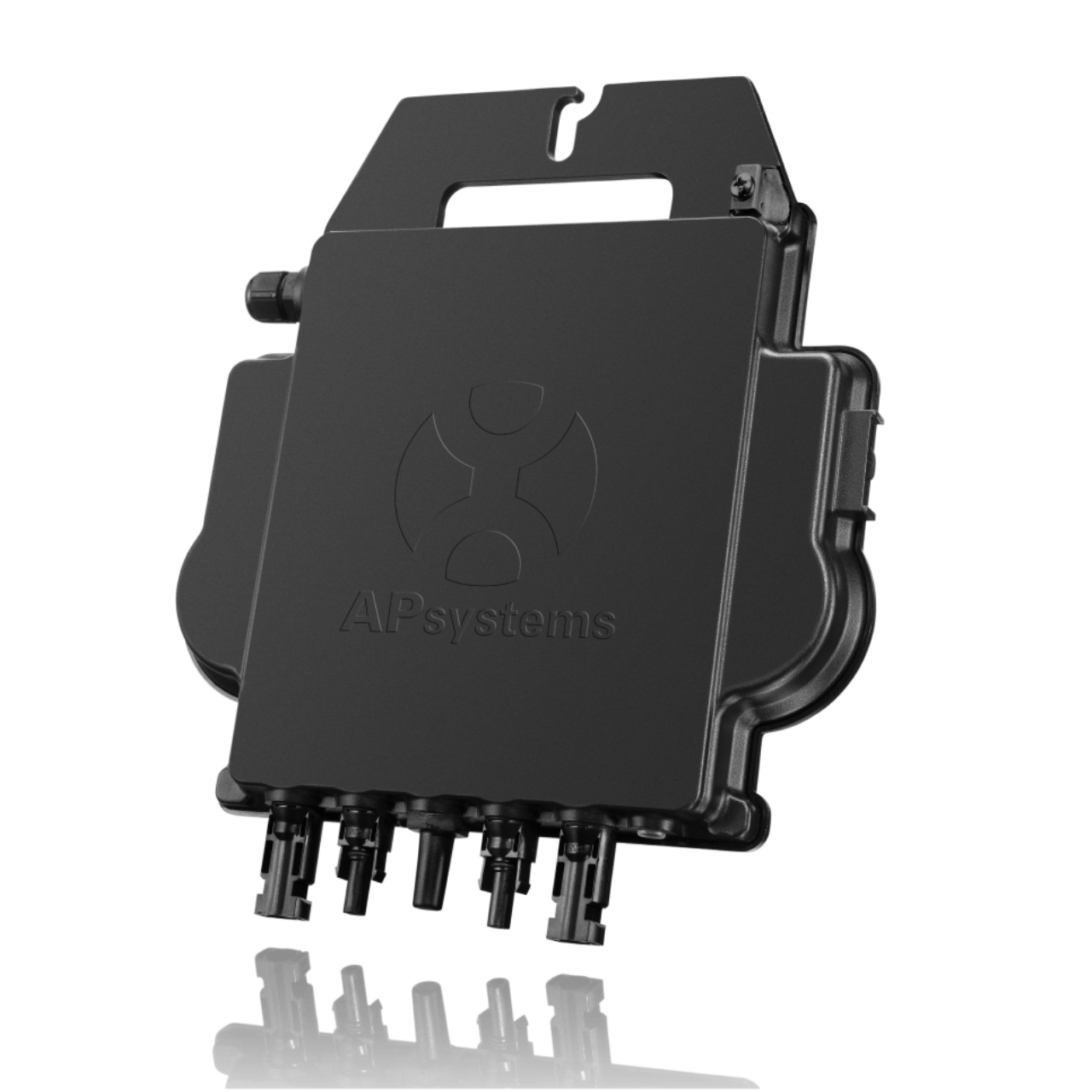

AP Systems 880 DS3 Series MicroInverter
Microinverters are used in grid-tie systems. They are mounted behind the solar modules on the rail system or on the frame itself. DC power is converted to AC power at the module and fed into a common branch circuit trunk cable which is then fed to the household utility panel. Converting power at the solar module allows for "per module" power management. If a single module in an array is shadowed or compromised, it will not affect the performance of other modules in the array; a distinct advantage over traditional string inverters.
The APSystems DS3 Series microinverter is their 3rd generation of dual-module, single-phase microinverters, with each unit being able to accommodate two modules (reducing cost and speeding install time). The DS3 product family represents the culmination of years of power conversion expertise and innovation in high-efficiency, high-density power conversion to maximize the peak performance of today’s high-capacity PV modules.
DS3 microinverters are reaching unprecedented power outputs of 640VA or 768VA or 880VA to adapt to today’s larger power modules. With 2 independent MPPT, encrypted ZigBee signals, the DS3-S (640W), DS3-L (768W) and DS3 (880W) benefit from an entirely new architecture and are fully backwards compatible with the QS1 and YC600 microinverters. Wireless communication reports operational data to the AP Systems Energy Communication Unit (ECU, sold separately) located in your home.

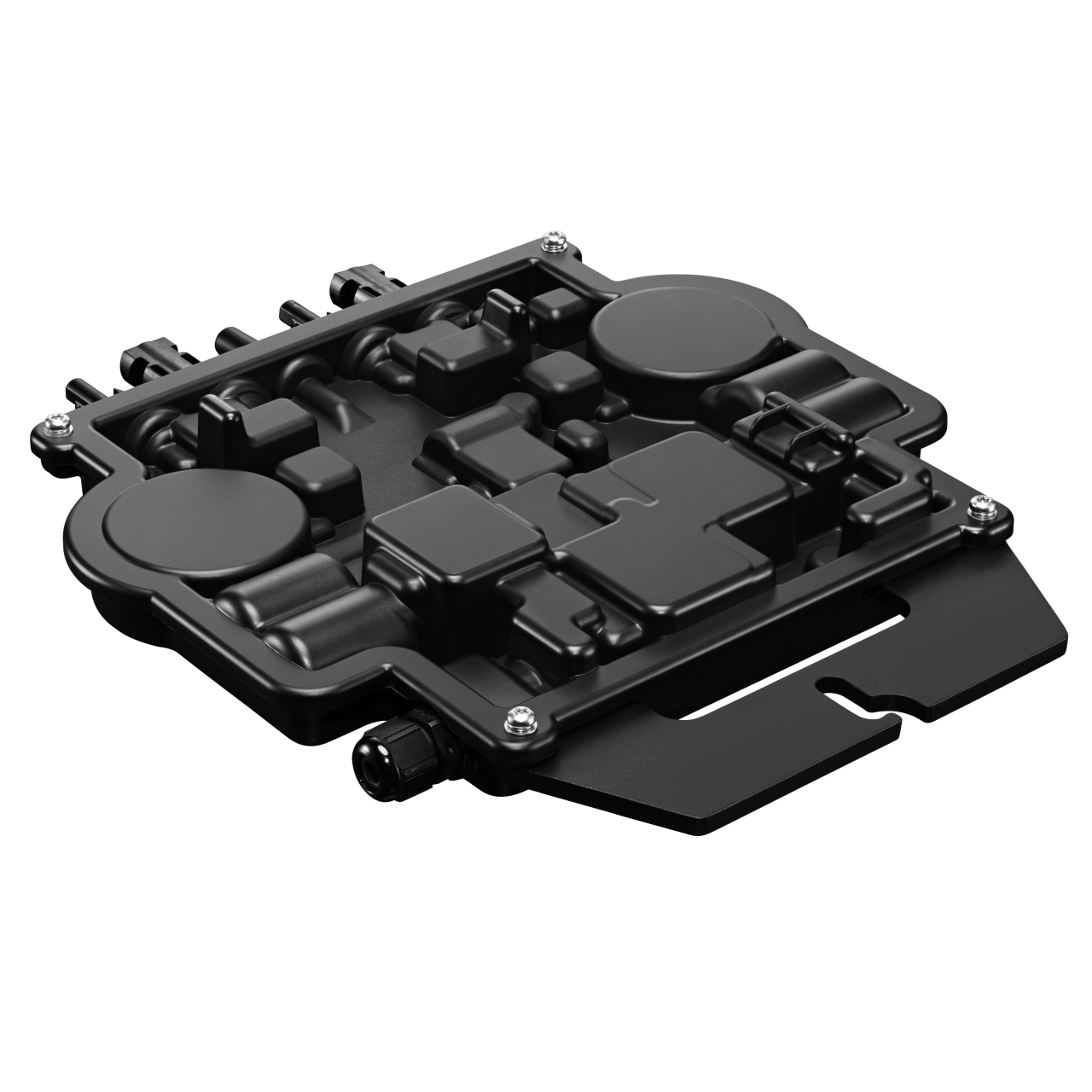

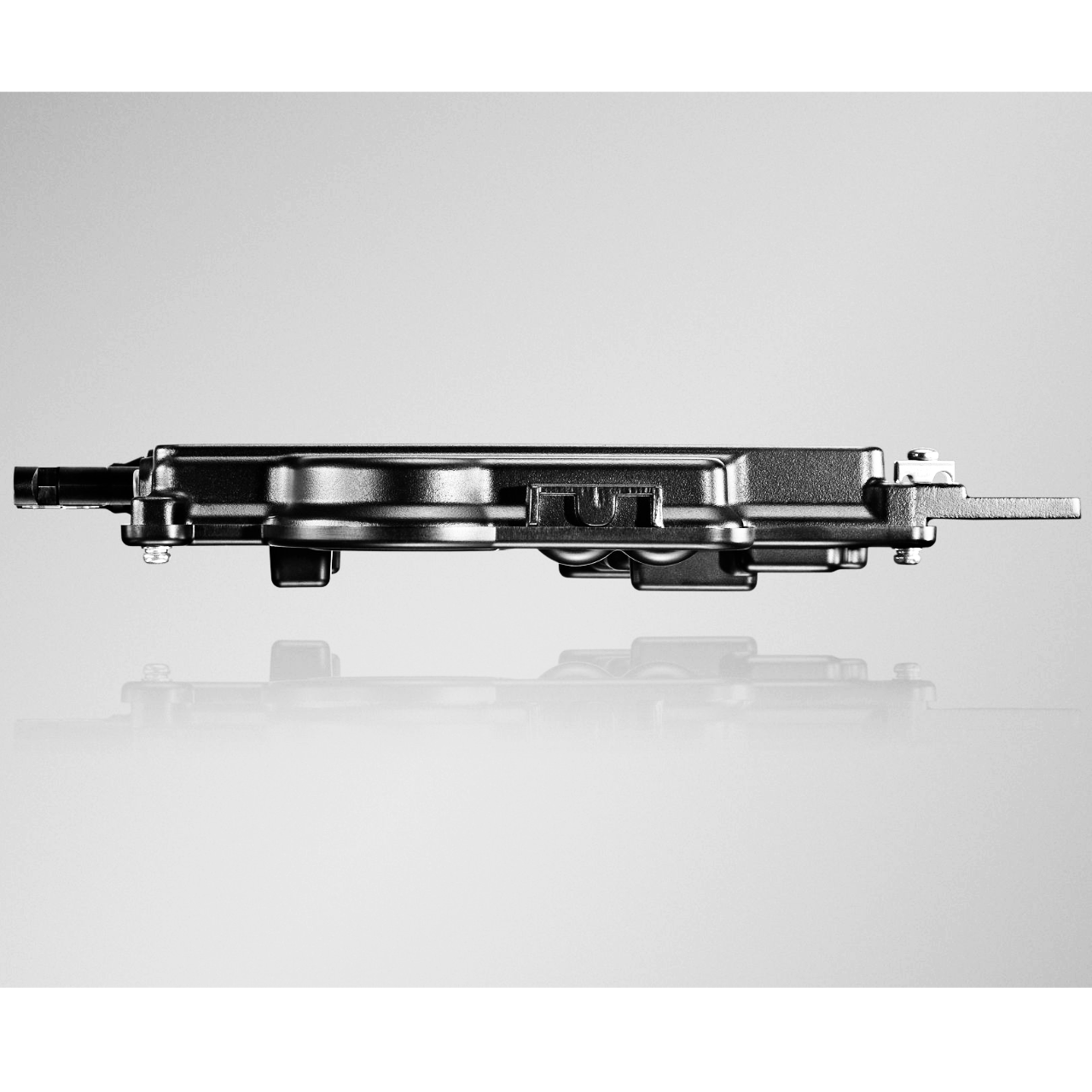

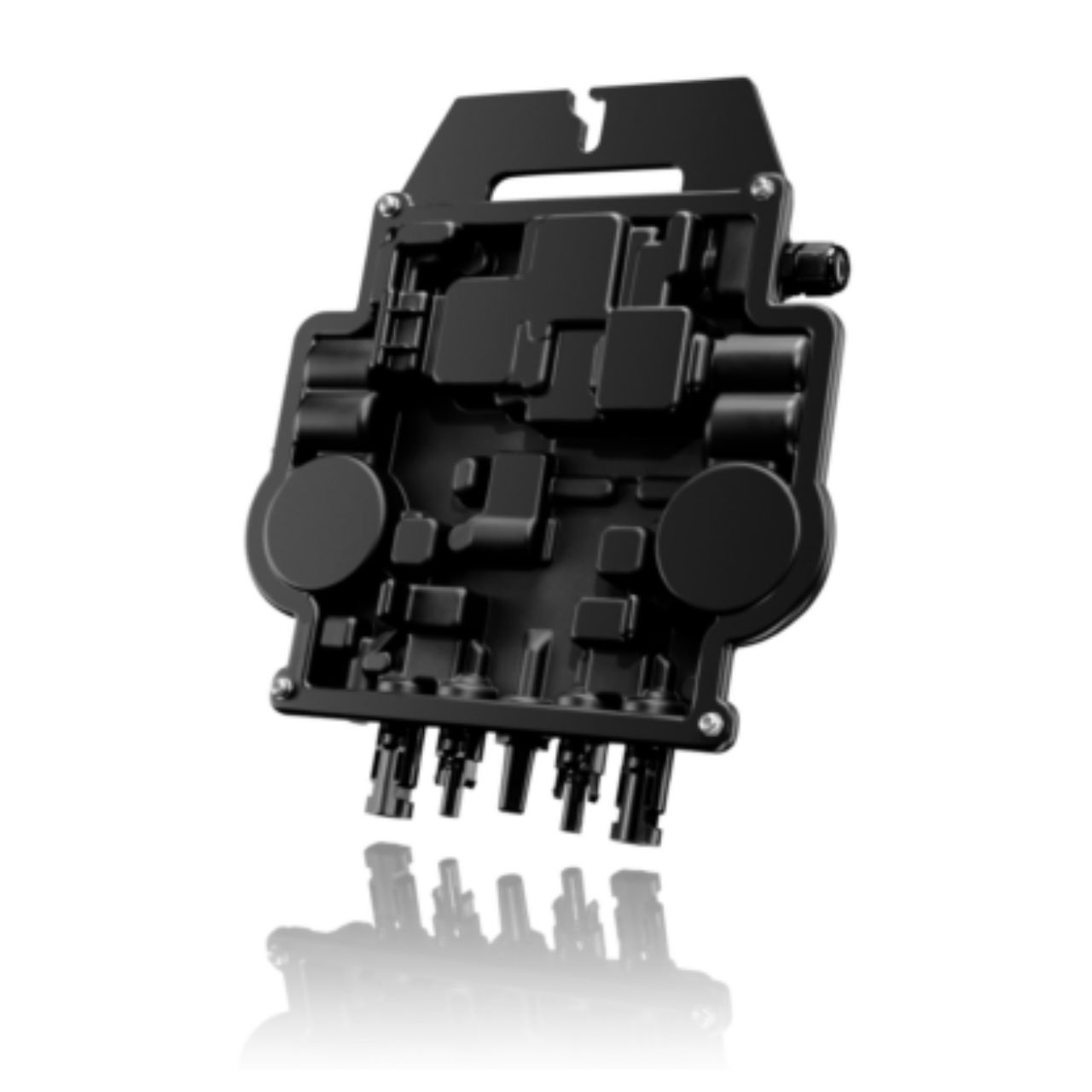

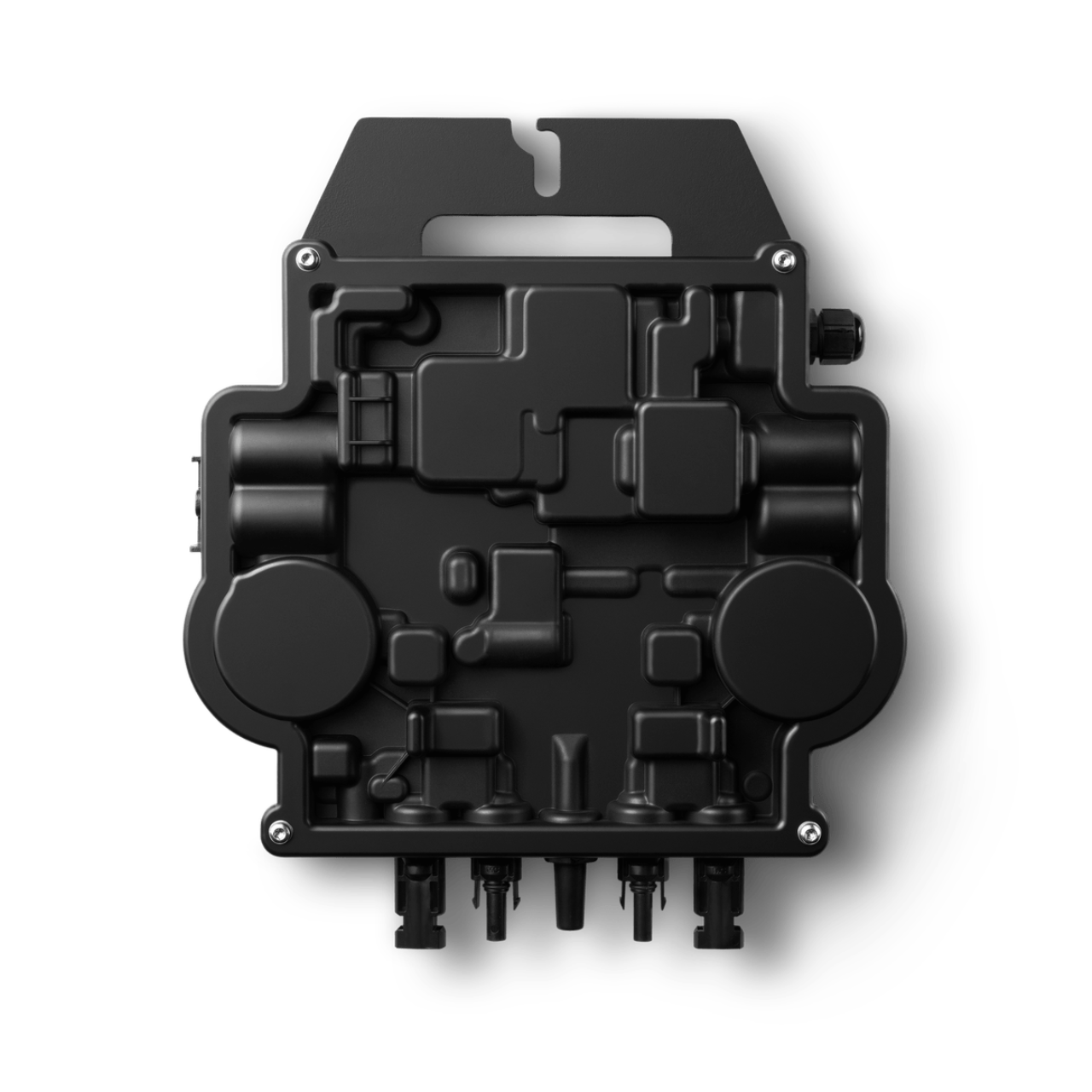

An innovative and compact design makes the product lighter while maximizing power production, and silicone-encapsulated components reduce stress on electronics, facilitate thermal dissipation, and enhance weatherproofing. Reliability is significantly increased thanks to 20% fewer components than previous generations.
This Item: DS3 - 880.
- Nominal Output Voltage: 240VAC
- Operating Temperature Range: -40°F to 149°F
- UL Listed
- DS3 – 880VA output, ideal for PV modules up to 550W
Measures: 10.3" x 8.6" x 1.6"
Weight: 5.7 lbs.
APSystems DS3 microinverters meet NEC 2014/2017 690.12 Rapid Shutdown requirements and are compliant with CA Rule 21.
25 year warranty if system is connected to the internet through ECU (AP systems remote monitoring).
2 year warranty if system is offline (not connected to the internet through an ECU).
